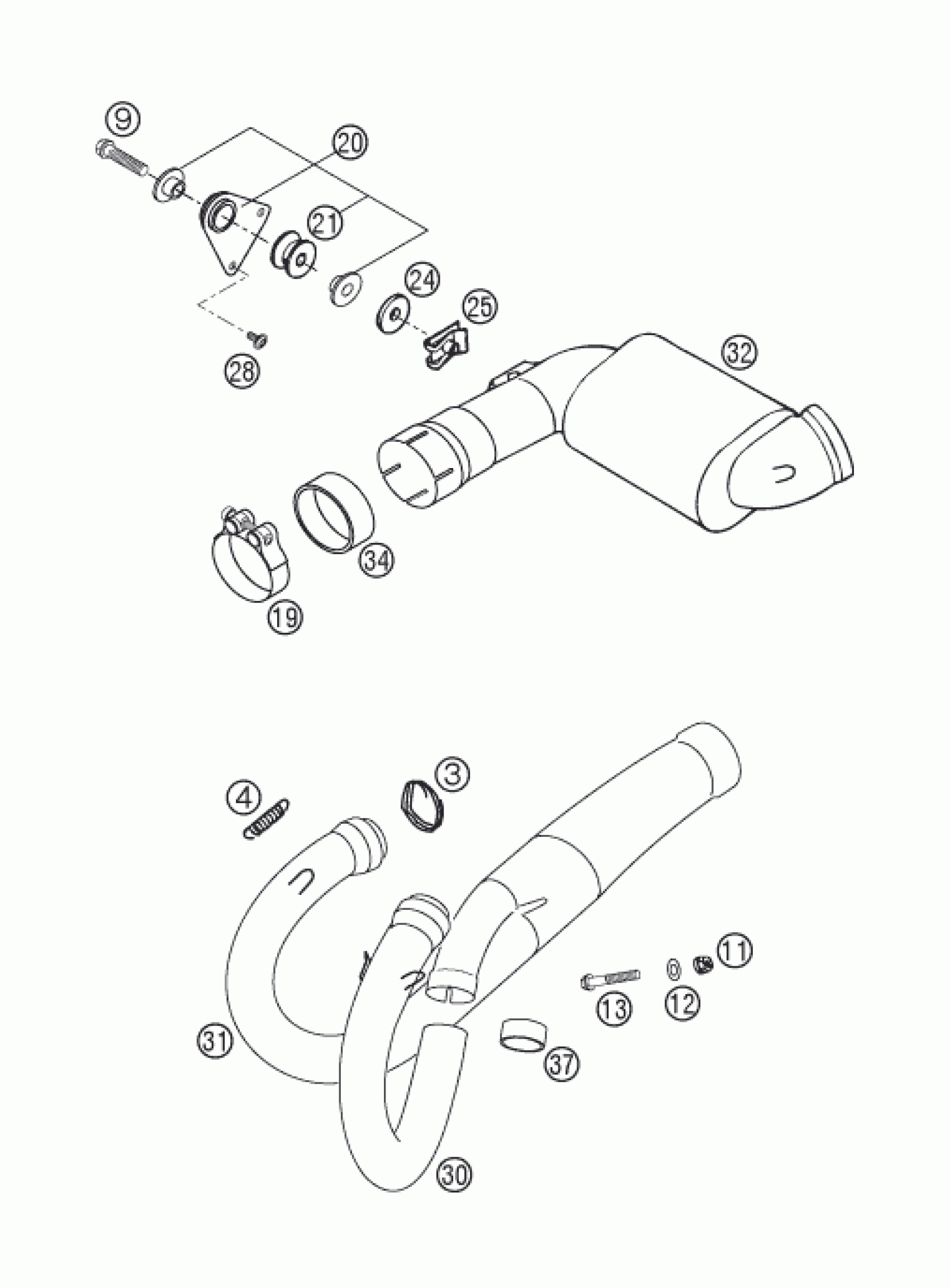

KTM 400 LS-E/ MIL 2005 EXHAUST SYSTEM Diagram

#

Description
Price

3

CERAMIC LINE 1 METER

58305053001

$6.72

4

RETURN SPRING L=38 MM

54309036000

$5.23

9

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

11

SELF LOCKING NUT M 6 COPPER

51010086000

$1.57

12

WASHER DIN0125-A 6,4

0125060003

$1.49

13

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

19

PRE SILENCER CLAMP D=53MM '99

58705058000

$26.34

20

BRACKET-PRE SILENCER CPL.BLACK

5830506504430

$25.05

21

damp. component silicone grey

54305068100

$8.31

24

INSOLATE WASHER 8,5X28X3

51005067000

$2.05

25

RANGE CHANGE METAL NUT M8

54603048000

$4.11

28

BHCS ISO 7380 M6X18

0738060181

$2.05

34

Graphite ring 45X50X25

58405005001

$16.92

37

GRAPHIT RING 28X32X20

57705005000

$9.58

30

EXHAUST PIPE L/S BLACK '97

5770500710030

Unavailable

31

EXHAUST PIPE R/S BLACK '97

5770500810030

Unavailable

32

PRE-SILENCER ''KTM V2'' BLACK

5840505030030

Unavailable
