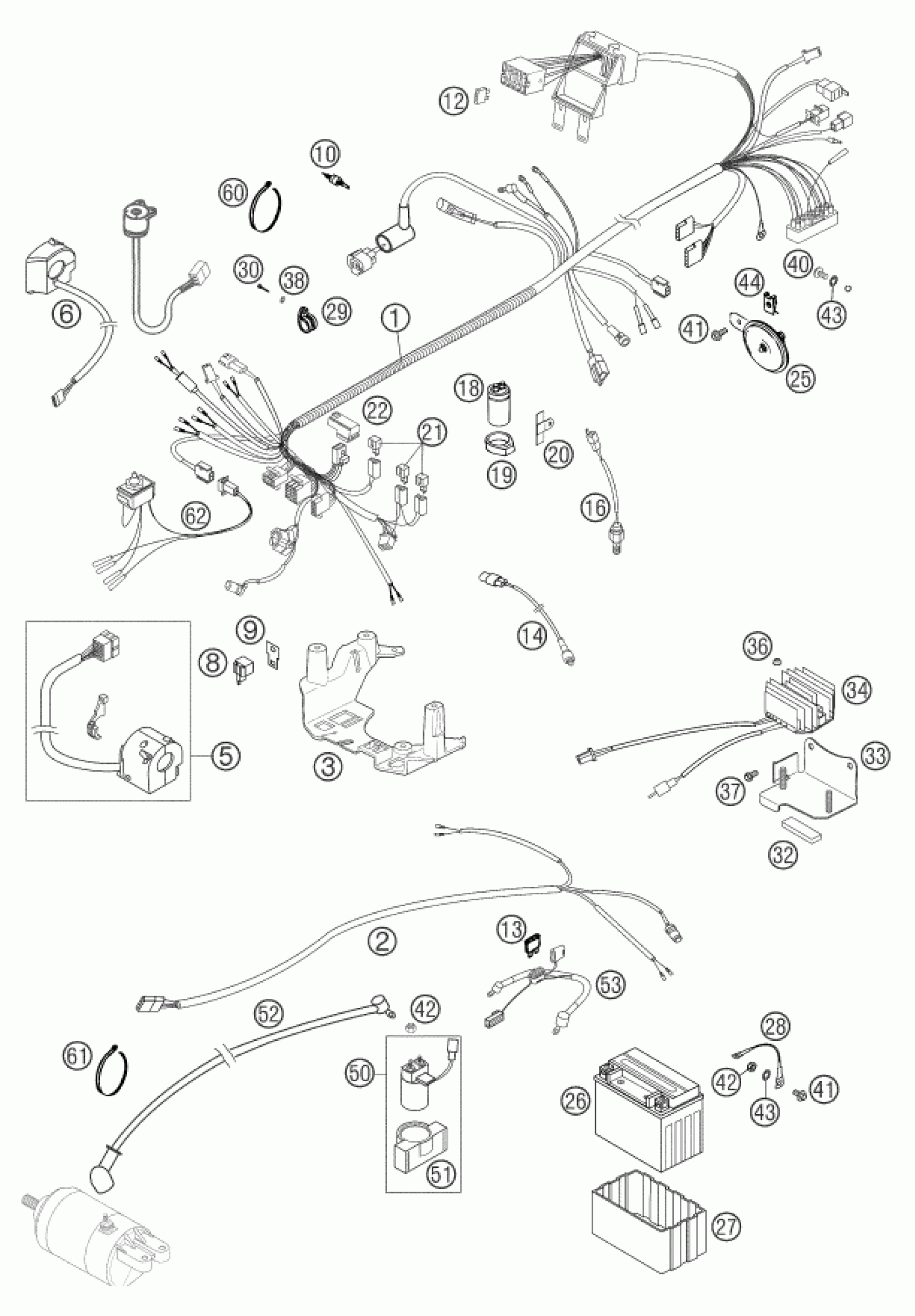

KTM 400 LS-E/ MIL 04 <2004 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS LC4 MIL 04

57911175200

Unavailable

2

WIRING HARNESS REAR 03

58411176300

$12.54

3

BRACKET FOR PLUGS LC4 '98

58411083100

$5.68

5

HEAD LIGHT SWITCH AD LC4 02

58411070100

$82.52

6

START-STOP SWITCH AD LC4 02

58411074100

$76.47

8

FLASHER UNIT 97

44611207200

$49.83

9

BRACKET FOR FLASHER RELAY

58211031100

$5.70

10

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

12

Plug-in fuse, big 10A

58011109110

$2.05

13

Plug-in fuse, big 20A

58011109120

$1.49

14

CLUTCH SWITCH 03

58411049100

$54.32

16

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

18

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

19

CAPACITOR BRACKET

54511048000

$4.33

20

BRACKET FOR CAPACITOR

54611448000

Unavailable

21

DIODE S3H-15 97

58411096100

$9.81

22

STARTER RELAY '96

58411057000

$22.82

25

DC HORN L.E.B. 03

50311060100

$32.44

26

BATTERY 12V/11AH 03

60011053000

$366.89

27

BATTERY COVER 96

58411053050

$22.65

28

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

29

CLAMP RSGU 15/12

49007439000

$5.23

30

SHEET MET.SCR.DIN7981- 4,8X13

0981480133

Unavailable

32

METAMOLL FOR REARLIGHT 99

58414040051

$1.49

33

BATTERY BRACKET MIL. 04

57911055100

Unavailable

34

VOLT.REGULATOR-RECTIFIER 12V

58411034100

$214.48

36

Self locking nut M6 - 10

56509064100

$2.05

37

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

38

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

40

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

41

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

42

Self lock. nut DIN985-M6-A2

0985060003

$2.05

43

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

44

clip nut M6

54603048100

$4.11

50

STARTER RELAY WITH HOLD.RUBBER

58411058000

$69.18

51

HOLD. RUBBER FOR STARTRELAY

58411058050

Unavailable

52

STARTERCABLE 700 MM '97

58411059100

$23.65

53

BATTERY CABLE MIL. 04

57911059000

Unavailable

60

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

60

Cable tie 200/4.6mm black

44011076200

Unavailable

61

CABLE TIE 100/2,5MM BLACK

44011076100

$1.49

62

WIRING HARNESS F. HANDLE HEAT.

57911045000

Unavailable
