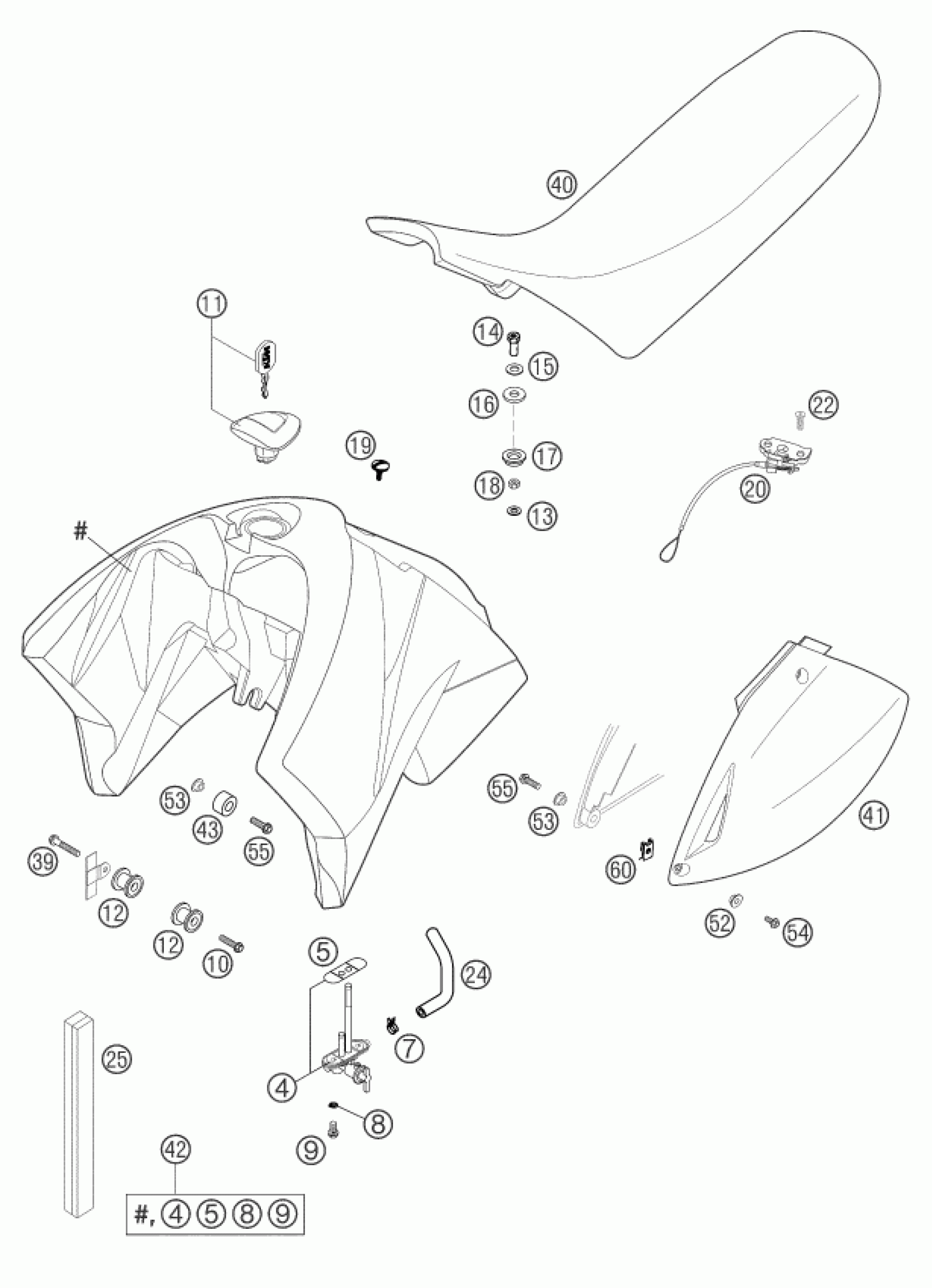

KTM 400 LS-E/ MIL 04 <2004> TANK, SEAT Diagram

#

Description
Price

4

FUEL COCK CPL.MIKUNI CK-69 '96

51107004000

$69.37

5

GASKET FUEL COCK MIKUNI

58307106100

$6.82

7

CLAMP YDNAC 13,7MM 2000

58431082200

$2.05

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

9

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

10

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

11

TANK PLUG LC4 USA '99

58407008100

$112.94

12

TANK BUSHING CPL. 12 X 34 X 25

58307113250

$10.20

13

washer DIN 125 A -8.4

0125080003

$1.49

14

SPECIAL NUT M8

58307014000

$6.26

15

WASHER 10,5 X 21 X 3

31004001100

$2.05

16

INSOLATE WASHER 12X28X3

51005067100

$2.05

17

BUSHING FOR 18 LIT. TANK

58407013250

$5.83

18

Hexagon nut DIN934 M8

0934080003

$2.05

19

SCREW FOR SEAT M 6X13/8

58407011000

$4.11

20

SEAT LOCK MIL. 04

57907050000

Unavailable

22

FLAT HEAD SCREW DIN7991-M 6X25

0991060253

$1.49

24

FUEL HOSE FOR 18L. TANK 2000

58407016000

$5.05

25

FOAM RUBBER STRIP

58107011000

$5.63

39

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

40

SEAT BLACK MIL. 04

57907340100

Unavailable

41

SIDE COVER L/S LC4-E MIL 2001

5840804100060

Unavailable

41

SIDE COVER R/S LC4-E MIL 2001

5840804210060

Unavailable

42

FUEL TANK 18L BRONZE-GREEN

5840701323360

Unavailable

43

TANK ROLLER 12X26X12 '98

50307014000

$11.02

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

53

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

54

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

60

clip nut M6

54603048100

$4.11
