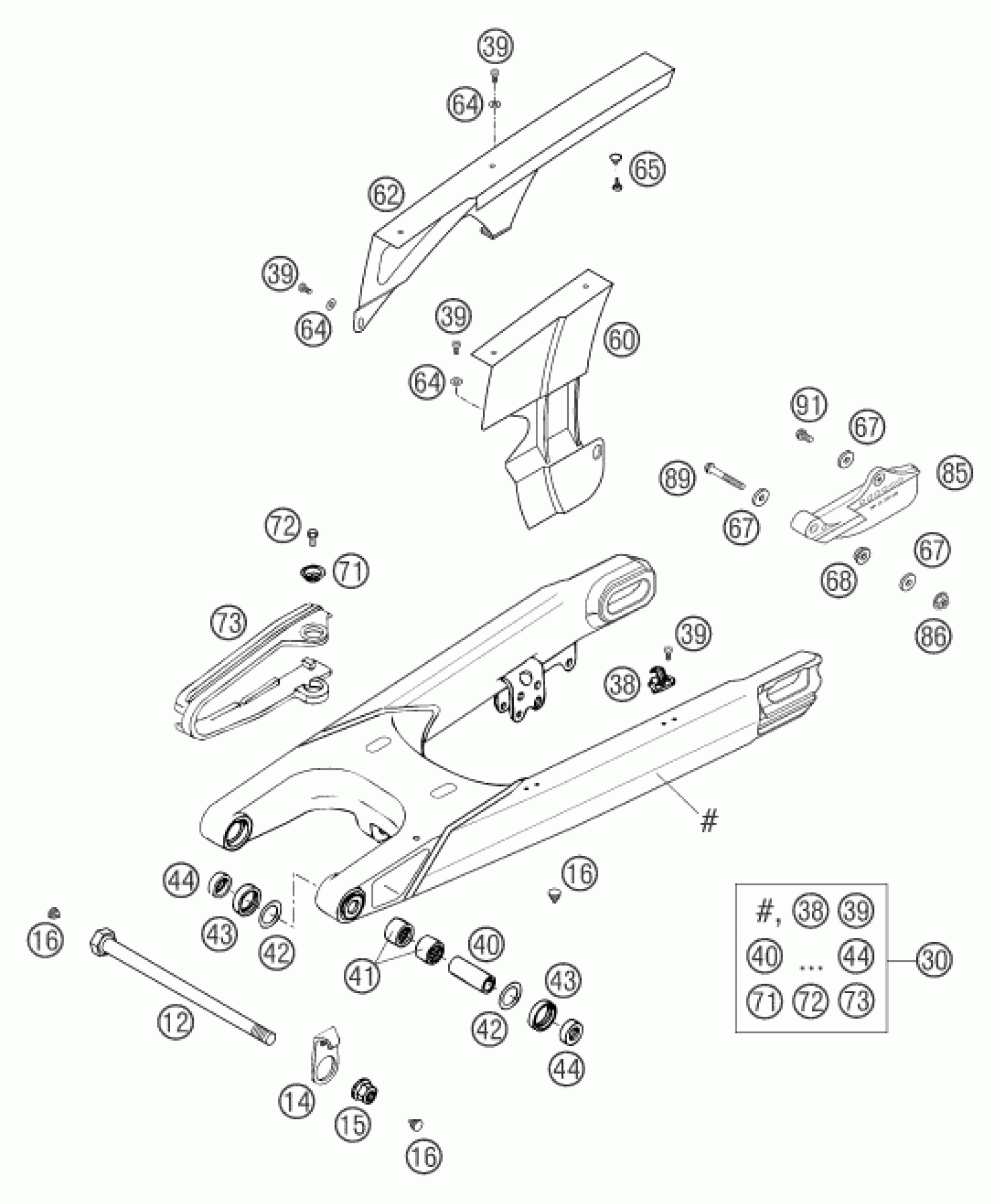

KTM 400 LS-E/ MIL 04 <2004> SWING ARM Diagram

#

Description
Price

12

SWINGARM BOLT KPL. L=253

54603014100

$37.03

14

BRAKE HOSE GUIDE '89

50230211000

$3.98

15

Self locking nut M14x1.5 WS19

54603015000

$5.51

16

PLASTIC CAP SFL10

54403135000

Unavailable

30

SWINGARM CPL. 04

5840403034430

Unavailable

38

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

39

SPECIAL SCREW M 5,0X10

0010050103

$2.05

40

BUSHING SLEEVE 15X20X38,75

50203081700

$17.20

41

NEEDLE BUSH HK2012V

59004031000

$15.51

42

WASHER 20X32X0,8

59004033100

$1.73

43

radial shaft seal 25x32x7

0760253270

$6.63

44

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

60

CHAINGUARD SMALL '96

58307060000

$24.02

62

CHAINGUARD LARGE 03

58307060250

$5.72

64

washer DIN 9021 A - 5.3

0021050003

$1.49

65

HOLLOW RIVET TWO PARTS

20012062055

$3.08

67

STEEL WASHER 6,2X18X2 DACROMET

50232050003

$1.49

68

COLLARED BUSH 6,2X10X20X6 03

58404060150

$2.61

71

BUCKET

72210079000

$3.00

72

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

73

CHAIN SLIDING GUARD DUKE'94

58307073000

$26.83

85

CHAIN GUIDE CPL. REAR LC4 '98

58404070000

$20.41

86

Self locking nut M6 - 10

56509064100

$2.05

89

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

91

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08
