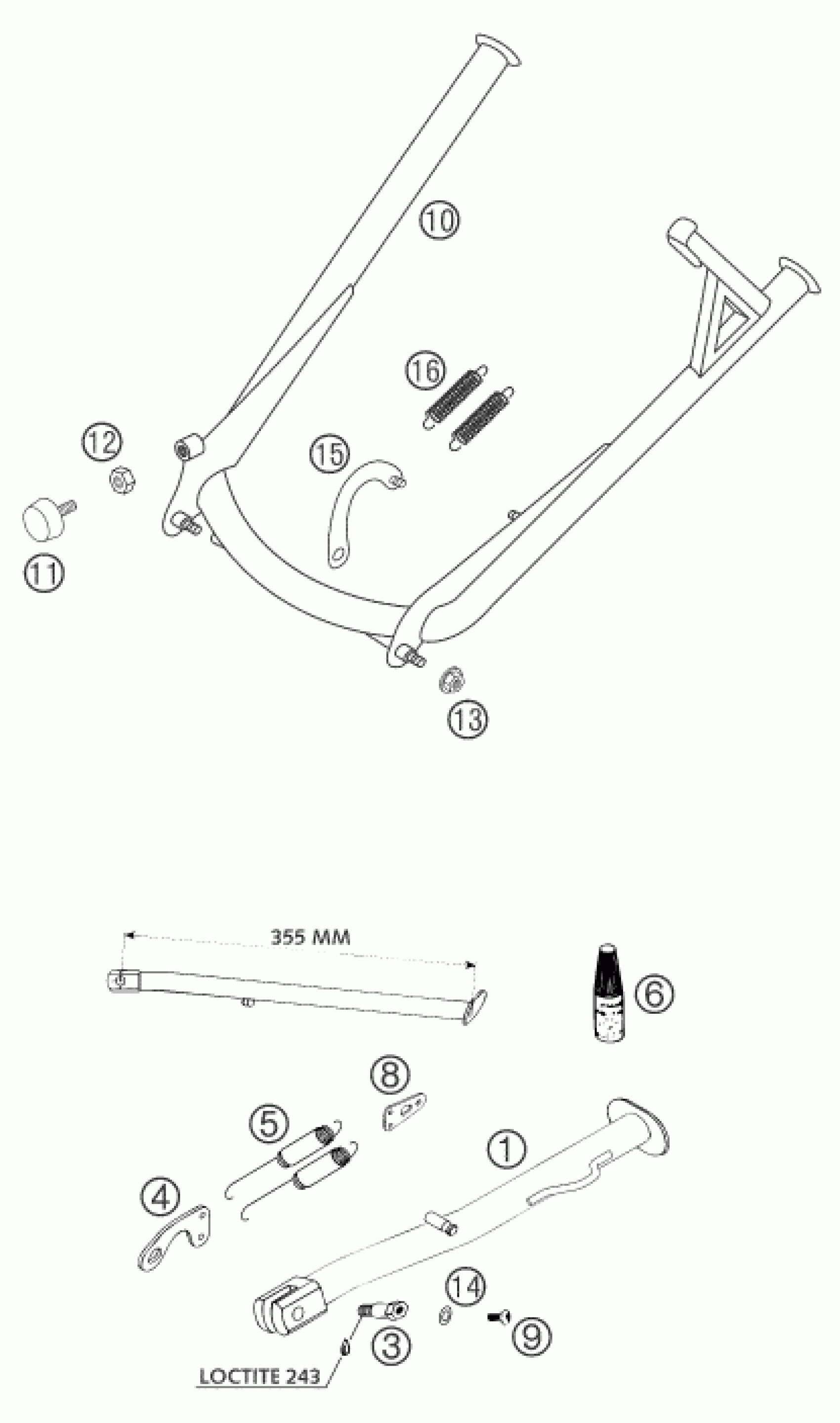

KTM 400 LS-E/ MIL 04 <2004> SIDE / CENTER STAND Diagram

#

Description

Price

1

SIDE STAND BLACK MIL. 04

57903023100

Unavailable

3

SCREW FOR SIDE STAND M10X26,7

58203027200

$21.50

4

SPRING SHACKLE TOP MILITARY'97

58403028000

Unavailable

5

SIDE ST.SPRING LO. W.RUBBER 03

58403030100

$9.44

6

LOCTITE 243 BLUE 5 ML

6899785

$28.04

8

SPRING SHACKLE BELOW F.SIDEST.

51103023055

Unavailable

9

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

10

CENTER STAND MIL. 04

5790301610030

Unavailable

11

STOP RUBBER M8

58303070000

$7.28

12

Hexagon nut DIN934 M8

0934080003

$2.05

13

Self locking nut M8 10.9

54310086200

$3.08

14

Washer DIN9021-A 6.4

0021060003

$2.05

15

SPRINGBOW BLACK '93

5830302700030

$16.43

16

STAND SPRING SHORT

10003021000

$9.44
