Description

Price

1

ROCKER ARM CPL. FORGED MIL. 04

58303080344

Unavailable

2

Needle bushing HK 2016 / 20x26

54603097000

$15.04

3

Bushing sleeve 15x20x48

54603081000

$24.77

4

Steel washer 15.2x19x0.1

54603090010

Unavailable

4

STEEL WASHER 15,2X19X0,2

54603090020

Unavailable

4

STEEL WASHER 15,2X19X0,3

54603090030

Unavailable

5

radial shaft seal 25x32x7

0760253270

$6.63

6

SPAC.F.SHAFT SEALRING 15X25X11

58303090000

$7.75

8

BUSHING FOR BEARING LINK '95

58303085100

$7.56

9

HINGE BEARING BLASTED

54203083050

$69.73

10

GREASING NIPPLE H3 M6 90DEGREE

55003099100

Unavailable

11

CAP WITH LOOP RED

53003099000

$2.05

15

PLASTIC CAP SFL10

54403135000

$2.05

20

LINKAGE ARM L=127MM '93

58303083000

$44.94

30

BOLT CPL.

54603182044

$45.06

32

Self locking nut M14x1.5 WS19

54603015000

$5.51

50

NEEDLE BEARING HK 1816

56503195100

$13.92

51

SHAFT SEAL RING 18X24X4

0760182442

$5.79

52

BUSHING BOLT CONNECTING BAR'96

58303084100

$45.62

54

SELF LOCK. NUT M12X1,75 WS=19

49103415000

$3.48

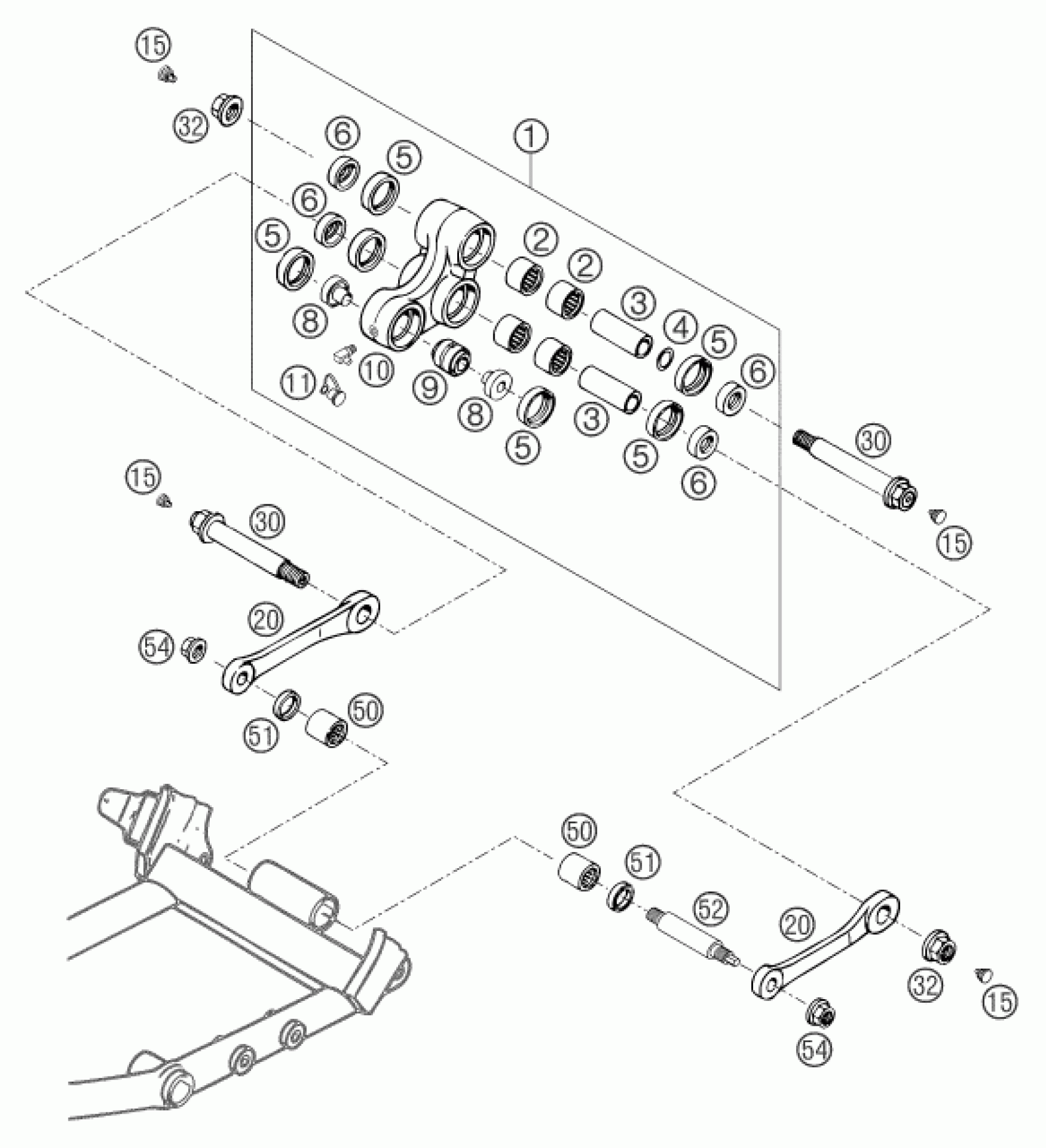

KTM 400 LS-E/ MIL 04 <2004> PRO LEVER LINKING Diagram

ROCKER ARM CPL. FORGED MIL. 04

Needle bushing HK 2016 / 20x26

Bushing sleeve 15x20x48

Steel washer 15.2x19x0.1

STEEL WASHER 15,2X19X0,2

STEEL WASHER 15,2X19X0,3

radial shaft seal 25x32x7

SPAC.F.SHAFT SEALRING 15X25X11

BUSHING FOR BEARING LINK '95

HINGE BEARING BLASTED

GREASING NIPPLE H3 M6 90DEGREE

CAP WITH LOOP RED

PLASTIC CAP SFL10

LINKAGE ARM L=127MM '93

BOLT CPL.

Self locking nut M14x1.5 WS19

NEEDLE BEARING HK 1816

SHAFT SEAL RING 18X24X4

BUSHING BOLT CONNECTING BAR'96

SELF LOCK. NUT M12X1,75 WS=19
