MASK, FENDERS

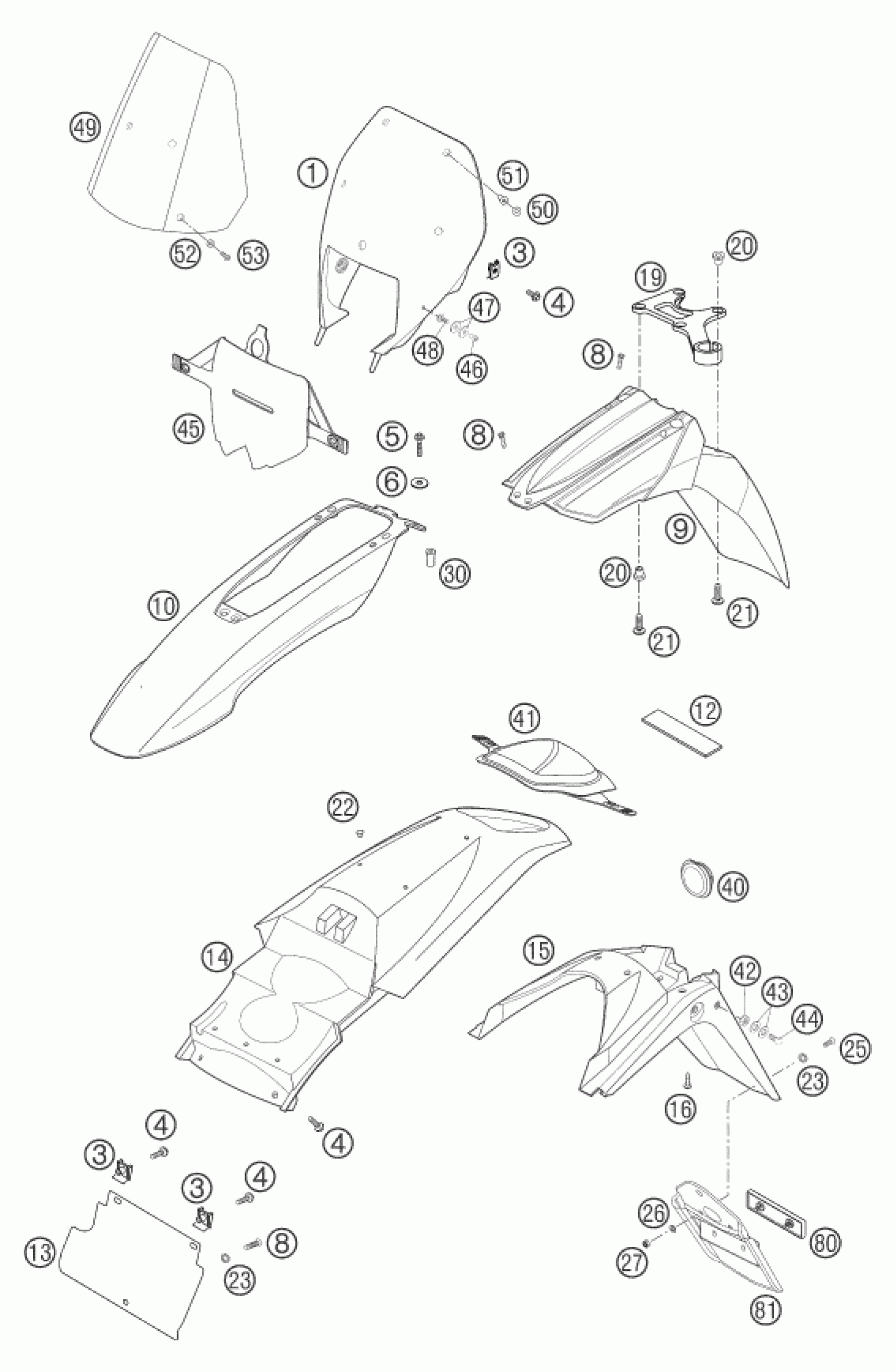

KTM 400 LS-E/ MIL 04 <2004 MASK, FENDERS Diagram
#
1
HEAD LIGHT MASK LC4 MIL. D 04
5790800110060
Unavailable
3
clip nut M6
54603048100
$4.11
4
HH COLLAR SCREW M 6X15 WS=8
0014060153
$3.08
5
HH COLLAR SCREW M 6X40 WS=8
0015060403
$3.08
6
Washer DIN9021-A 6.4
0021060003
$2.05
8
SCREW FOR PLASTIC D=5X18
0017050181
$1.49
9
FRONTFEND.REAR PART BLACK LC4
58408009000
Unavailable
10
FRONTFEND.FRONTPA.LC4-E MIL 01
5840801000060
Unavailable
12
RUBBER STRIP 85X25X3 MM
54601097000
$1.49
13
FENDER EXTENSION LC4-E '97
58308013250
$13.01
14
FENDER REAR LC4-E MIL. 01
5840801410060
Unavailable
15
NUMB.PLATE CARRIER BLACKMIL.04
57908015000
Unavailable
16
EJOT PT SCREW K60X20 WS=6
0017060203
$2.05
19
BRAKE HOSE GUIDE 2000
59008019000
$4.11
20
SPACER BUSHING FRONT FENDER
58408009050
$3.08
21
HH COLLAR SCREW M 6X20 WS=8
0014060203
$2.05
22
PLASTIC CAP SFL10
54403135000
$2.05
23
WASHER 6MM
40006006000
$1.49
25
OVAL HEAD SCREW DIN0966-M 5X16
0966050163
$1.49
26
WASHER DIN0125-A 5,3
0125050003
$1.49
27
Self locking nut DIN 985 M5
0985050003
$2.05
30
BUSH FOR FENDER BRACKET 2000
58408010050
$5.88
40
RUBBER FOR FENDER REAR
58414040050
$8.71
41
REAR LIGHT COVER MIL 04
57912076100
Unavailable
42
Self locking nut DIN 985 M5
0985050003
$2.05
43
WASHER DIN0125-A 5,3
0125050003
$1.49
44
BALL PIVOT DIN71803 M5X0,8
0180350081
Unavailable
45
HEAD LIGHT COVER MIL 04
57912079100
Unavailable
46
STEEL NIPPLE M5 BLACK
5650907200030
Unavailable
47
washer DIN 9021 A - 5.3
0021050003
$1.49
48
HH COLLAR SCREW M 5X16 WS=8
0015050163
$2.05
49
WIND SCREEN MIL. 04
57908017000
Unavailable
50
RUBBER WASHER 5X21X3
51005082200
$1.49
51
blind plug nut M5 WN16A
60008008050
$3.73
52
SPECIAL WASHER D=12MM 03
60008046000
$4.11
53
FLAT HEAD SCREW DIN7991 5X20
0991050204
$2.05
80
REFLECTOR RED
58412080000
$5.23
81
NUMB.PLATE CARRIER EXT.
57908016000
Unavailable
