LIGHTING SYSTEM

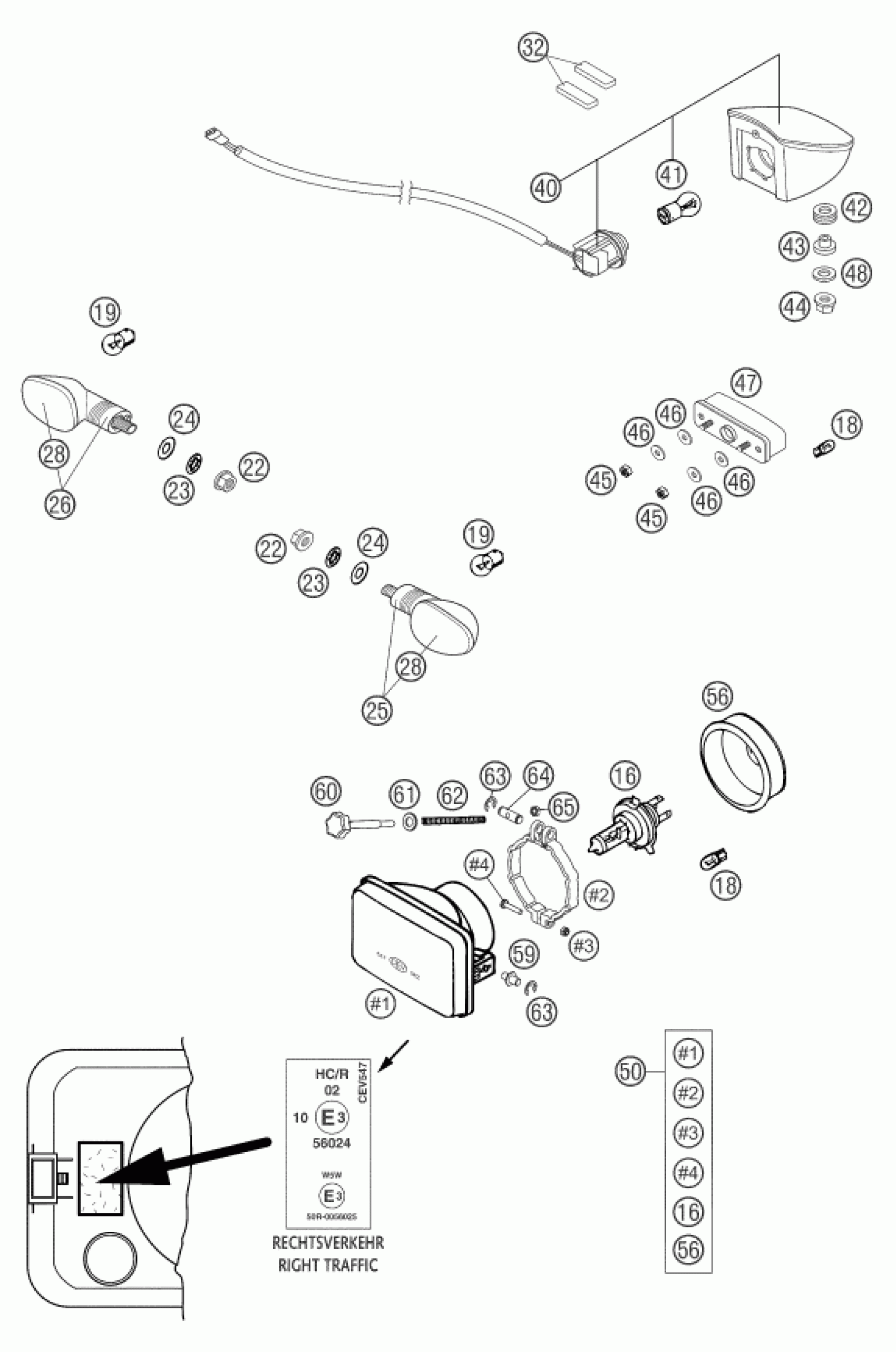

KTM 400 LS-E/ MIL 04 <2004 LIGHTING SYSTEM Diagram
#
Description
Price
16
BULB H4 12V 60/55W (P43T)
57111038000
$43.56
18
BULB 12V 5W (W2,1X9,5D)
49011435000
$5.23
19
BULB 12V 10W (BA15S)
44111015100
$3.08
22
HH COLLAR NUT M10X1,25 WS=13
58414030000
$2.05
23
LOCK WASHER DIN6797-J10,5 ZI
0797100003
$1.49
24
washer DIN 125 A 10.5
0125100003
$2.05
25
FLASHER CPL.FRONT L/S REAR R/S
5841402500030
$28.70
26
FLASHER CPL.FRONT R/S REAR L/S
5841402600030
$27.95
28
FLASHER LENS L/S & R/S '98
58414028000
$6.72
32
METAMOLL FOR REARLIGHT 99
58414040051
$1.49
40
REAR LIGHT CPL. LC4 2001
58414040100
$80.31
41
BULB 12V 21/5W (BAY15S)REINFO.
58414042000
$12.61
42
RUBBER SLEEVE D=12MM
41001052000
$4.11
43
REAR LIGHT BUSHING
58714048000
$5.23
44
Self locking nut M6 - 10
56509064100
$2.05
45
Self locking nut DIN 985 M5
0985050003
$2.05
46
washer DIN 9021 A - 5.3
0021050003
$1.49
47
LICENSE-PLATE ILLUMINATION '98
58414047000
$14.67
48
Washer DIN9021-A 6.4
0021060003
$2.05
50
HEAD LIGHT MIL. 04
57914001044
Unavailable
56
RUBBER CAP
50211537000
$3.48
59
BEARING BOLT F.HEAD LIGHT ADJ.
57914018000
Unavailable
60
ADJ.SCREW F.HEAD LIGHT ADJ.
57914023000
Unavailable
61
WASHER DIN0125-A 7,4
0125070003
$1.49
62
SPRING F. HEAD LIGHT ADJ.
57914022000
Unavailable
63
TAB WASHER DIN6799-RS 6,0
0799060000
$2.05
64
STUD BOLT F. HEAD LIGHT ADJ.
57914021000
Unavailable
65
Self locking nut DIN 985 M5
0985050003
$2.05
