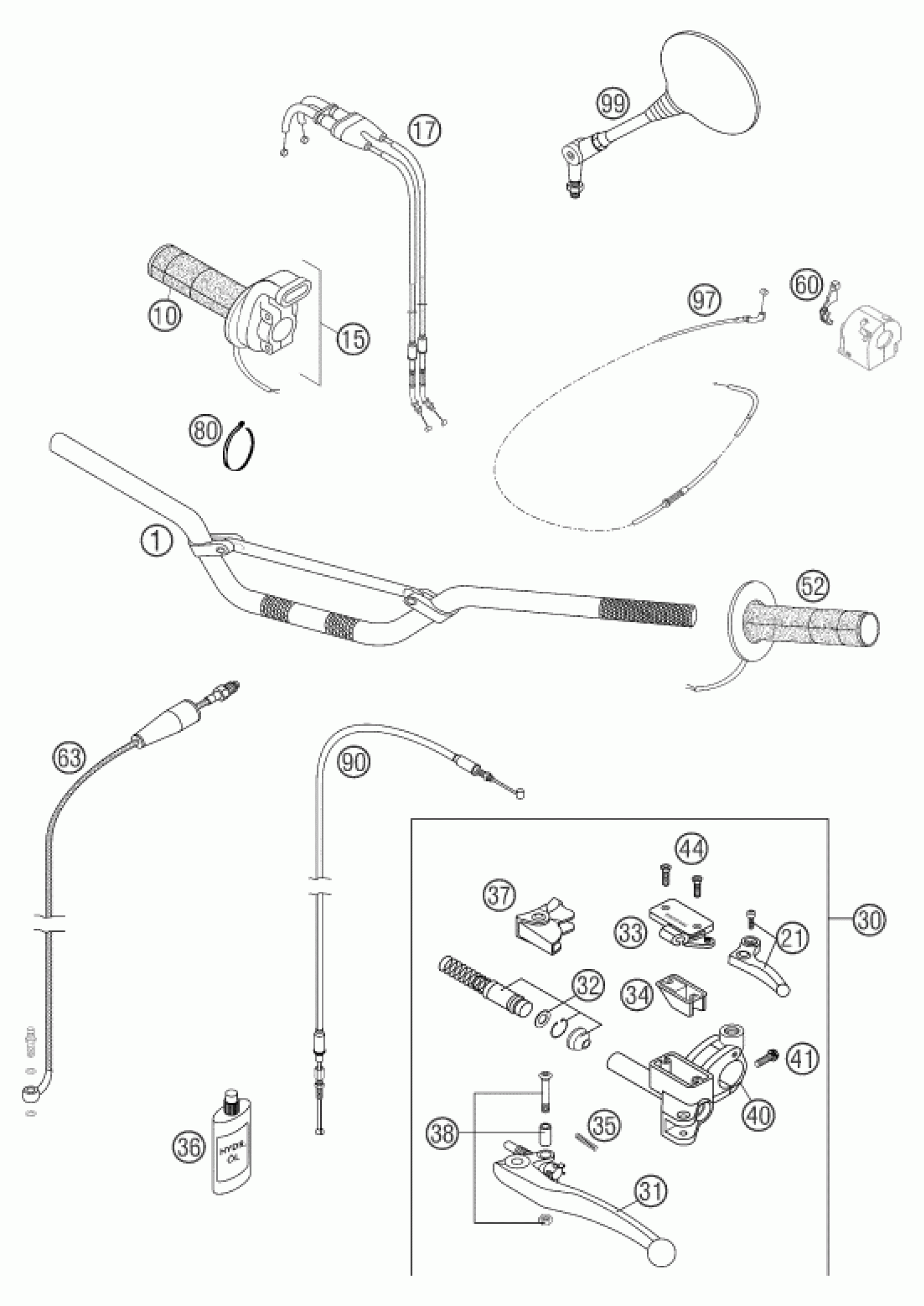

KTM 400 LS-E/ MIL 04 <2004> HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR WITH BRACE BLACK 02

5790200120030

Unavailable

10

TWIST GRIP COVER W. HEATING 04

57902061000

Unavailable

15

THROTTLE GRIP W.HEAT.CPL MIL04

57902010044

Unavailable

17

THROTT.CABLE ''OPEN-CLOSE'' 20

58402091600

$94.89

21

LEVER CPL. RACING 2000

59002047000

$23.00

30

MASTER CYLINDER CPL. LC4 03

58402030000

$258.13

31

CLUTCH LEVER LONG CPL. 2003

60002031000

$64.69

32

REP.SET PISTON MAGURA D=10.5

50302032000

$70.77

33

COVER HYD.CLUTCH RACING 2000

59002033000

$41.51

34

RUBBER FOR RESERVOIR '98

50302034000

$18.97

35

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

38

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

40

CLAMP MIRROR WITH PIN

59002044000

$39.26

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

52

FIXED GRIP WITH HEATING MIL.04

57902060000

Unavailable

60

CHOKE LEVER LC4 2002

58402050000

$8.01

63

CLUTCH PIPE LC4/SXC/SM 03

58432063000

$98.91

80

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

80

Cable tie 200/4.6mm black

44011076200

Unavailable

90

DECOMPR. CABLE LC4 03

58402094000

$39.80

97

CHOKE CABLE F. MIKUNI LC4 02

58402095100

$27.76

99

REAR MIRROR MIL. 04

57912040100

Unavailable
