FRONT FORK DISASSEMBLED

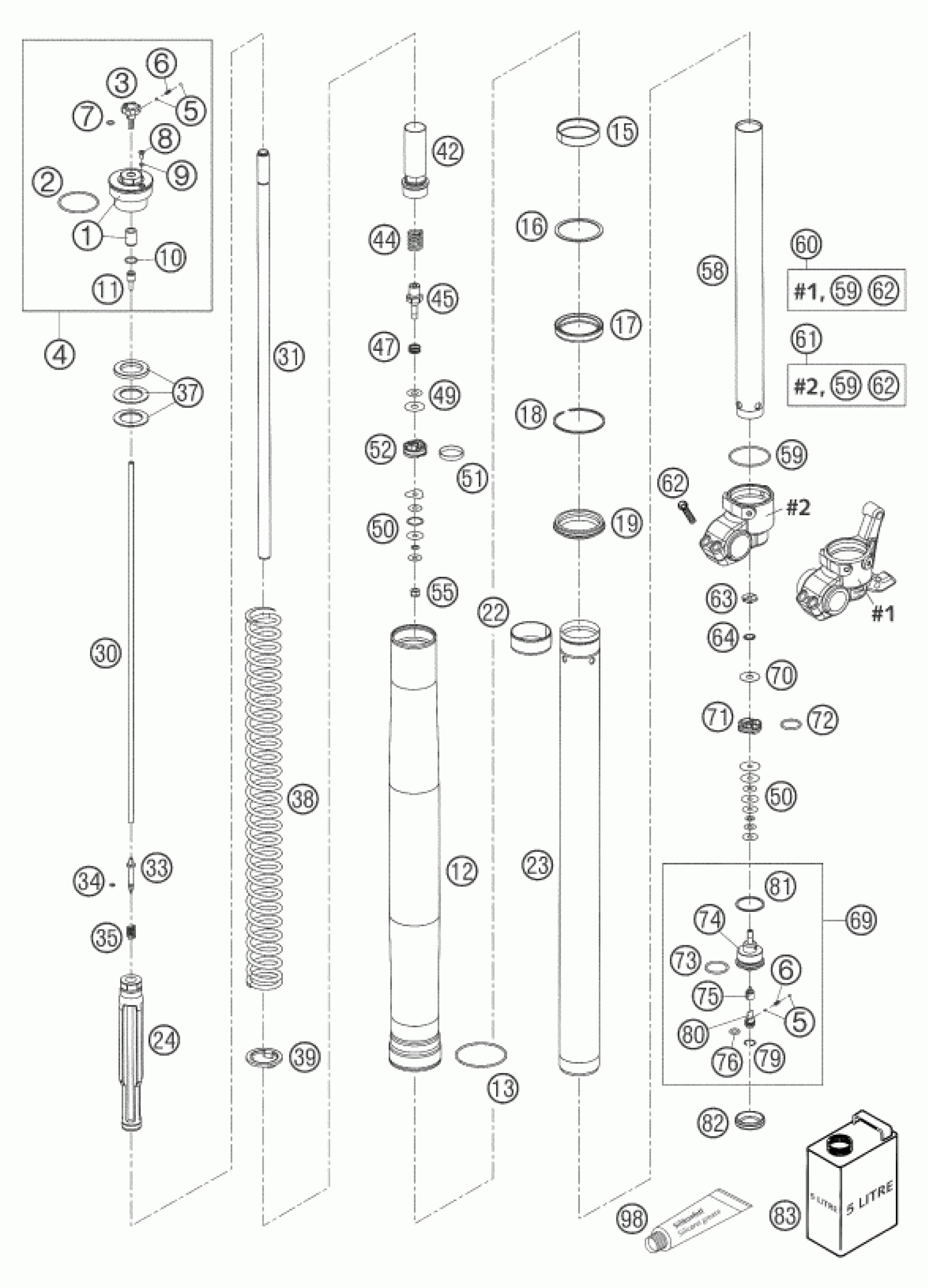

KTM 400 LS-E/ MIL 04 <2004 FRONT FORK DISASSEMBLED Diagram
#
1
SREW CAP+BUSH M51X1,5
48600020S
$39.06
2
O-ring 45x2 NBR70 siliconized
46810340
$1.49
3
Adjuster rebound
48600018
$4.11
4
SCREW CAP M51X1,5 CPL.
48600020S1
$98.26
5
Steel ball d3
40540603
$1.49
6
Spring (1,7) l7,9
48600028
$3.08
7
O-ring 6x1,5 NBR70
48600044
$1.49
8
Cross flat head screw M4x6
48600058
$1.82
9
O-ring 3,7x1,6 NBR70
48600009
$1.49
10
O-ring 12x1,5 NBR70
48600043
$2.05
11
Tube tap d4x25
48600019
$3.08
12
OUTER TUBE L=577MM D=54/57MM
43570125
Unavailable
13
Round-wire snap ring 53x2
43570099
$26.45
15
DU-BUSH 47 X 43 X 20
43570019
$77.97
16
Supportwasher 45x52,5x1,5
43570092
$20.09
17
Seal ring 43x52,9x9,5
43570201
$16.63
18
Snap ring SB53x1,5 acc drawing
43570008
$3.08
19
Dirtscarper NOK 43mm
43570202
$16.73
22
DU-BUSH 43,8 X 43 X 20
43570020
$11.40
23
INNER TUBE D=43MM L=585MM
43570145
Unavailable
24
HYDR.STOP L=200MM D=27,5 CPL
43570142S
$46.36
30
ADJUSTMENT TUBE L=447MM
48600174
Unavailable
31
PISTONROD D=14MM L=481MM M11X1
48600173
Unavailable
33
Needle 6x42,6 rebound
48600189
$34.68
34
O-ring 3x1,5 NBR70
48600046
$1.49
35
Spring (7,2) 4-23 needle
48600033
$5.23
37
Preload bush 42x26,5x2,5
48600036
$2.05
37
Preload bush 26,5x42x5
48600037
$4.11
37
Preload bush 26,5x42x1,5
48600053
$4.11
38
SPRING 3,6 N/MM SET D=4,6MM
95010010S
Unavailable
38
SPRING 4,4 N/MM SET D=4,9MM
95010012S
Unavailable
38
SPRING 4,0 N/MM SET D=4,75MM
95010002S
Unavailable
38
SPRING 4,2 N/MM SET D=4,9MM
95010003S
$143.79
38
SPRING 5,0 N/MM SET D=5,0MM
95010022S
Unavailable
38
SPRING 4,4 N/MM SET D=4,75MM
95010023S
Unavailable
39
Spring retainer 33,5x38,2x3
43570131
$18.04
42
SCREW SLEEVE M29,3X1 L=65 CPL.
48600200S
$122.17
44
REBOUND SPRING D=14,6MM L=22MM
48600015
$28.51
45
Tap 6x45 rebound
48600203
$8.37
47
Spring (11,7) 1,5-8 valve
35480377
$2.05
49
CHECK VALVE 8X24X0,1
48600062
$2.05
49
CHECK VALVE 8X18X0,1
48600068
Unavailable
49
Shim 8x20x0,10
48600215
Unavailable
49
Shim 8x22x0,10
48600216
Unavailable
50
Shim 6x12x0,10
40540400
Unavailable
50
Shim 6x14x0,10
40540401
Unavailable
50
Shim 6x16x0,10
40540402
Unavailable
50
Shim 6x18x0,10
40540403
Unavailable
50
SHIM 6X12X0,15
40540404
Unavailable
50
SHIM 6X14X0,15
40540405
Unavailable
50
Shim 6x18x0,20
40540411
Unavailable
50
SHIM 6X16X0,25
40540414
Unavailable
50
Shim 6x10x0,30
40540447
Unavailable
50
Shim 6x24x0,10
48600063
Unavailable
50
Shim 6x22x0,10
48600064
Unavailable
50
Shim 6x20x0,10
48600065
Unavailable
50
Shim 6x24x0,10 delta
48600116
Unavailable
50
SHIM 6X22X0,1 DELTA
48600139
Unavailable
51
Pistonring 26x28x5
48600060
$5.23
52
Piston 6x27,65x12 rebound
48600201
$52.12
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
$4.11
58
TUBE 29,3X1X390 D=8,5MM
48600081
$155.20
59
O-ring 41x2 NBR70 siliconized
43570023
$13.55
60
AXLE CLAMP L/S CPL. 04
43570124S
Unavailable
61
AXLE CLAMP R/S CPL. USD 43 04
43570123S
$185.04
62
HH COLLAR SCREW M 8X25 WS=10
0015080253
$2.05
63
Nut valve M6x0,5 h6,5 WAF17
48600163
$3.08
64
Spring (8,5) l6,5 valve
48600202
$2.05
69
TAP COMPRESSION CPL. 03
48600152S1
$37.67
70
Shim 8x24x0,40
48600061
$2.05
71
Piston 6x27,8x9 compression
48600047
$9.81
72
O-ring 21x2 NBR70
46811499
$1.49
73
O-ring 24x2 NBR70
35480320
$1.49
74
TAP COMPRESSION 2002
48600177
$23.26
75
Needle 10x11,6 compression
48600190
$13.64
76
O-ring 8x2 NBR70
48600049
$1.49
79
Round-wire snap ring 12x1 DIN7
48600051
$3.08
80
Adjustment screw slot compress
48600034
$7.35
81
Copper disc 29,5x33,5x1
48600004
$4.11
82
Rubber cap 35x10 NBR80
48600141
$4.11
98
SILICONE GREASE F. DUST STRI
T511
$34.59
83
FORK OIL SAE 5
48600211S1
Unavailable
