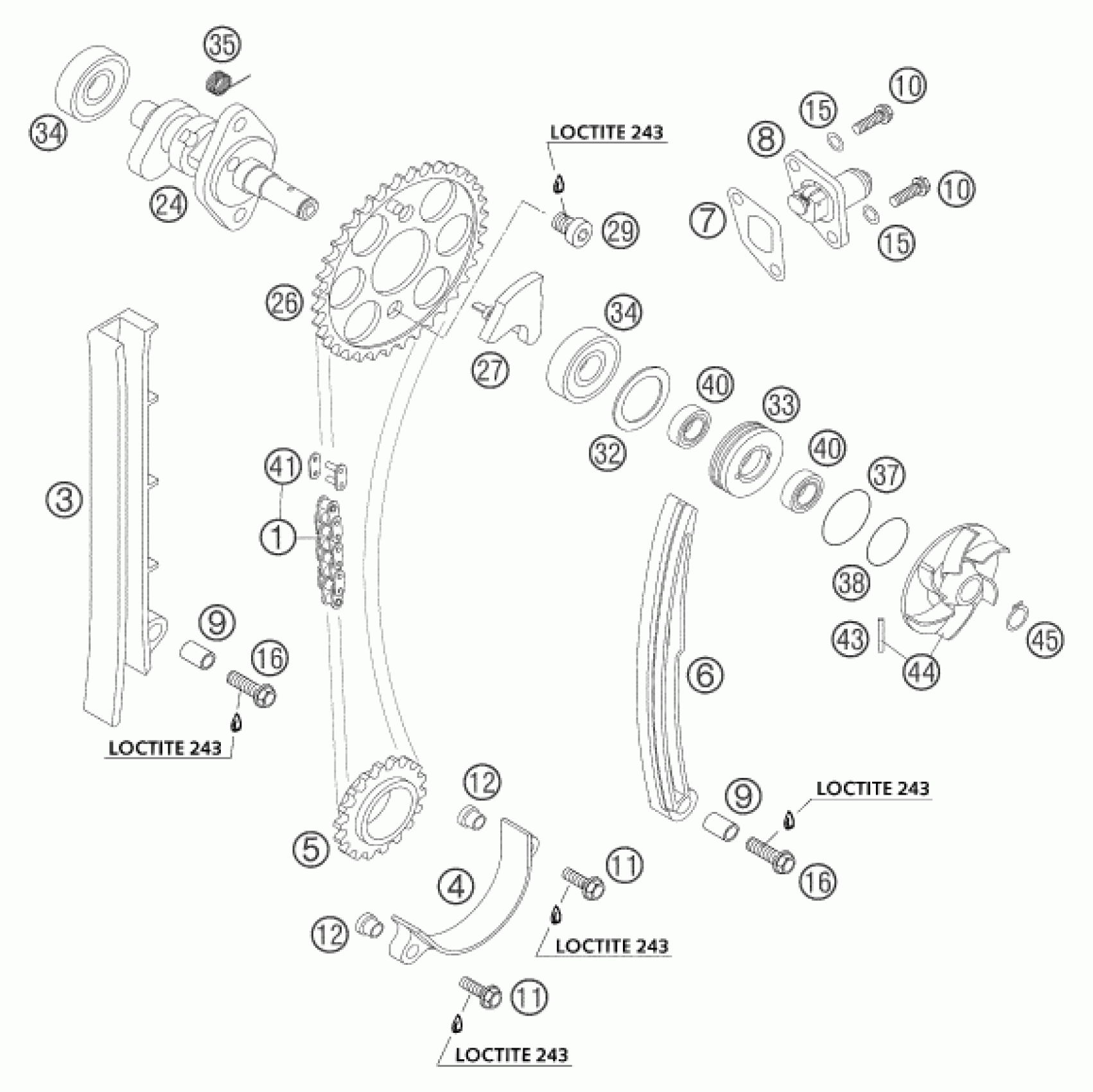

KTM 400 EXC RACING 2004 TIMING DRIVE Diagram

#

Description
Price

1

TIMING CHAIN 96 ROLLS

59036013000

$103.22

3

TIMING CHAIN GUIDE RACING

59036001000

$13.36

4

SECURING GUIDE RACING

59036018000

$5.23

5

TIMING GEAR 18-T

59036014000

$64.79

6

TIMING CHAIN TENSIONER

59036002000

$13.74

7

GASKET TIMING CHAIN TENSIONER

59036003050

$4.11

8

TIMINGCHAIN TENSIONER CPL.RAC.

59036003000

$57.87

9

SPACER BUSHING 6,1X8,2X13,1

59036001050

$4.11

10

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

11

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

12

SUPPORTING SLEEVE 5,2X7X10X7,7

59036018050

$3.08

15

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

16

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

24

CAMSHAFT ''01'' 400 RACING 20

59536010000

$189.49

26

CAMSHAFT GEAR 2003

59036011100

$65.36

27

AUTO DECOMPRESSION SHAFT

59036016000

$32.78

29

AH SCREW DIN7984-M 8X10

0984080103

$2.05

32

WASHER 26,7X34X1,3

59036082000

$5.23

33

GASKET SUPPORT

59036081100

$18.22

34

BALL BEARING 6201

0625062014

$15.42

35

SPRING FOR AUTODECOMPRESSION

59036017000

$4.11

37

O-RING 29,10X1,60 NBR 70

0770291016

$2.05

38

O-RING 25,12X1,78 NBR70

0770020220

$3.08

40

SHAFT SEAL RING 10X18X4 BSL

0760101843

$10.09

41

RIVET LINK FOR TIMING CHAIN

59036013050

$8.03

43

Needle roll.DIN5402 NRB 3X17.8

0402031780

$1.49

44

WATER PUMP WHEEL CPL. RAC.2001

59035055144

$5.98

45

CIRCLIP DIN0471-10X1

0471100010

$2.05
