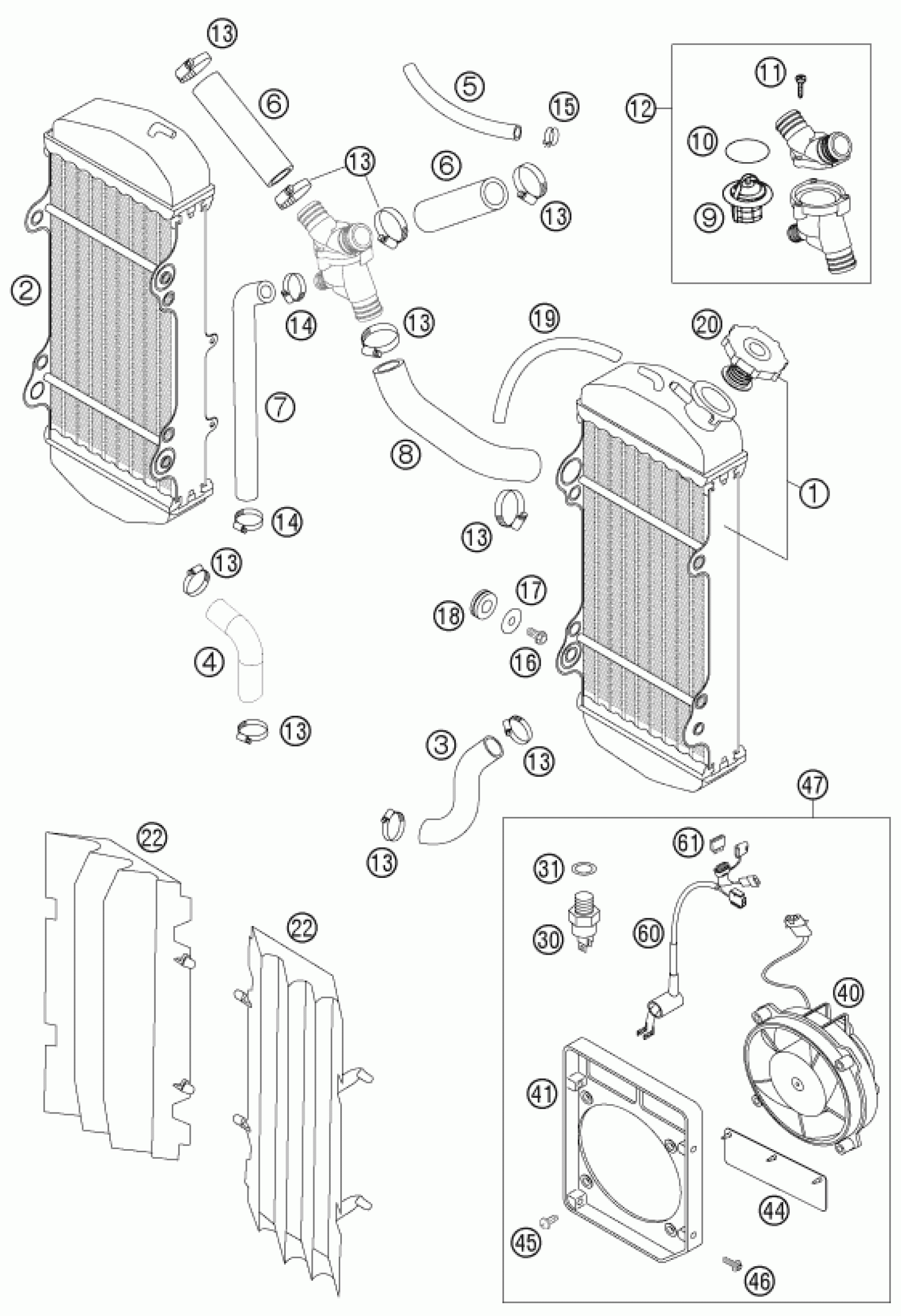

KTM 400 EXC RACING 2004 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S 45.407 03

59035007300

$231.35

2

RADIATOR R/S 45.409 03

59035008400

$416.73

3

RADIATOR HOSE L/S RAD.-CYL. 03

59035024100

$8.13

4

RADIATOR HOSE R/S RAD.-CYL. 03

59035124100

$10.65

5

HOSE ID 7,5 PER METER

54435024001

$23.27

6

RADIATOR HOSE RAD.-THERMOS. 04

59035126100

$29.44

7

RADIATOR HOSE SECONDARY 04

59035025101

$28.98

8

RADIATOR HOSE THERMOS.-HEAD04

59035025100

$23.75

9

THERMOSTAT 70 DEGREE 04

59435017000

$42.25

10

O-RING 32,00X2,00

0770320020

$2.05

11

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

12

THERMOSTAT CPL. 70 DEGREES 04

59435013044

$65.36

13

HOSE CLAMP GEMI 18-29

10001020000

$2.05

14

HOSE CLAMP GEMI 10-16

58335099000

$4.11

15

HOSE CLAMP YDNAC 10119 11MM

50231005000

$2.05

16

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

17

Washer DIN9021-A 6.4

0021060003

$2.05

18

RUBBER SLEEVE D=12MM

41001052000

$4.11

19

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

20

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

$15.98

22

RADIATIOR PROTECTION 03

59035040000

$8.03

30

THERMOSWITCH 80-85 DG

58035045000

$37.95

31

ALU SEALRING DIN7603-14X20X1,5

0603142015

$2.05

40

FAN CPL. 12V LC4 2000

58435041000

Unavailable

41

FAN CAP 2001

59035044000

Unavailable

44

FAN FLAP RUBBER LC4 2000

58435044050

Unavailable

45

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

46

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

47

FAN CPL. RACING 2001

59035041044

Unavailable

60

FAN WIRING HARNESS 2001

59011079000

Unavailable

61

FUSE 5 A

58011109005

Unavailable
