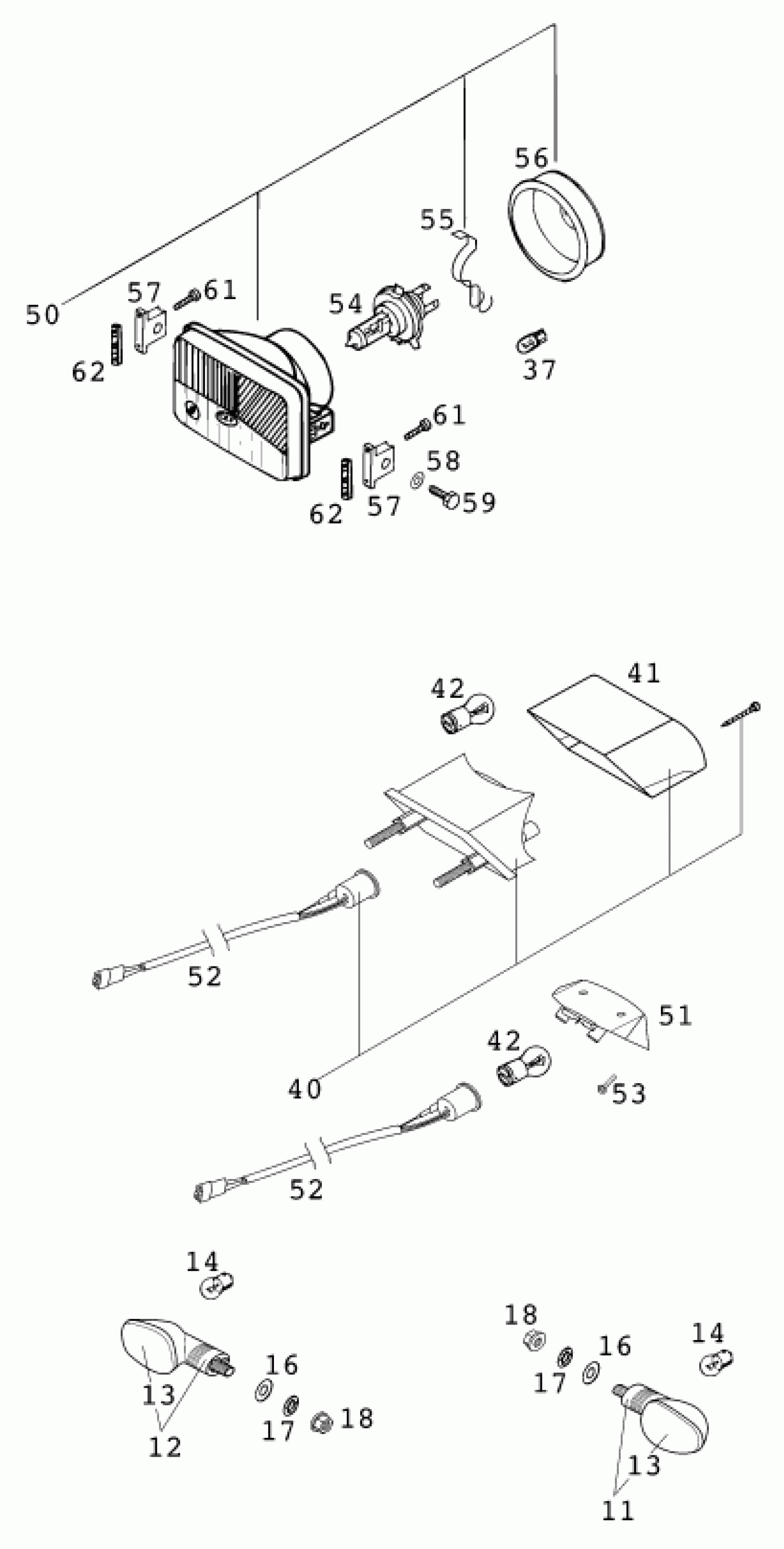

KTM 400 EXC RACING 2001 LIGHTING SYSTEM Diagram

FLASHER CPL.FRONT L/S REAR R/S

5841402500030

$28.70

FLASHER CPL.FRONT R/S REAR L/S

5841402600030

$27.95

FLASHER LENS L/S & R/S '98

58414028000

$6.72

BULB 12V 10W (BA15S)

44111015100

$3.08

washer DIN 125 A 10.5

0125100003

$2.05

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

RR LIGHT CPL.125-380 EGS '98

50314040100

$80.96

REAR LIGHT LENS 125-380 EGS'98

50314041100

$27.48

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

HEAD LIGHT 186(LE)''1003203 L'

59014002100

$89.91

WIRING HARNESS REAR 125-380'98

50311076000

$27.39

BULB HS1 12V 35/35W WHITE

54611038012

$33.28

BULB HOLDER

49011436100

$2.24

RUBBER CAP

50211537000

$3.48

HEAD LIGHT SUPPORT 2001

58414010100

$1.49

WASHER DIN0125-A 6,4

0125060003

$1.49

HH SCREW DIN0933-M 6X20

0933060203

$1.49

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

HEADLIGHT BRACKET '93

50211410050

$5.65
