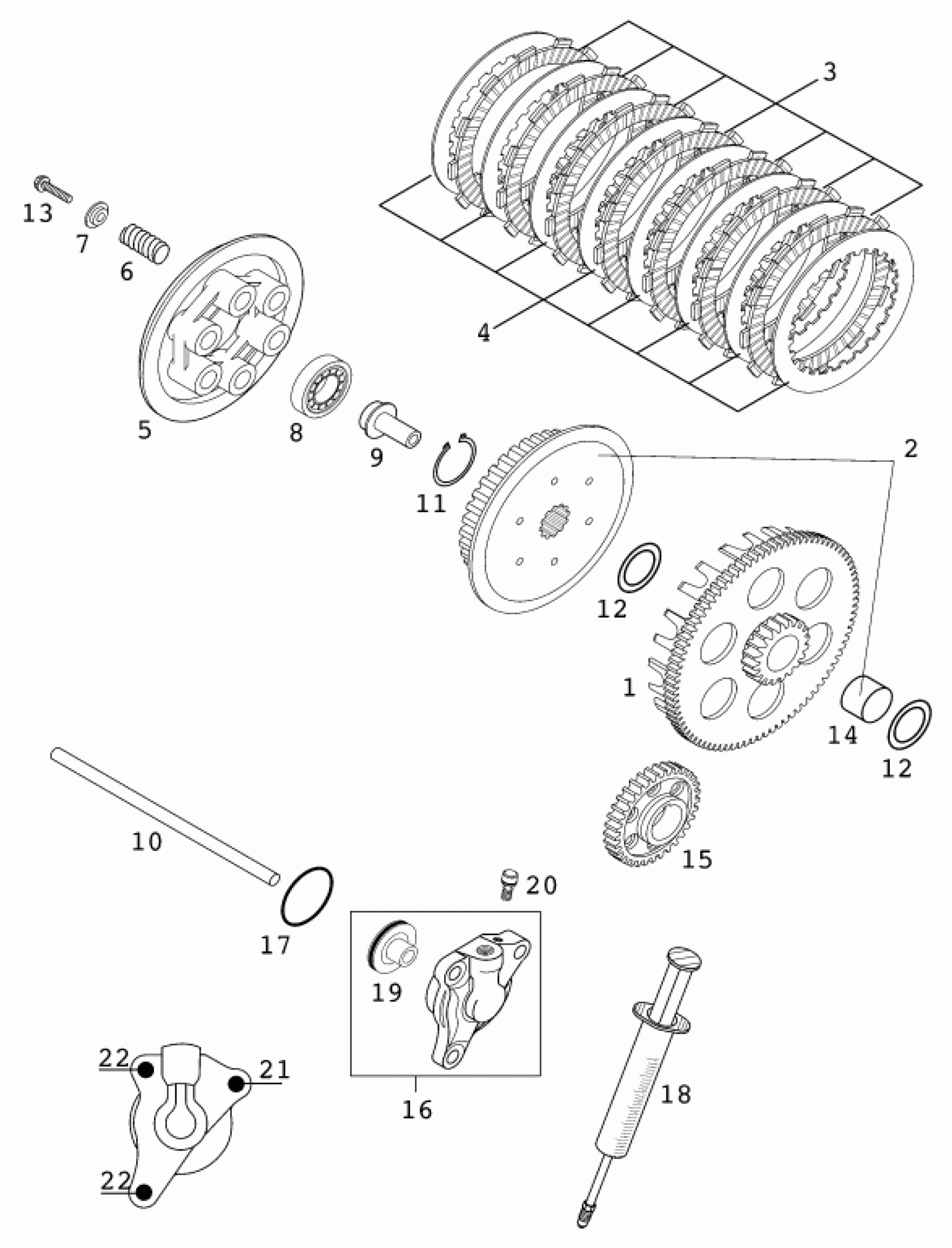

KTM 400 EXC RACING 2000 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH HUB 76-Z/20-Z

59032000076

Unavailable

2

INNERCLUTCH HUB+BEARING SLEEVE

59032002044

$80.75

3

LINING DISK 1,8MM

59032011000

$23.09

4

INTERMEDIATE DISC 1MM

59032010000

$12.99

5

PRESSURE CAP

59032003000

$45.81

6

CLUTCH SPRING 2,5X43MM

59032005000

$3.08

7

SPRING RETAINER 6,2X12X18X3,6

59032006000

$2.05

8

GROOVED BALL BEAR. TM 16004 C3

0625160040

$23.37

9

PRESSURE BOLT 7X12X40

59032055000

$11.86

10

PUSH ROD 7X188MM

59032054000

$13.08

11

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

12

SUPPORTWASHER 25X35X1

59032017000

$2.05

13

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

14

BEERING SLEEVE 25X28X20,5

59032016000

Unavailable

15

PRIMARY GEAR 33-T

59032000033

$126.59

16

CYLINDER CPL. 250-380 '99

54732061044

Unavailable

17

O-ring 30x1.5 NBR 70

0770300015

$2.05

18

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

19

PISTON W. O-RING 250-380 '00

54632066000

$240.75

20

BLEEDER SCREW WITH CAP

54732064000

$21.96

21

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

22

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08
