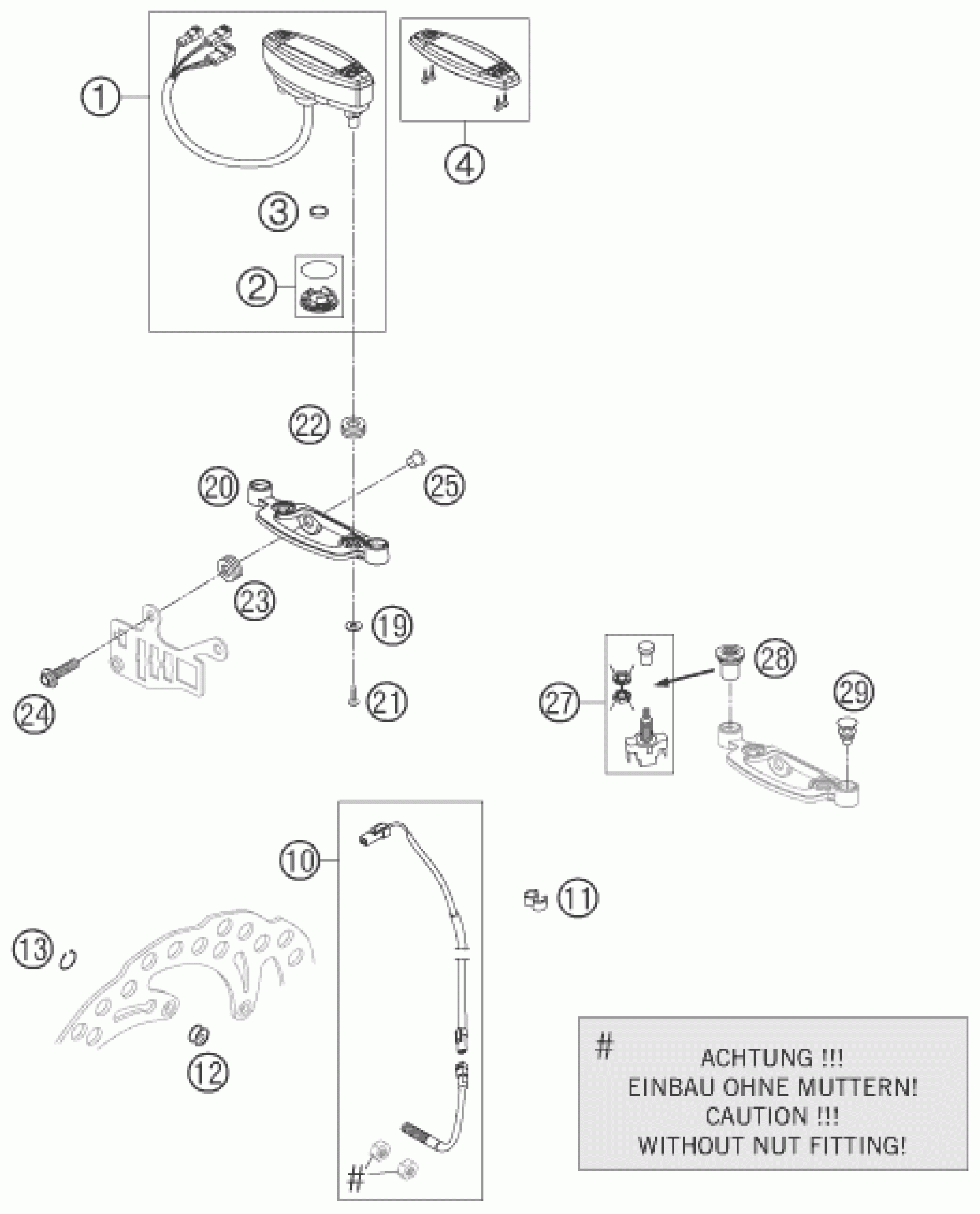

KTM 400 EXC-G RACING 2006 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER KM/H F. 21'' 200

54814069000

$282.46

2

BATTERY COVER F. SPEEDOM. 2005

54814069010

$12.33

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

$9.81

4

SPEEDOMETER TOP PART 05

54814069020

$35.80

10

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

$78.91

11

CLAMP D=6/8MM, BLACK

55011022100

$2.05

12

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

$20.19

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05

19

washer DIN 9021 A - 5.3

0021050003

$1.49

20

SPEEDOMETER BRACKET 05

54814060000

$5.51

21

SCREW FOR PLASTIC 50X12

0016050121

$2.05

22

rubber grommet 16x10.8x3

58214069051

$5.23

23

rubber grommet D=8mm open

31008060000

$2.05

24

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

25

spacer bushing for speedometer

58314060050

$5.23

27

PULL SWITCH LOOSE

55011599000

$23.09

28

SPEC. NUT F. PULL SWITCH WS=17

54814060050

$5.51

29

Plug SFL16

50210086000

$3.08
