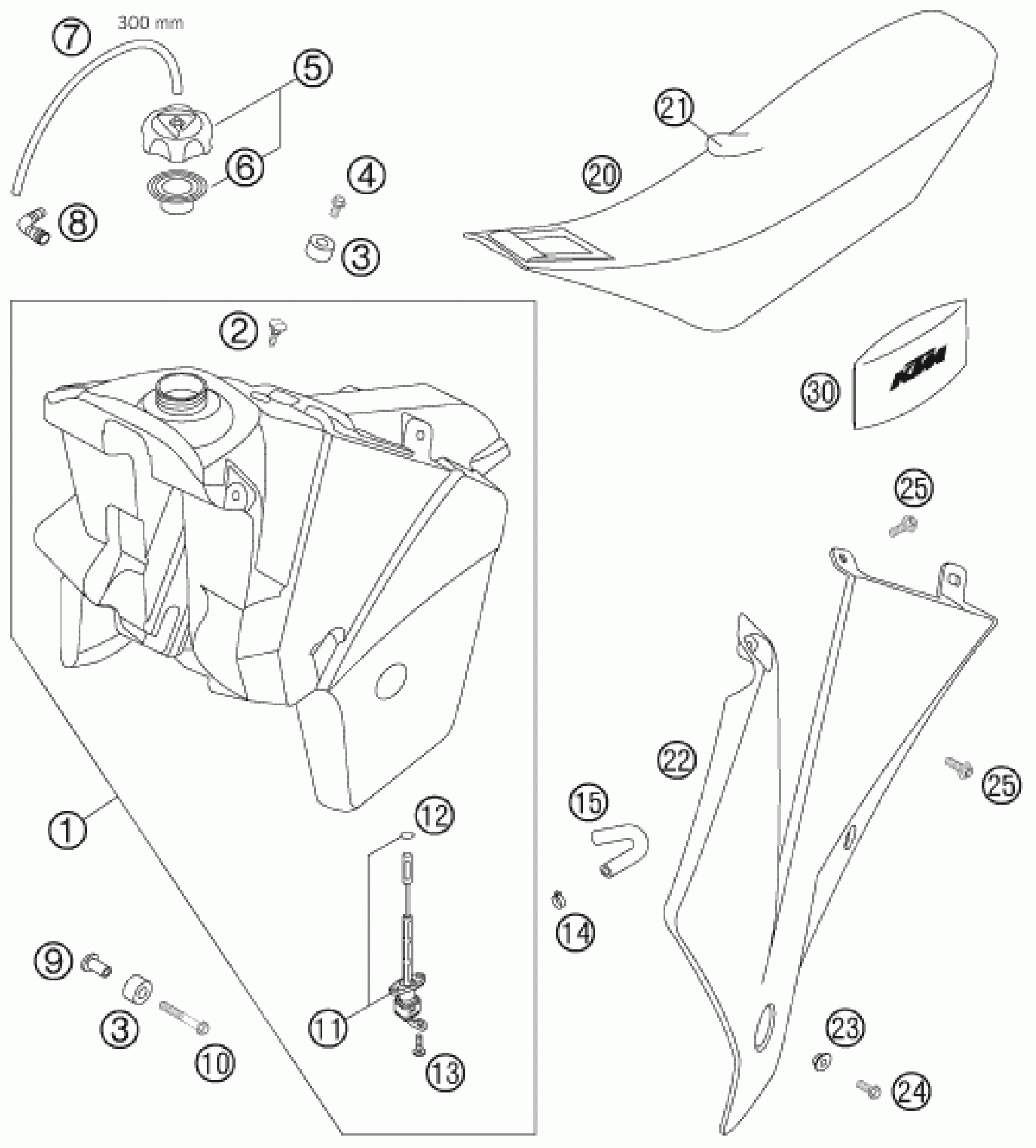

KTM 400 EXC FACTORY RACING <2007> TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. RACING 8,0L 03

5900701350044

$237.37

2

SCREW SEAT FASTENING D=6X23/18

50307011000

$3.08

3

TANK ROLLER 12X26X12 '98

50307014000

$11.02

4

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

5

SXS FUEL TANK CAP

SXS03540700

$12.44

6

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

9

SUPORT BUSHING TANKROLLER

59003001055

$6.72

10

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

11

GAS COCK ON/OFF/RES 03

54807004000

$32.72

12

O-RING 11X2 VITON

0770110021

$2.05

13

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

14

CLAMP YDNAC 10128 12MM

58031005000

$3.08

15

FUEL HOSE 7,5X13MM

59007016000

$13.46

20

SEAT SIX-DAY

54807040800

Unavailable

21

SEAT COVER SIX-DAY 06

54807040850

Unavailable

22

SPOILER L/S ORANGE 05

5480805000004

$81.24

22

SPOILER R/S ORANGE 05

5480805100004

$81.24

23

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

24

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

25

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

30

TOOL KIT 07

77029099100

$67.50
