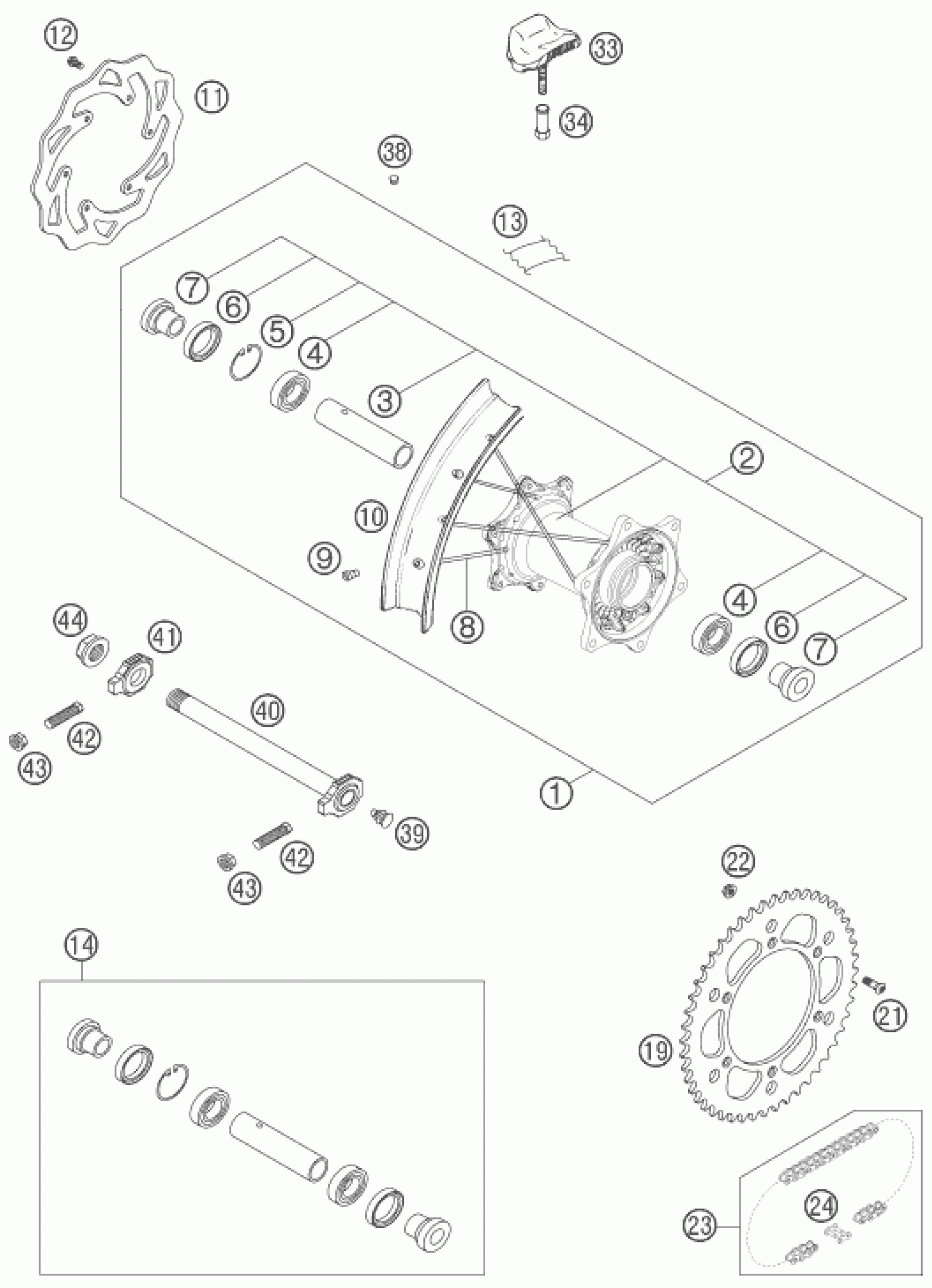

KTM 400 EXC FACTORY RACING <2007 REAR WHEEL Diagram

#

Description
Price

19

REAR SPROCKET ORANGE 38-T

5841005103804

Unavailable

19

REAR SPROCKET ORANGE 40-T

5841005104004

Unavailable

19

REAR SPROCKET ORANGE 42-T

5841005104204

Unavailable

19

REAR SPROCKET ORANGE 44-T

5841005104404

Unavailable

19

REAR SPROCKET ORANGE 48-T

5841005104804

Unavailable

19

REAR SPROCKET ORANGE 50-T

5841005105004

Unavailable

19

REAR SPROCKET ORANGE 51-T

5841005105104

Unavailable

19

REAR SPROCKET ORANGE 52-T

5841005105204

Unavailable

1

REAR WHEEL 2,15X18''EXCEL 08

7801000104430

Unavailable

2

REAR HUB CPL. 08

78010010044

$313.68

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

7

BUSHING FOR HUB 08

78010016000

$32.90

8

SPOKE M5X195-10G 18'' DDE

77010072195

Unavailable

9

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

$2.05

10

REAR RIM 2,15X18'' EXCEL AL7

5481007000030

$219.06

11

BRAKE DISC REAR 220

77310060000

$127.62

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

13

Tube protector 18" and 19"

50310073200

$13.27

14

REAR WHEEL REP. KIT

78010015000

$107.98

19

REAR SPROCKET 38-T

58310051038

Unavailable

19

REAR SPROCKET 42-T

58310051042

Unavailable

19

REAR SPROCKET 40-T

58310151040

Unavailable

19

REAR SPROCKET 45-T

58310151045

Unavailable

19

REAR SPROCKET 48-T

58310151048

Unavailable

19

REAR SPROCKET 49-T

58310151049

Unavailable

19

REAR SPROCKET 50-T

58310151050

Unavailable

19

REAR SPROCKET 51-T

58310151051

Unavailable

19

REAR SPROCKET 52-T

58310151052

Unavailable

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

22

Self locking nut M8 10.9

54310086200

$3.08

23

CHAIN 5/8X1/4'' MX ORANGE

5031016511804

Unavailable

23

CHAIN Z-RING 5/8X1/4'' ORANGE

5031080011804

Unavailable

24

Connecting link for 5031016511

50310166000

$6.79

24

CONNECTING LINK F. 50310800118

50310366000

$9.34

24

MASTER LINK FOR 50310800118

50310866000

$6.79

33

RIM LOCK VM3 (2.15'')

54010100100

$20.56

34

NUT FOR WHEEL HOLDER '96

50310090050

$5.23

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

Thru axle rear wheel cmpl. 07

77310085044

$78.91

41

Chain tension adjuster, right

50310084000

$20.66

42

screw M10x1.25x50 WS10

50304040100

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Hexagon nut M20x1.5

50310099000

$11.30

3

BUSH. SPACER TUBE 121,5MM 01

59010011000

$22.34
