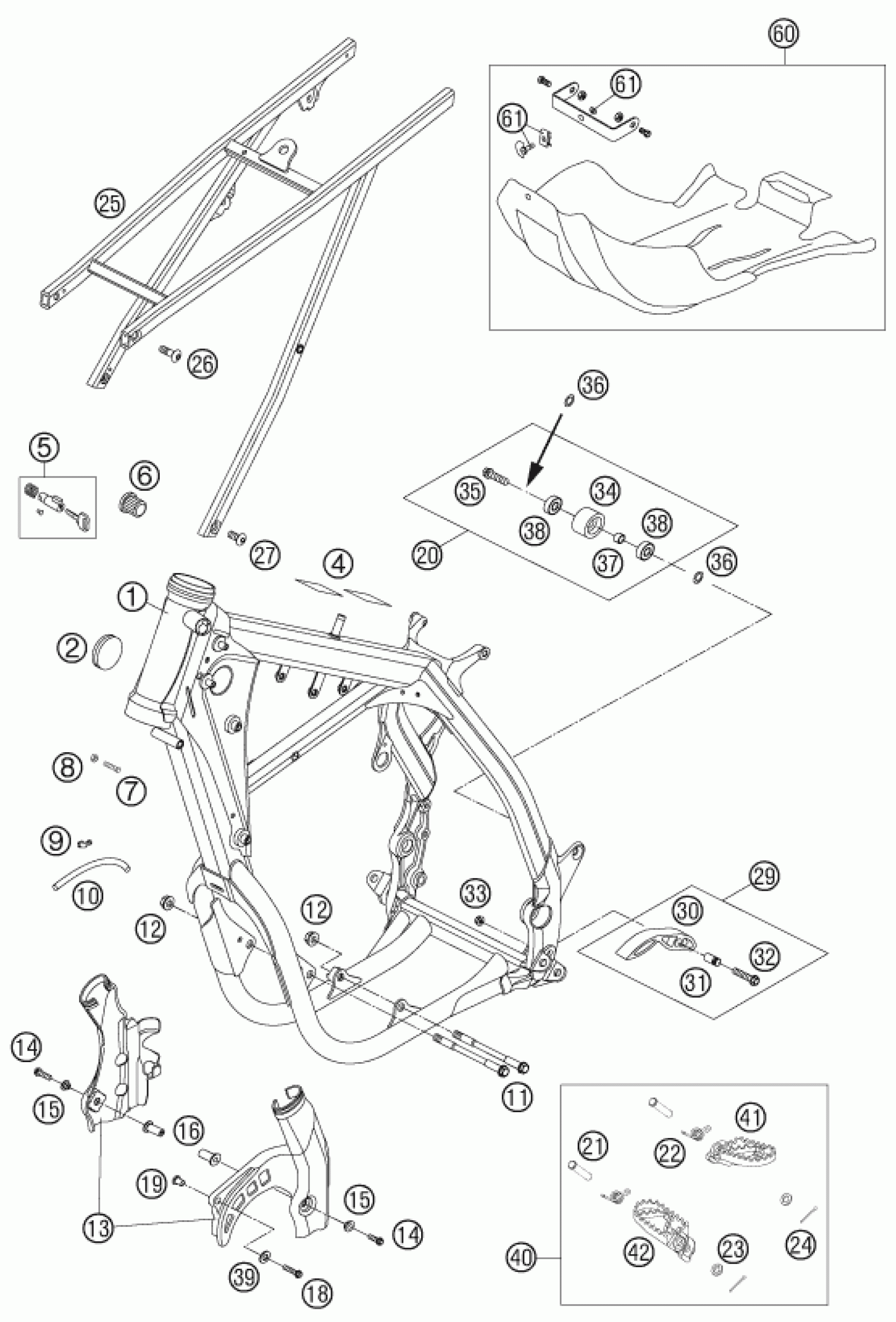

KTM 400 EXC FACTORY RACING <2007> FRAME Diagram

FRAME EXC RAC. EU/AUS ''DC06'

5940310110030

$748.53

PLUG 37MM

54606004000

$2.05

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

STEERING HEAD LOCK CPL. ZADI

71003007000

$32.06

PLASTIC CAP

42007049000

Unavailable

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

Hexagon nut DIN934 M8

0934080003

$2.05

ANGLE PIECE '97

50303089000

$5.23

PVC-HOSE 7X10 PER METER

55007016001

$6.07

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

FRAME PROTECTION SET 05

54803094100

$20.94

HH COLLAR SCREW M 5X25 WS=6

0014050253

$3.08

Bush f. frame protection 03

54803092060

$4.11

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

BUSHING F. SPROCKET COVER RAC.

59030060050

$10.46

CHAIN ROLL 30MM CPL. 06

50203053010

$25.24

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

washer DIN 125 A 10.5

0125100003

$2.05

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

SUB FRAME CPL. EXC+MXC ''M5''

59403002344

$391.48

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

CHAIN SLIDING KIT BELOW CPL

51103053010

$10.74

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

BUSHING 8,2X10X20

51103053051

$4.11

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

Self locking nut M8 10.9

54310086200

$3.08

CHAIN ROLL D=30MM

50203053000

$6.72

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

LOCK WASHER 8MM

36003014000

$2.05

BUSHING 8.2 X 12 X 6

74003021000

$3.08

Grooved ball bearing 608 2RS C

0625006087

$21.40

WASHER DIN0125-A 6,4

0125060003

$1.49

FOOTPEG L.+R. CPL. 03

5030314013390

$167.45

FOOT PEG L/S SILVER 02

59003040250

$43.66

FOOT PEG R/S SILVER 02

59003041250

$43.66

SKID PLATE PLASTIC

59003090600

$121.64

QUICK RELEASE 03

59003090350

$15.29
