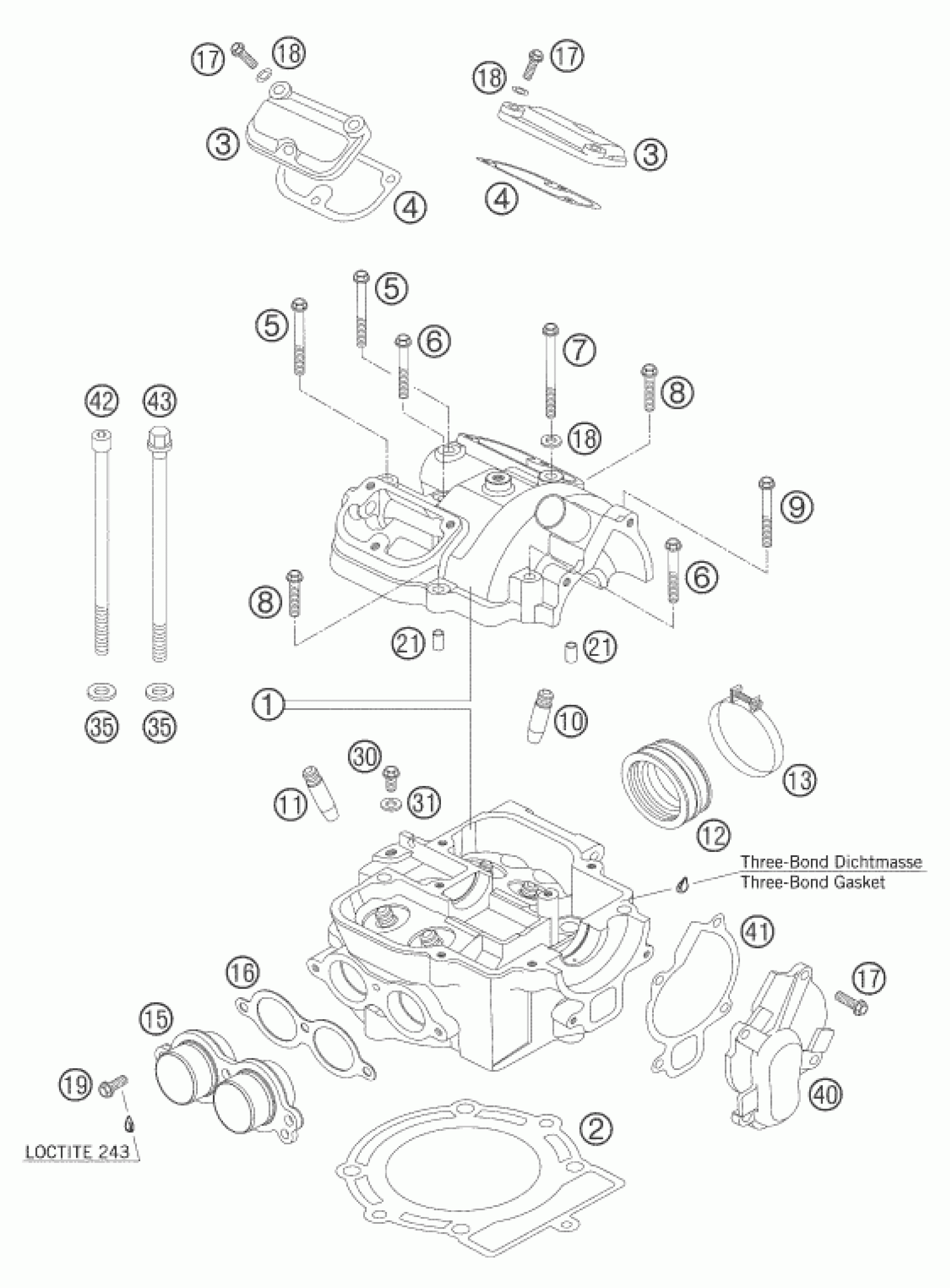

KTM 400 EXC FACTORY 2005 CYLINDER HEAD Diagram

#

Description
Price

1

CYL HEAD CPL.450/520 03

59036020144

$622.77

2

CYLINDER HEAD GASKET 89,3 MM

59530036000

$41.97

3

VALVE COVER REAR

58036052000

$36.15

4

VALVE COVER GASKET

58036053000

$4.11

5

HH COLLAR SCR. M6X55 WS=8 10.9

0015060556

$1.73

6

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

7

HH COLLAR SCREW M 6X75 WS=8

0015060753

$3.08

8

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

9

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

10

VALVE GUIDE INTAKE

59036025101

$27.76

11

VALVE GUIDE EXHAUST

59036026101

$28.51

12

INTAKE BOOT 03

59036044100

$8.97

13

CLAMP D=56MM B=9MM M4X25

59030061000

$5.23

15

EXHAUST FLANGE CPL. 450/525 03

59436039000

$63.76

16

GASKET EXHAUST FLANGE

59036041000

$6.44

17

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

18

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

19

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

21

dowel sleeve 6x8x11.5

59030023000

$1.49

30

VENT SCREW M6X10 CPL.

59036006090

$4.11

31

CU-SEAL RING 6 X 10 X 2

58036065100

$2.05

35

WASHER 10,8X18,8X1,5

59036090000

$1.49

40

WATER PUMP COVER RACING 2000

59035052000

$62.35

41

WATER PUMP COVER GASKET 0,8MM

59035053000

$6.54

43

CYL.HEAD SCREW M10X158 WS=13

59036079000

$10.74
