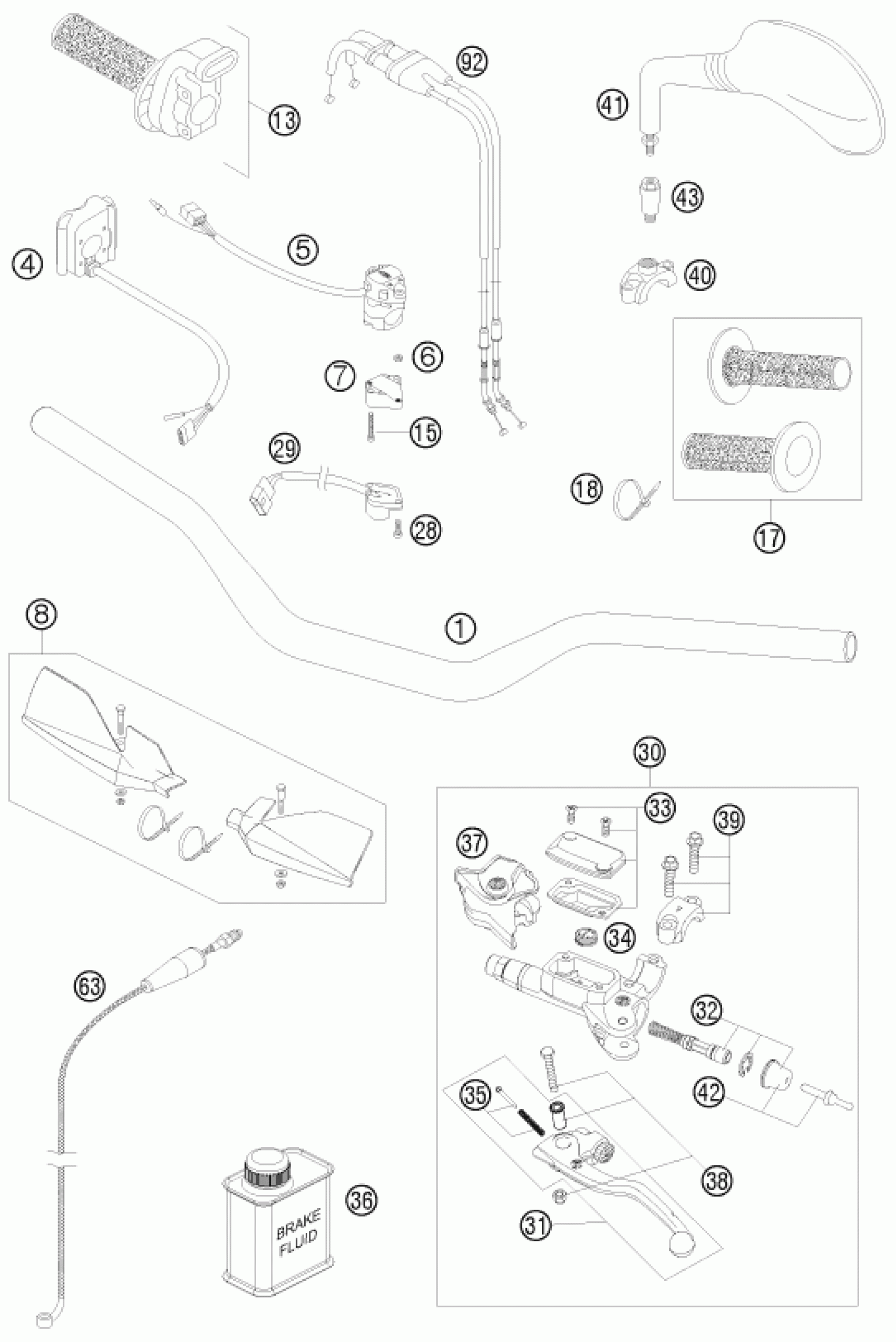

KTM 400 EXC 2010 HANDLEBAR, CONTROLS Diagram

HANDLEBAR D=28MM

7800200100017

$173.43

START-STOP SWITCH 2000

59011074100

$62.54

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

HAND GUARDS CPL.L/S+R/S OR. 06

7700207900004

$34.85

THROTTLE GRIP CPL. 4-ST. 09

77002010100

$44.59

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

GRIP-SET GRAY/ORANGE 09

54802021200

$22.71

Cable tie 200/4.6mm black

44011076200

$1.49

FLAT HEAD SCREW DIN7985-M 4X20

0985040203

$1.49

FLASHER SWITCH CEV '98

50311029000

$51.98

MASTER CYLINDER CPL. 06

54802030044

$240.57

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

REP. KIT PISTON 06

54802032000

$49.92

COVER HYD. CLUTCH CPL.

54802003000

$33.46

VALVE

54802051000

$19.16

BOLT KPL.

54802052000

$29.35

Brake fluid DOT5.1 0,25L

00062030000

$12.52

PROTECTION CAP 06

54802037000

$20.94

Lever screw cmpl. 06

54802038100

$39.82

CLAMP CPL. 06

54802005100

$25.80

Clamp for mirror

58012040150

Unavailable

MIRROR L/S 98

58412040000

Unavailable

MIRROR R/S 98

58412041000

Unavailable

Push rod cmpl.

54802046000

$23.46

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

CLUTCH PIPE 06

54832063000

$100.32

THROTTLE CABLE 250 SXF 2005

77002091000

$75.17
