NEW PARTS

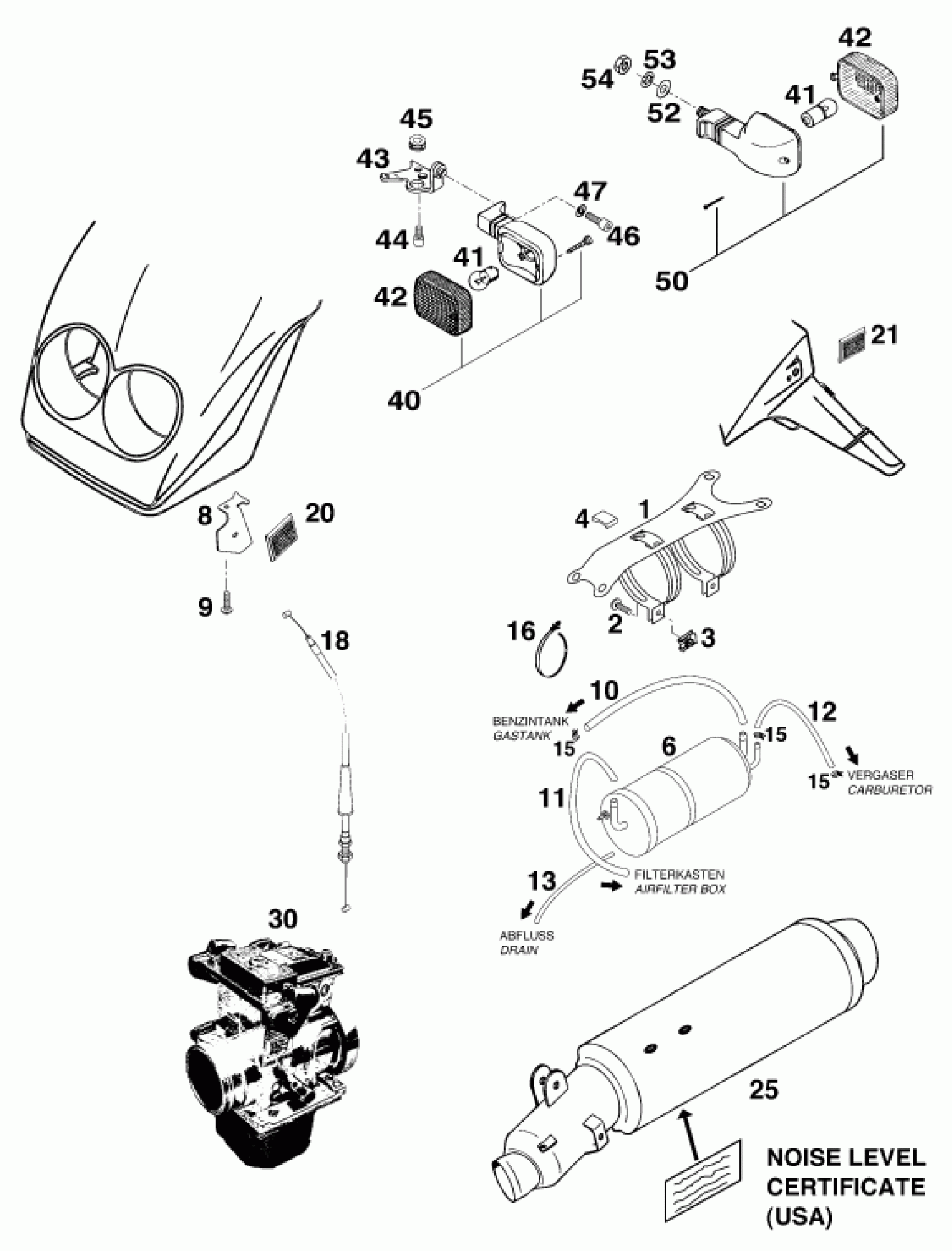

KTM 400 DUKE/ 20kW <1995 NEW PARTS Diagram
#
Description
Price
0
FLASHER LIGHT CPL. "EIE" (DOT)
58311112100
Unavailable
0
FLASHER CPL. R/S FRONT '95
58311112200
Unavailable
0
FLASHER SUPPORT R/S DUKE'94
58311121100
Unavailable
0
BRACKET REFLECTOR R/S '95
58312181000
Unavailable
1
RETAINING BRACKET CPL. AK-FIL.
58307083044
Unavailable
2
HH COLLAR SCREW M 6X20 WS=8
0014060203
$2.05
3
SNAP-NUT HOLDER M6 KP142
50235033300
$4.11
4
* DAMPING RUBBER
54307010000
Unavailable
6
* EVAP CANISTER
58307080144
Unavailable
8
BRACKET REFLECTOR L/S '95
58312081000
Unavailable
9
HH COLLAR SCREW M 6X25 WS=8
0014060253
$2.05
10
FUEL HOSE VITON 7X2MM
58007016001
$38.50
11
FUEL HOSE VITON 7X2MM
58007016001
Unavailable
12
PVC-HOSE 5 X 8 MM
31007007001
$5.88
13
PVC-HOSE 4X6MM
31007007101
Unavailable
15
YDNAC-CLAMP 10107 10MM
58007117000
Unavailable
16
* PLASTIC BAND
44011276000
Unavailable
18
THROTTLE CABLE RXC/DUKE USA 95
58302091200
Unavailable
20
* SIDE REFLECTOR ORANGE FRONT
16512180000
Unavailable
21
SIDE REFLECTOR RED REAR
16512180100
$7.10
25
* SILENCER "REMUS" DUKE USA '9
58305180100
Unavailable
30
CARBURETOR 38MM QWIK-SILVER II
58031701444
Unavailable
40
FLASHER LIGHT CPL.L/S FRONT'95
58311012200
Unavailable
41
BULB 12V 10W (BA15S)
44111015100
$3.08
42
FLASHER LENS ''EIE'' (DOT) '95
58311013100
$6.91
43
FLASHER SUPPORT L/S DUKE'94
58311021100
Unavailable
44
AH SCREW DIN0912-M 6X12
0912060123
$3.08
45
rubber grommet D=8mm open
31008060000
$2.05
46
AH SCREW DIN0912-M 6X20
0912060203
$2.05
47
WASHER DIN0125-A 6,4
0125060003
$1.49
50
FLASHER LIGHT CPL. "EIE" (DOT)
58311012100
Unavailable
52
washer DIN 125 A 10.5
0125100003
$2.05
53
LOCK WASHER DIN6797-J10,5 ZI
0797100003
$1.49
54
HEXAGON NUT DIN0934-M10X1,25
0934102003
Unavailable
