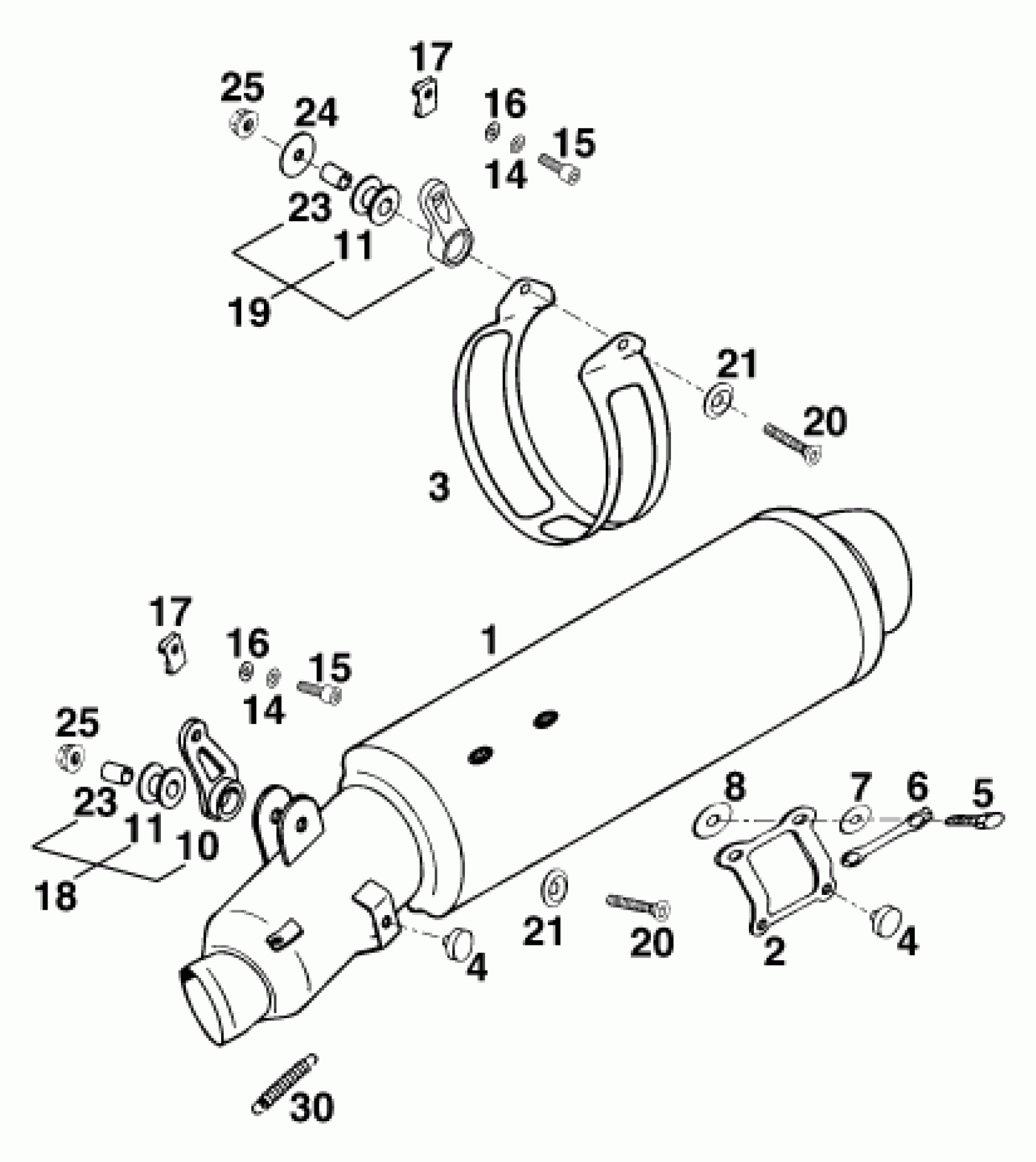

KTM 400 DUKE/ 20kW <1995> MAIN SILENCER Diagram

#

Description

Price

1

SILENCER "REMUS" DUKE'94

58305180000

Unavailable

2

HEAT PROTECTOR F.MAIN SILENCER

58305050200

Unavailable

3

CLAMP SILENCER "REMUS" D=112MM

58305161000

Unavailable

4

RUBBER BUFFER

54308042000

$3.08

5

0933080201

Unavailable

6

LOCK WASHER (SILENCER)

58305162000

Unavailable

7

WASHER 8X14X1 COPPER

53032068000

Unavailable

8

CU-SEAL RING 8 X 16 X 1

56530080000

$2.05

11

damp. component silicone grey

54305068100

$8.31

14

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

15

AH SCREW DIN0912-M 6X20

0912060203

$2.05

16

WASHER DIN0125-A 6,4

0125060003

$1.49

17

clip nut M6

54603048100

$4.11

18

SILENCER BRACKET CPL. LONG

58305165044

Unavailable

19

SILENCER BRACKET CPL. SHORT

58305165144

$22.90

20

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

21

SPECIAL WASHER ALU 8 X 24 MM

58303061000

$5.23

23

Spacer bushing 8.4X12X16

56505069000

$4.11

24

WASHER DIN9021-A 8,4

0021080003

$1.49

25

54310086000

Unavailable

30

TENSION SPRING L=55MM

51005063000

$5.98
