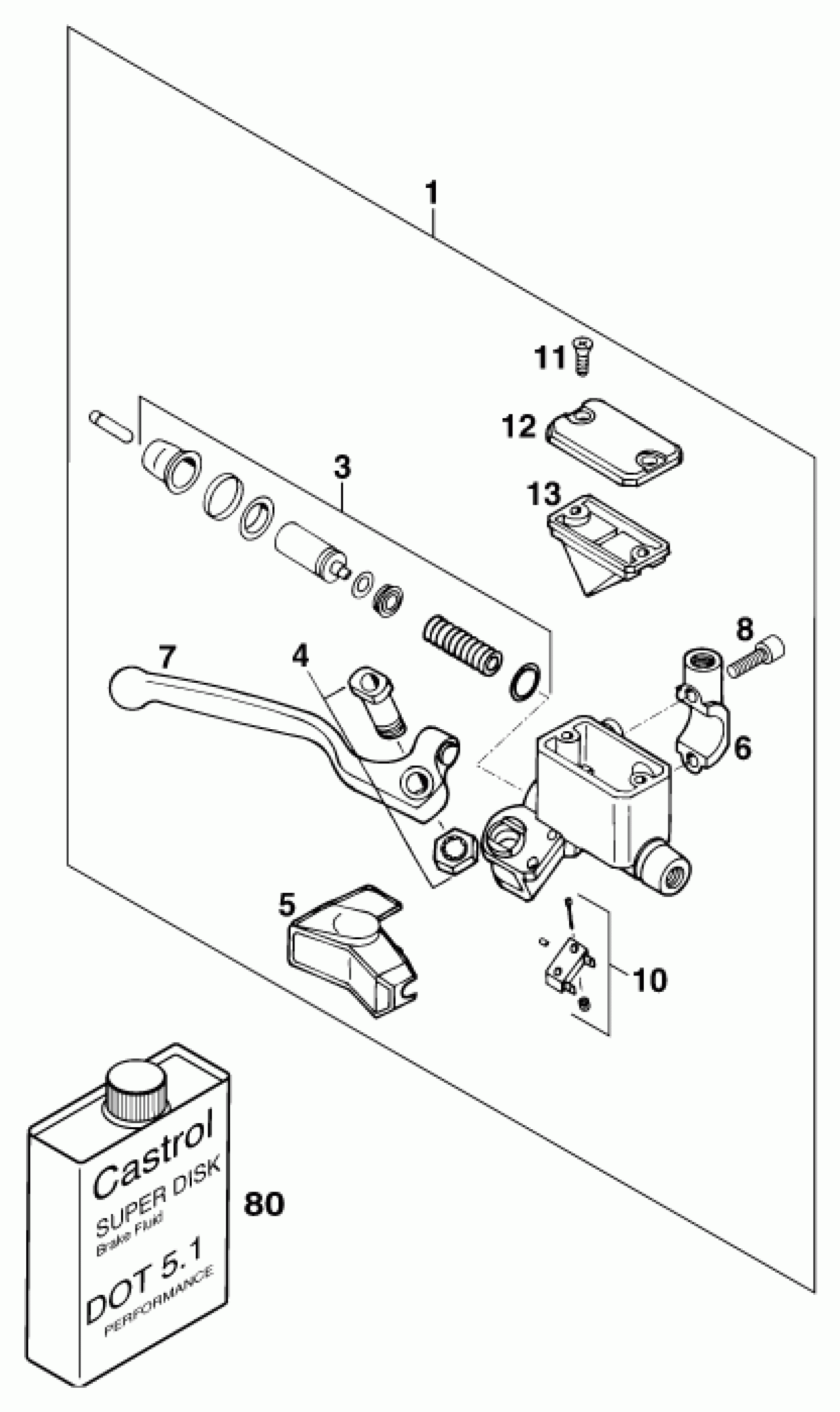

KTM 400 DUKE/ 20kW <1995> FRONT BRAKE CONTROL Diagram

#

Description

Price

0

BRAKE FLUID DOT 4.0

306054

Unavailable

1

HAND BRAKE CYLINDER DUKE'94

58313001100

Unavailable

3

REPAIR KIT CPL. D=13MM

58313050100

$35.90

4

LEVER SCREW CPL.

54413015000

$16.73

5

PLASTIC CAP

58313026100

Unavailable

6

CLAMP MIRROW M10X1,25

58012040050

$12.89

7

HAND BRAKE LEVER LOOSE BLACK

58313020100

$33.03

8

AH SCREW DIN0912-M 6X20

0912060203

$2.05

10

BRAKE LIGHT SWITCH CPL. FRONT

58313021100

$35.90

11

FLAT HEAD SCREW DIN0965-M 5X16

0965050163

$2.05

12

COVER

56513012500

Unavailable

13

* RUBBER BELLOWS

56513009500

Unavailable
