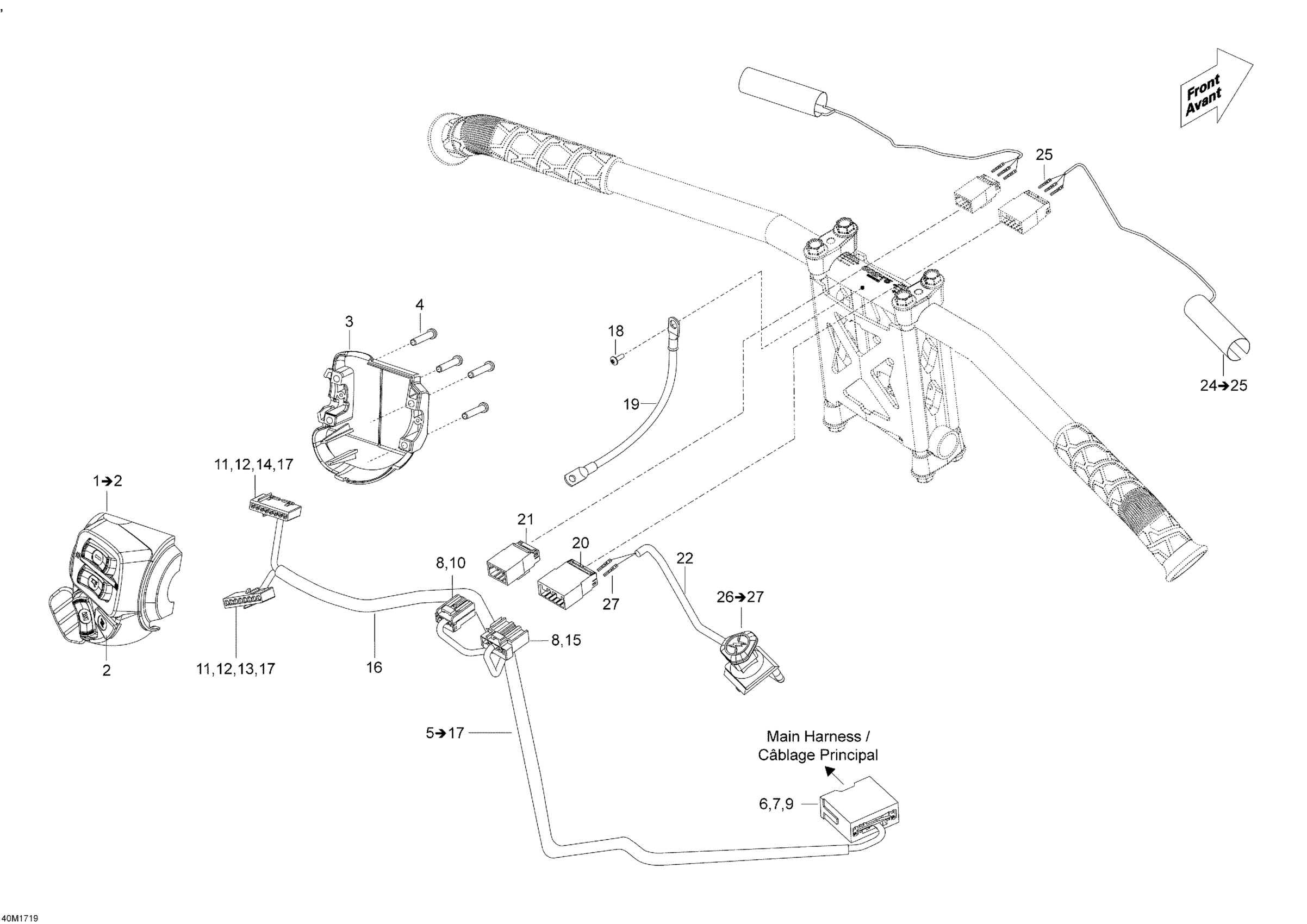

Ski-Doo 4- TUNDRA WT 550F, 2018 10- Steering Wiring Harness 2018 Diagram

#

Description
Price

1

LH Housing

515177021

$229.99

2

Start/RER Button

515176088

$20.99

3

Switch Housing Plate

515175926

$20.99

4

Torx Screw #8-18

250000263

$1.04

5

Steering Wiring Harness Ass'y | Includes 3200 to 3200n

515176995

$114.99

6

Male Terminal

515175232

$1.58

7

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

8

Female Terminal

515175231

$4.39

9

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

10

Female Terminal Housing, 6 Circuits

515175543

$9.49

11

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

12

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

13

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

14

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

15

Female Terminal Housing, 8 Circuits

515175819

$7.62

16

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

17

Female Terminal

515175941

$2.69

18

Pan Screw Forming, 7500C

250000690

$2.11

19

Ground Cable

515177668

$114.99

20

Male Terminal Housing, 8 Circuits

515175817

$8.79

21

Male Terminal Housing, 6 Circuits

515175662

$8.79

22

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

24

Heating Element

506152467

$36.99

25

Male Terminal

515175232

$1.58

26

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

27

Male Terminal

515175232

$1.58
