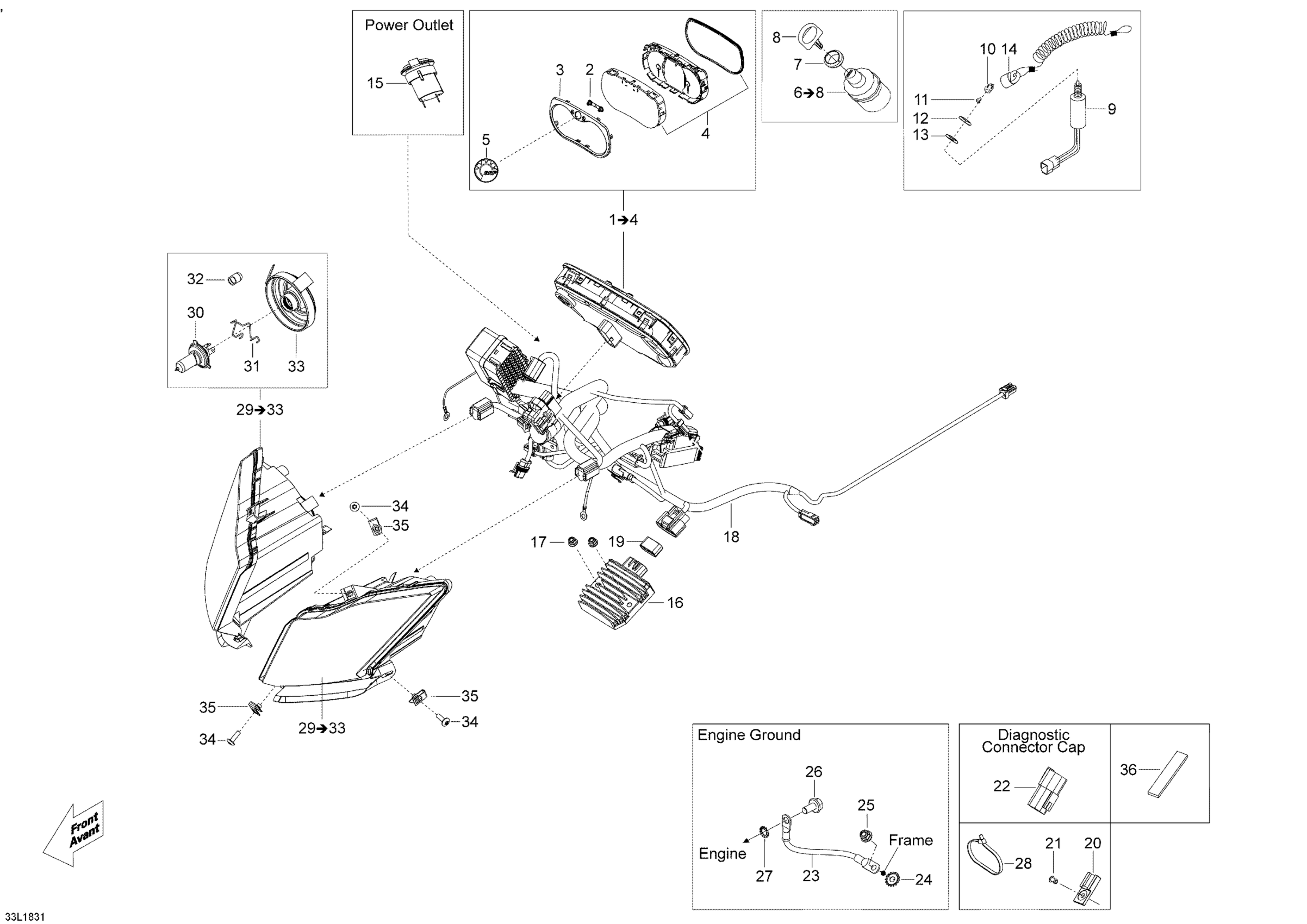

Ski-Doo TUNDRA WT 550F, 2018 Electrical System Diagram

#

Description
Price

1

Indicator | Includes 10 to 10c

515177279

$569.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129370

$11.49

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

Ignition Swirch

515177063

$50.99

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Brake Switch

515175653

$19.49

10

Switch Nut

515145900

$12.12

11

Plunger Cap

570151100

$9.85

12

Flat Washer

250200084

$3.38

13

RH Threaded Hex. Jam Nut M10

732610010

$0.74

14

Cap Ass'y

515178283

$38.99

15

DC Outlet

710001248

$37.99

16

Voltage Regulator

515176699

$153.49

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Main Harness

515177505

$369.99

19

Lock

515176681

$20.99

20

Clip

270000141

$11.49

21

Pop Rivet 3/16"

390402200

$0.35

22

Connector Plug

710004904

$8.79

23

Ground Wire

515176745

$28.99

24

Lock Washer Serrated M6

250200041

$1.15

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

27

Serrated Lock Washer 8 mm

234481608

$1.15

28

Tie Wrap 94 mm | 4X4

293750001

$1.03

28

Tie Wrap 142 mm

293750002

$1.25

28

Tie-Rap 180 mm

414115200

$0.11

28

Tie Wrap 368 mm

293750008

$1.04

29

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

29

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

30

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Cap

515176498

$12.99

33

Rubber Cap Protector

219800280

$19.49

34

Torx Screw M6 X 20

250000722

$1.68

35

Panel Nut M6 X 1.0

250100198

$2.11

36

Velcro

293740059

Unavailable
