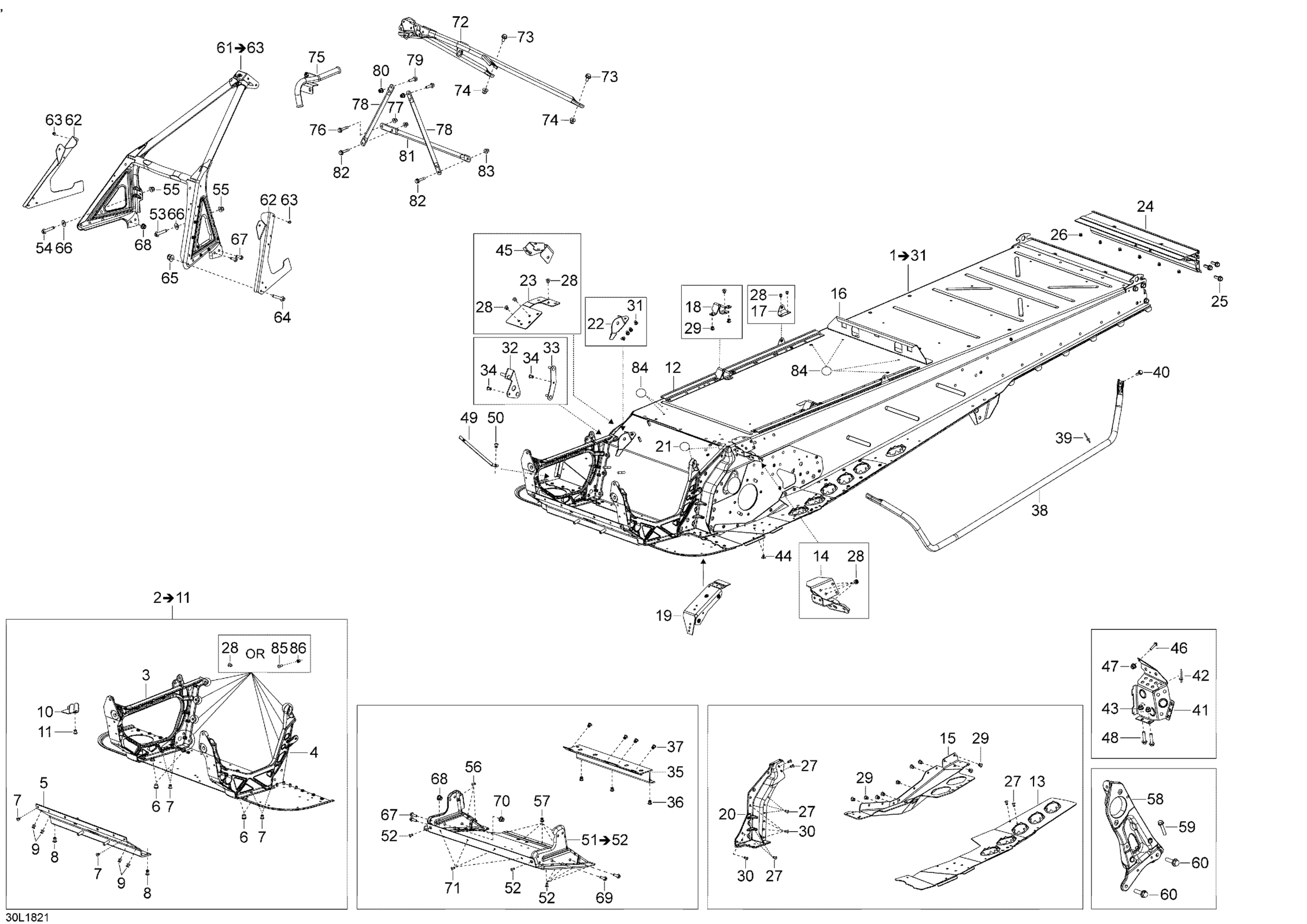

Ski-Doo TUNDRA WT 550F, 2018 Châssis Tundra WT - 550F Diagram

#

Description
Price

1

Frame | Inclus 1 à 31

518329362

Unavailable

2

Module E | Includes 10a to 10n

518328817

$855.94

3

RH Member

518326795

$252.21

4

LH Member

518325558

$223.85

5

Front Member | Includes 10as to 10at

518325818

$52.96

6

Clinch Nut Hexsert M8

605636002

$7.09

7

Avex Rivet

390909100

$0.28

8

Hemlock Rivet 6.5 mm

293150120

$7.01

9

Hemlock Rivet, 6.5 mm

293150119

$3.88

10

Muffler Support

518328433

$16.39

11

Rivet Hucklok

293150163

$2.73

12

Fastening rail

518326107

$14.90

13

Black - LH Footrest

518328846

Unavailable

13

Black, RH Footrest

518328847

Unavailable

14

Fastening Bracket

605355235

Unavailable

15

LH Drive Axle Cover

518328016

$186.54

15

RH Drive Axle Cover

518328017

$186.54

16

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

17

Seat Box Bracket

518329164

Unavailable

18

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

18

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

19

Clinch Nut plate

518326430

$44.75

20

LH Frame Corner

518325524

$50.72

20

RH Frame Corner

518328024

$50.72

21

Adhesive Patch

518325560

$4.21

22

RH Support

518326520

$12.42

23

Chain Case Support

518327877

Unavailable

24

Rear Profile

518328748

$211.16

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

26

Hemlock Rivet, 6.4 mm

293150174

$6.24

27

Avex Rivet

390909100

$0.28

28

Avex Rivet

390909200

$0.28

29

Hemlock Rivet, 6.5 mm

293150119

$3.88

30

Rivet

293150183

$2.00

31

Hemlock Rivet, 6.5 mm

293150096

$3.07

32

Chain Case Counter Plate Front

518328028

Unavailable

33

Chain Case Counter Plate Rear

518328029

Unavailable

34

Pop Rivet 3/16"

390402200

$0.30

35

Engine Support

518326719

$44.00

36

Rivet Hucklok

293150163

$2.73

37

Avex Rivet

390909200

$0.28

38

LH Footboard Support Tube

518326963

$123.10

38

RH Footboard Support Tube

518326964

$123.10

39

Avex Rivet

390909100

$0.28

40

Hex. Flange Screw M6 x 20

207662056

$0.96

41

LH Toe Hook

518328881

Unavailable

41

RH Toe Hook

518328882

Unavailable

42

Avex Rivet

390909200

$0.28

43

Clinch Nut M6 Hexsert

605636003

$4.00

44

Black, Dart

414644300

$0.90

45

Fastening Bracket

518327878

$24.60

46

Hex. Flange Screw M6 x 20

207662056

$0.96

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

48

Torx Head Screw M6 X 16

250000717

$2.00

49

Spring Bracket

514054846

$4.21

50

Avex Rivet

390909200

$0.28

51

S Module | Includes 300 to 300a

518326213

$752.96

52

Avex Rivet

390909200

$0.28

53

Hex. Flange Screw M6 X 25

207662544

$0.61

54

Hex. Flange Screw M6 X 25

207662544

$0.61

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

56

Avex Rivet

390909100

$0.28

57

Avex Rivet

390909200

$0.28

58

Pulley Support

518328434

$126.84

59

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

60

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.12

61

Front Member Ass'y | Includes 700 to 700d

518327004

$485.04

62

LH Bumper Fastener

502007077

$51.46

62

RH Bumper Fastener

502007078

$51.46

63

Avex Rivet

390909200

$0.28

64

Hex. Flange Screw M6 X 20

207662044

$1.91

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

66

Flat Washer

224061201

$1.27

67

Hex. Flange Screw M6 X 20

207662044

$1.91

68

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

69

Hex. Flange Screw M6 X 20

207662044

$1.91

70

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

71

Avex Rivet

390909200

$0.28

72

Upper Support Tube

518329105

$184.30

73

Hex. Screw M8 X 20

207182044

$0.70

74

Hex. Elastic Stop Nut M8

232581414

$0.54

75

Guide Tube RER

512060920

$44.75

76

Hex. Flange Screw M6 X 25

207662556

$4.15

77

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

78

Upper Lateral Column Support

518325114

$20.12

79

Hex. Flange Screw M6 x 20

207662056

$0.96

80

Elastic Flange Nut M6 X 1.0

233261416

$2.00

81

Upper Column

518327876

$25.34

82

Hex. Flange Screw M6 X 25

207662556

$4.15

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

84

Adhesive Patch

518325560

$4.21

85

Hex. Flange Screw M6 X 20

207662044

$1.91

86

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
