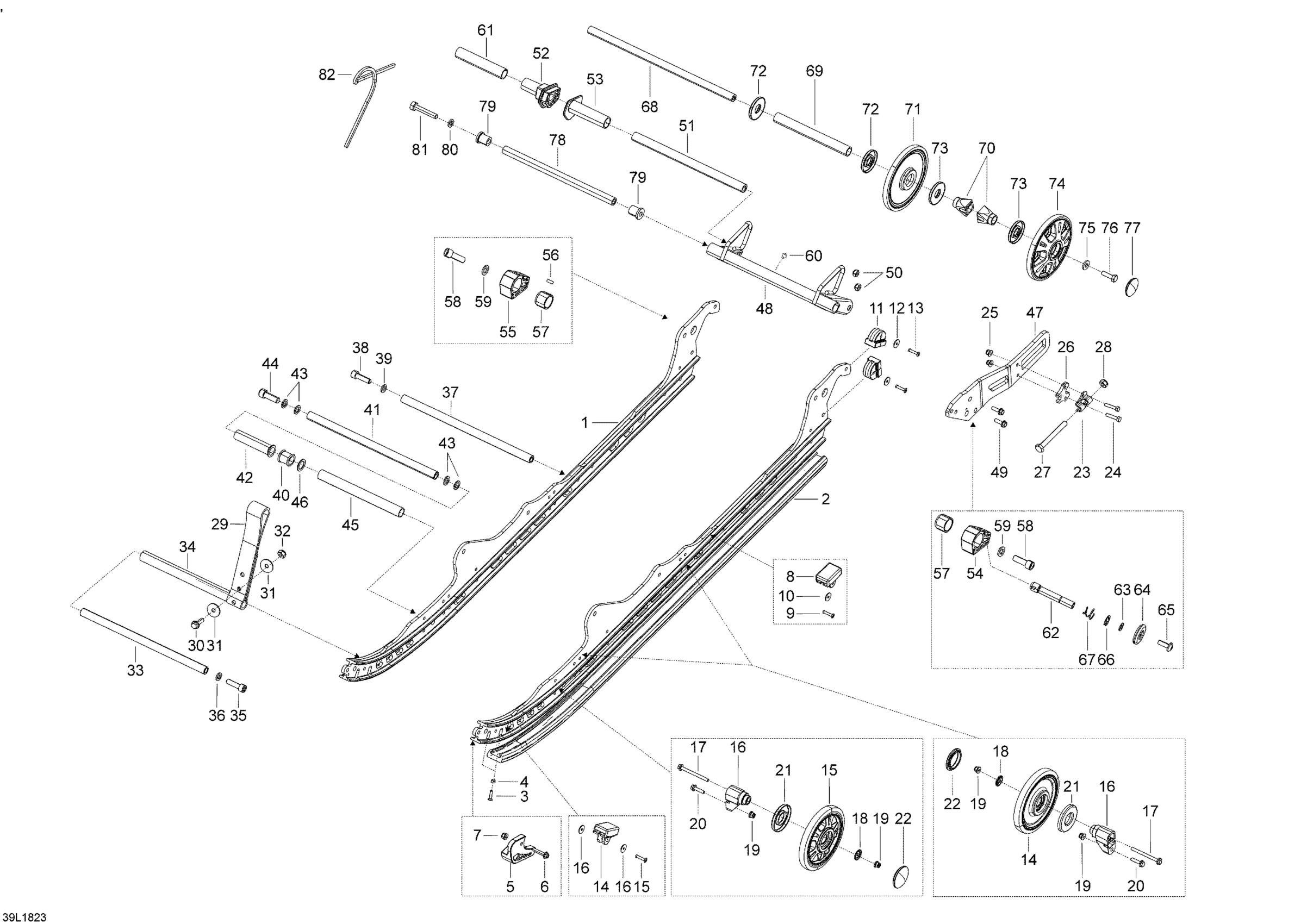

Ski-Doo TUNDRA WT 550F, 2018 Rear Suspension Tundra - WT Diagram

#

Description
Price

1

Spring Support Kit

861805547

$8.14

2

Spring Support Kit

861805547

$8.14

3

Socket Head Screw M8 X 25

205082544

$0.92

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Rocker

503192211

$78.43

6

Bushing

503193037

$15.35

7

Bushing | Includes 240d to 240d1

503189282

$4.18

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

9

Elastic Locking Nut M10 X 1.5

233601416

$1.68

10

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$212.28

11

Grease Fitting

408200700

$2.80

12

Lower Shaft

503191390

$27.66

13

Bushing

503189324

$11.17

14

Washer

503192496

$0.75

15

Hex. Screw S.Grip M10 X 55

250000605

$6.18

16

Upper Shaft

503191391

$34.58

17

Bushing

503189324

$11.17

18

Washer

503189564

$0.72

19

Hex. Screw S.Grip M10 X 55

250000605

$6.18

20

Axle Pivot

503191396

$78.43

21

Bolt 369MM

503195156

$25.35

22

Washer

503189157

$3.20

23

Hex. Flange Elastic Nut M8

233281414

$1.14

24

Rear Arm Ass'y | Includes 24 To 37

503191709

Unavailable

25

Black, Dart

414644300

$0.78

26

Not Available As Spare Part - Friction Washer

Unavailable

27

LH Cam Adjuster

503191565

$13.95

28

RH Cam Adjuster

503191566

$13.95

29

E-Circlip

293370013

$0.62

30

Swivel Bushing

503191555

$5.71

31

Pivot Arm | Includes 3000j to 3000j3

503195154

$96.12

32

Lower Shaft

503192330

$46.12

33

Cushion

503191640

$5.71

34

Washer | 7415/7416. 7417/7418.

503189148

$2.72

35

Socket Head Screw M12 X 35

205523554

$4.28

36

Grease Fitting

408200700

$2.80

37

Cushion

503191451

$11.17

38

Upper Shaft

503191405

$89.20

39

Washer

503190328

$11.34

40

Socket Set Screw M6 X 8

206260844

$1.25

41

Wheel 165 | Includes 3070 to 3070a

503190803

$49.97

42

Retaining Ring

503194366

$37.66

43

Washer

503192491

$4.38

44

Socket Screw M12 X 35

250000484

$6.18

45

Black RH Square Spring

503192377

$109.20

46

Black LH Square Spring

503192378

$109.20

47

Link Rod

503191765

$17.66

48

Swivel Bushing

503191555

$5.71

49

Axle Bar (Long)

503190643

$15.35

50

Axle Bar (Long)

503190643

$15.35

51

Hex. Screw M8 X 90

207089044

$2.82

52

Hex. Screw M8 X 90

207089044

$2.82

53

Washer

503189157

$3.20

54

Hex. Flange Elastic Nut M8

233281414

$1.14

55

Rear Shock

503193520

$238.43

56

Bushing

414936000

$11.55

57

Hex. Flange Screw M8 X 40

207684044

$1.25

58

Hex. Flange Elastic Nut M8

233281414

$1.14

59

Not Available As Spare Part - Friction Washer

Unavailable

60

Center Shock

503192266

$157.66

61

Adjustment Cam

505073625

$12.18

62

Black, Spring 242MM

503191880

$66.89

63

Protector

503193663

$35.35

64

Spring Guide

503191872

$2.18

65

Spring Stopper

706200881

$10.30

66

Urethane Bushing

503189117

$6.88

67

Bushing | Includes 240d to 240d1

503189282

$4.18

68

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

69

Elastic Locking Nut M10 X 1.5

233601416

$1.68
