Description

Price

10

Handle Bar

506152722

$148.49

20

Grip | WAKE This part replaces M5340464.

506152483

$12.17

25

Heating Element

506152467

$36.99

400

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$84.99

410

Steering Support | Includes 40 to 40a

506152751

$13.99

420

Hex. Flange Screw M8 x 40

250000285

$0.82

500

Deep Black, Steering Pad

506152541

$41.99

1000

Steering Column

506152963

$309.99

1010

Upper Half-Housing

506152508

$9.23

1012

Lower Half-Housing

506152217

$7.62

1014

Upper Anti-Vibration Gasket

506152509

$4.79

1016

Lower Vibration Ring

506152518

$4.79

1020

Housing Bushing

506152297

$12.99

1022

Lower Housing Bushing

506152388

$17.39

1028

Stopper Plate

506152389

$12.99

1030

Hex. Flange Screw M6 X 70

207667056

$4.44

1040

Hex. Flange Screw, M8 X 65

207686544

$13.16

1050

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1055

Hex. Flange Elastic Nut M8

233281414

$1.47

1220

Hex. Screw M10 X 40

207004044

$4.76

1230

Elastic Stop Nut M10

232500416

$1.90

1250.001

Tie Rod

506152436

$62.49

1250.002

LH Thread Ball Joint

506152081

$41.49

1250.003

LH Threaded Hex. Jam Nut M10

250100016

$0.74

1250.004

RH Threaded Ball Joint

506152019

$41.49

1250.005

RH Threaded Hex. Jam Nut M10

732610010

$0.74

1280

Washer

506152582

$4.55

1290

Hex. Screw M10 X 45

207004544

$1.69

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

1350

Cushion

506152404

$26.49

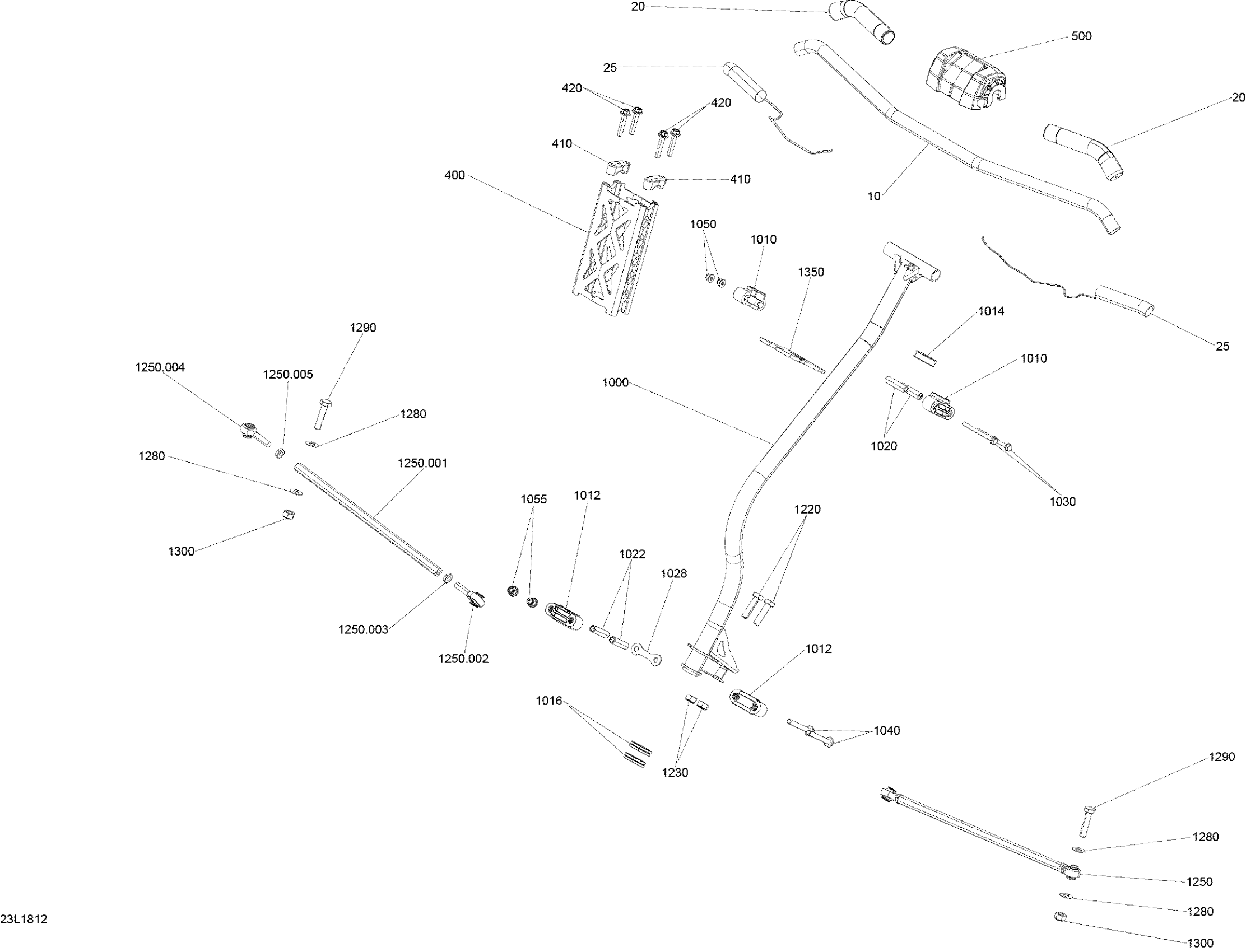

Ski-Doo 4- TUNDRA WT 550F, 2018 07- Steering Tundra - 550F Diagram
