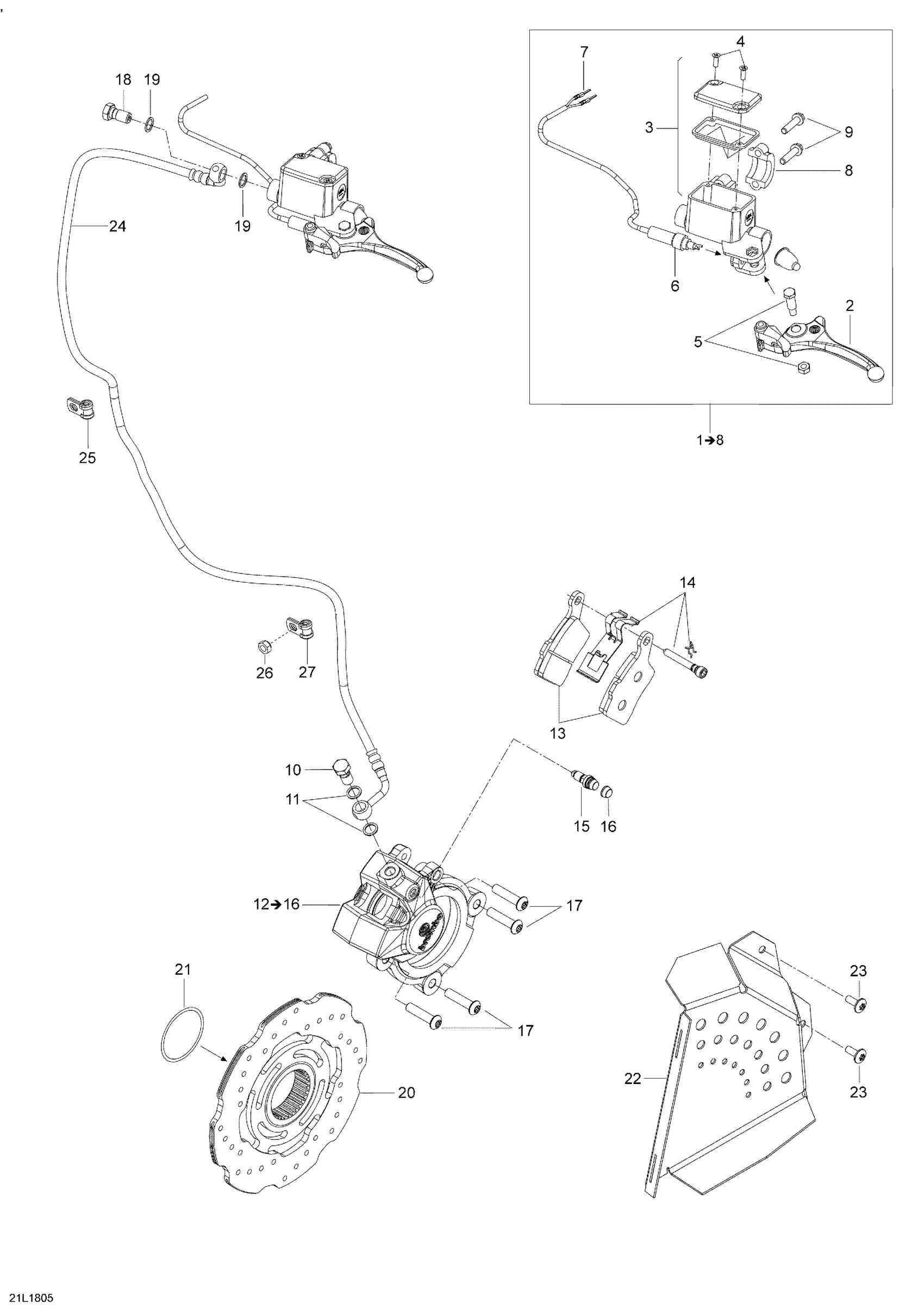

Ski-Doo TUNDRA WT 550F, 2018 Brakes Tundra - 550F WT Diagram

#

Description
Price

1

Master Cylinder Ass. | Includes 10 to 10g

507032596

$224.99

2

Lever With Parking Lock

507032476

$99.99

3

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

4

Screw M4 X 20

415129356

$2.22

5

Pin Ass'y

415030000

$19.99

6

Microswitch This part replaces 507032592.

507032597

$68.99

8

Clamps | Includes 75a to 75b

719000049

$14.83

9

Hex. Flange Screw M6 X 25

250000447

$2.11

10

Banjo Bolt

507032551

$5.61

11

Copper Washer

705601628

$4.44

12

Brake Caliper | Includes 200 to 200c

507032720

$349.49

12

Brake Caliper | Includes 200 to 200c

507032720

$349.49

13

Brake Pads Kit

507032473

$52.99

14

Brake Spring Kit

507032722

$37.99

15

Bleeder

507032475

$19.99

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

18

Banjo Bolt

507032551

$5.61

19

Copper Washer

705601628

$4.44

20

Disk

507032513

$243.99

21

O-ring

293300209

$2.32

22

Disk Protector

507032525

$65.99

23

Hex. Flange Elastic Nut M6

233261494

$1.58

24

Hose, Steel Braided | WT

507032548

$47.49

25

Open Clamp

414108400

$3.17

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Clamp And Screw Kit

507032477

$23.99

28

Hex. Flange Screw M6 X 25

250000447

$2.11

29

Counter Plate | Includes 505 to 505a

518328661

$19.99

30

Hexagonal Cap

293900129

$2.11
