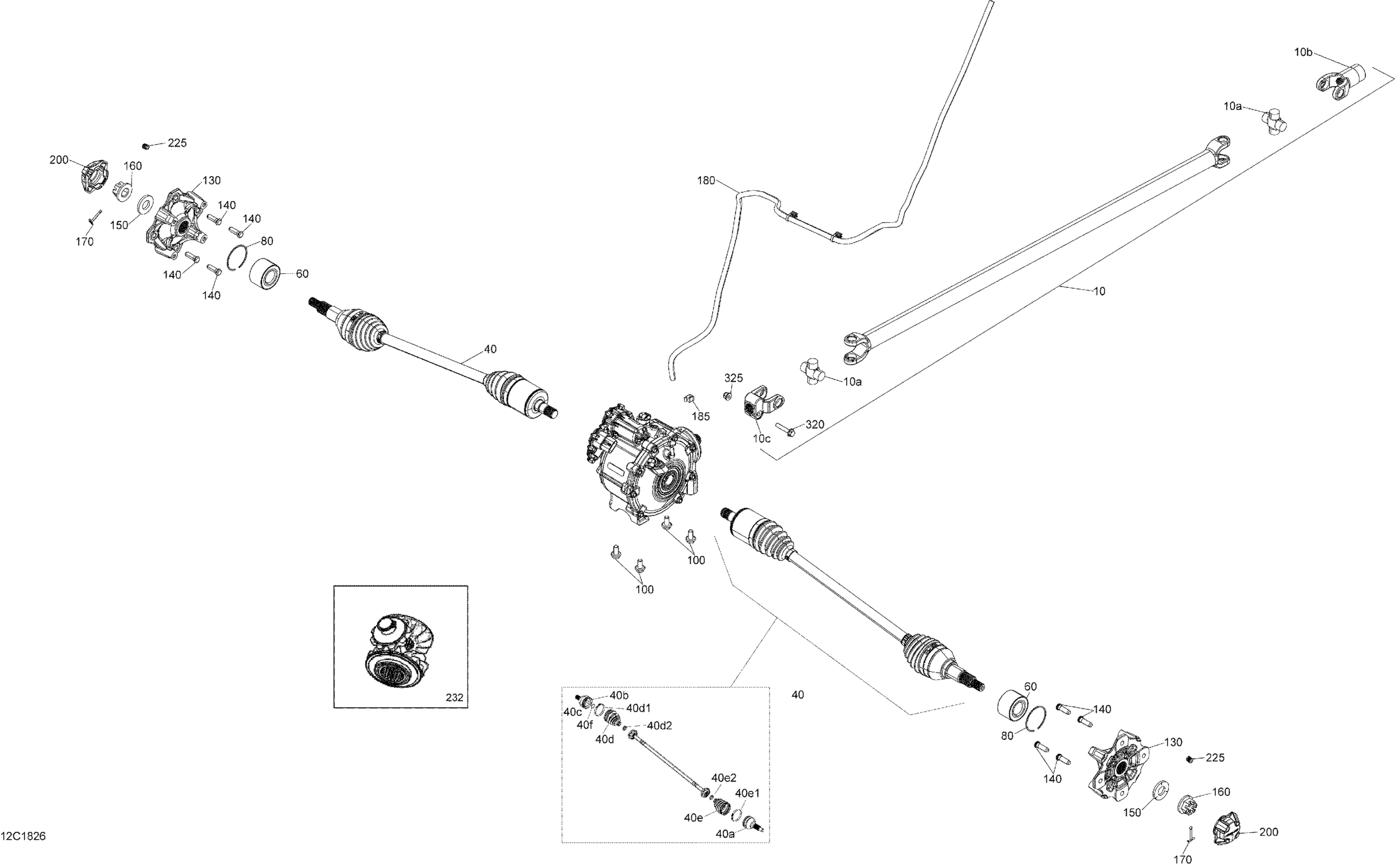

Can-Am Traxter HD10 - XMR, 2018 Front Drive - Main Parts - Defender XMR Diagram

Description

Price

Axle Ass'y

705402125

$203.05

10a

J-Joint Cross Kit

715900402

$87.66

10b

Fixed Yoke

715900400

$59.97

10c

Yoke

715900401

$36.89

40>40f

Half Shaft

705402228

$263.82

40a

CV Joint

715900567

$253.82

40b

LH Plunging Joint

715900568

$267.66

40c

Circlip

715900569

$5.52

40d

Boot Kit, Wheel Side

705401354

$41.51

40d1

Oetiker Clamp, Large

715900260

$7.84

40d2

Oetiker Clamp, Small

715900261

$4.39

40e

Boot Kit, Différential Side

705401355

$41.51

40e1

Oetiker Clamp, Small

715900261

$4.39

40e2

Oetiker Clamp, Large

715900262

$7.84

40f

O-ring

715900580

$2.31

Ball Bearing

293350150

$51.93

Circlip

293370019

$4.98

100

Hex. Flange Screw M10 X 20

207502046

$1.74

130

Wheel Hub

705502338

$115.35

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

150

Conical Spring Washer M20

250200170

$11.00

160

Castle Nut M20

250100193

$6.66

170

Cotter Pin

250400084

$1.79

180

Polyurethane Hose 10000Mm Long

219704410

$46.12

185

Clip

414227300

$1.45

200

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.06

225

Valve Cap

293000110

$1.18

232

Side Gear Kit

703501023

$1,174.99

320

Hex. Flange Screw M8 X 42

250001050

$0.95

325

Hex. Elastic Flange Nut M8

233281416

$1.25
