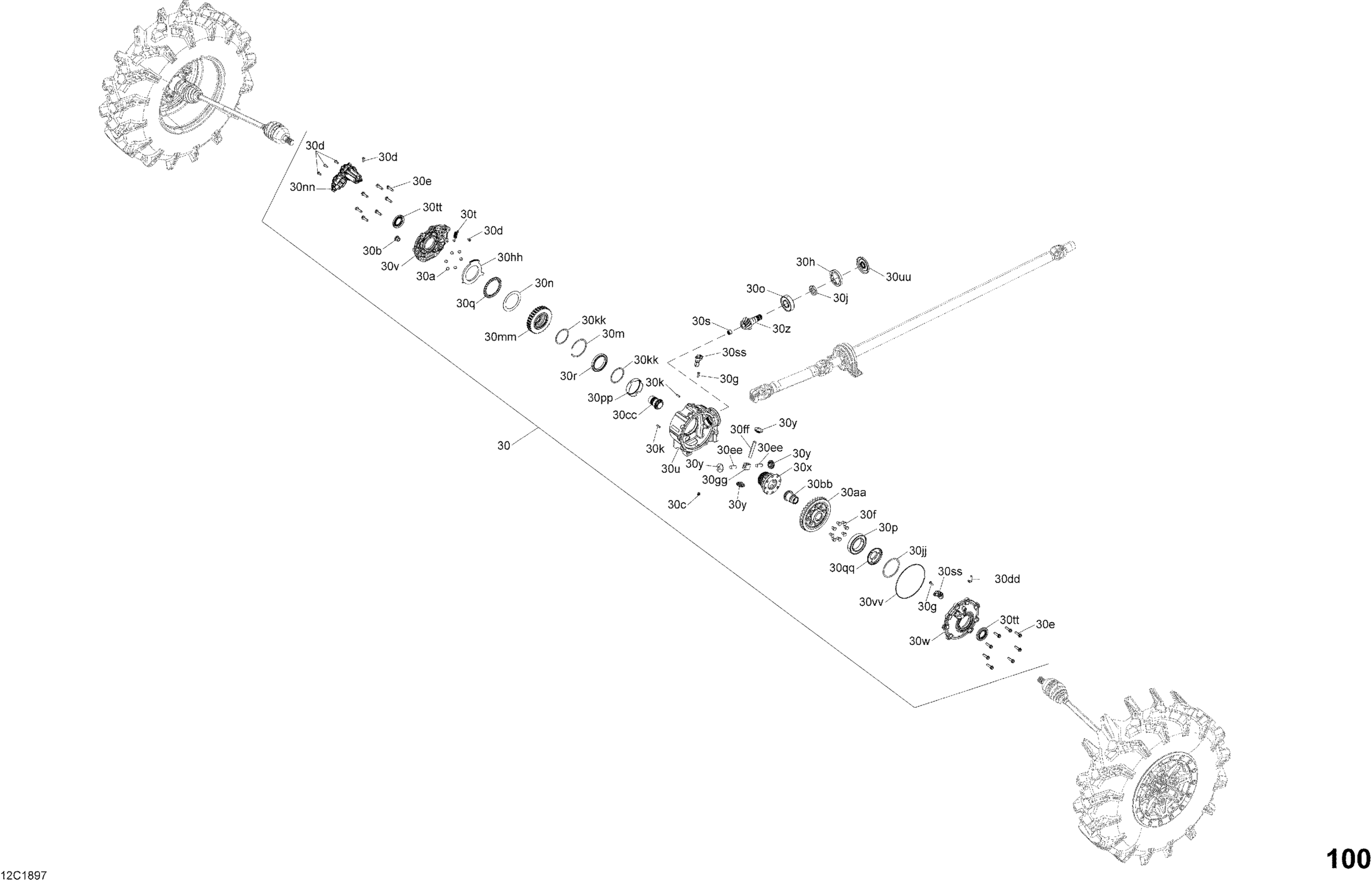

Can-Am Traxter HD10 - XMR, 2018 Front Drive - Differential Parts - Maverick X3 Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30vv

705402767

Unavailable

30a

Ball

715900564

$6.50

30aa

Gear 36T

715900547

$409.99

30b

Fill Level Plug

705501889

$20.49

30bb

Gear 14T

715900546

$88.99

30c

Fill Level Plug M10

715900563

$27.49

30cc

Gear 14T

715900545

$88.99

30d

Torx Screw M6 X 16

705402845

$11.05

30dd

Vent Valve

705401935

$16.49

30e

Bolt

705501886

$7.69

30ee

Pinion Pin 0.5 X 1.250

715900543

$21.99

30f

Hex Screw 3/8 X 0.500

715900561

$13.76

30ff

Pinion Pin 0.5 X 3.000

715900542

$21.99

30g

Torx Screw M6 X 12

715900560

Unavailable

30gg

Coupler, Pin

715900541

$65.49

30h

Nut M75 X 1.5

705401819

$23.99

30hh

Ramp Ball

715900540

$77.49

30j

Nut M27 X 1.5

705401820

$20.99

30jj

Shim 74.50 X 66.00

715900539

$179.99

30k

Dowel Pin

715900559

$6.67

30kk

Shim 3.735 X 3.300

715900538

$274.99

30m

Retainin Ring

715900558

$26.99

30mm

Clutch Pack

715900537

$239.99

30n

Thrust Washer

715900557

$29.49

30nn

Actuator Ass'y

715900640

$509.99

30o

Ball Bearing

705401821

$31.99

30p

Ball Bearing 60 X 95 X 18

715900556

$43.49

30pp

Cross Pin Retainer

715900535

$28.99

30q

Needle Bearing

715900555

$19.99

30qq

Tone Ring 30T

715900534

$35.99

30r

Ball Bearing 65 X 85 X 10

715900554

$94.49

30s

Ball Bearing | After May 30, 2014

705402848

$49.99

30ss

Speed Sensor

715900532

$104.99

30t

Spring

715900553

$29.99

30tt

Oil Seal

715900531

$26.49

30u

Housing

715900674

$144.99

30uu

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

30v

RH Cover

715900632

$142.99

30vv

O-Ring

715900530

$13.16

30w

LH Cover

715900631

$134.99

30x

Housing

715900617

$121.99

30y

Pinion 10T

715900548

$88.99

30z

Pinion 10 th.

705401933

$194.99
