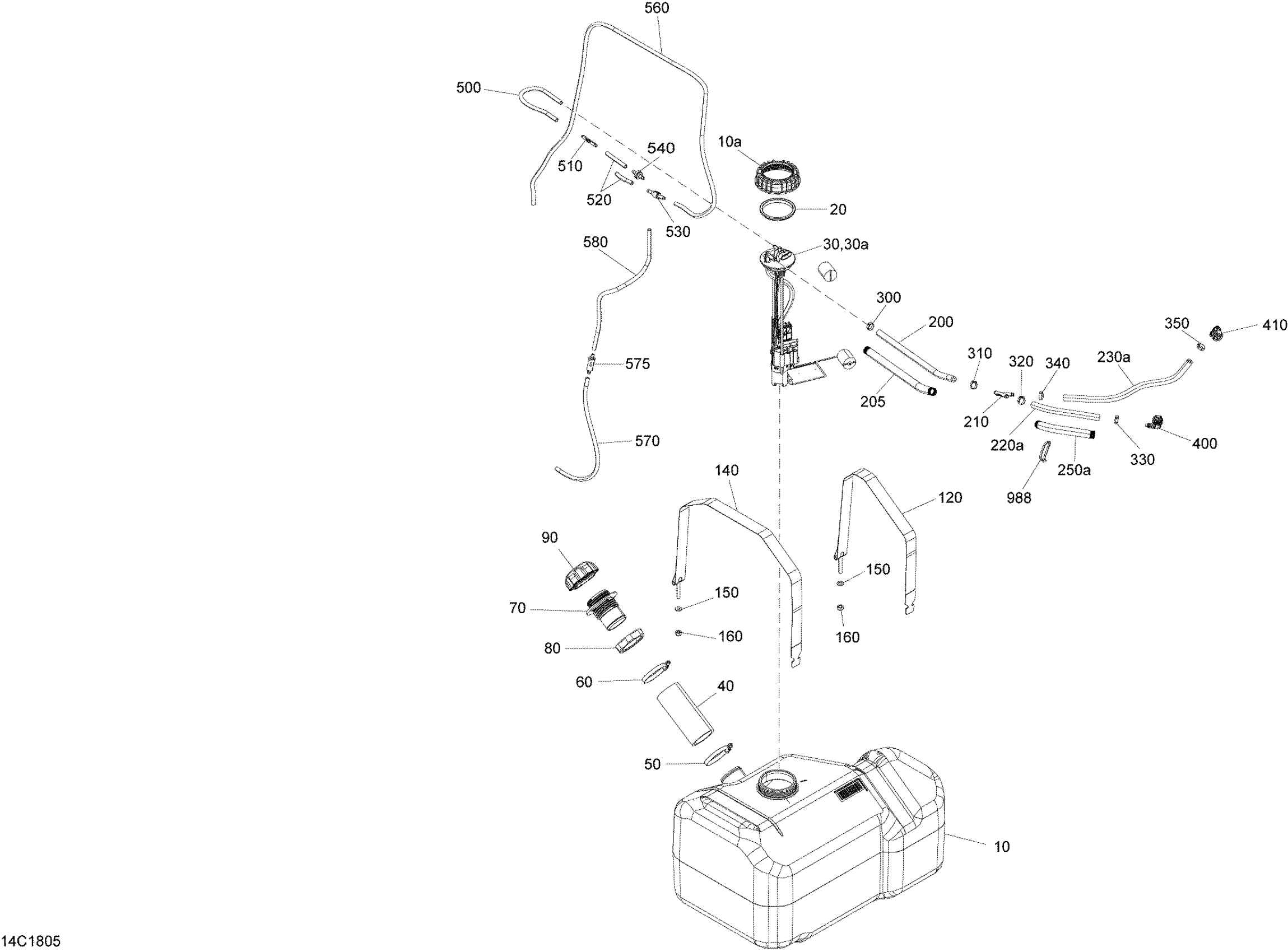

Can-Am Traxter HD10 - XMR, 2018 Fuel Defender HD10 - Package XMR Diagram

#

Description
Price

10>10a

Fuel Tank

709000591

$271.61

10a

Fuel Pump Module Nut

709000328

$12.43

20

Seal

709000208

$12.16

30>30a

Fuel Pump | Includes 30 to 30a

709001189

$323.94

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$68.63

40

Hose Filler Neck

709000595

$28.33

50

Norma Clamp

293650081

$11.33

60

Norma Clamp

293650081

$11.33

70

Filler Neck

709000867

$14.33

80

Filler Neck Nut, Fuel

211100012

$11.51

90

Fuel Cap

709000868

$29.07

120

Fuel Tank Strap

709000521

$38.03

140

Fuel Tank Strap

709000648

$38.03

150

Flat Washer 8 mm

234081410

$0.79

160

Hex. Elastic Nut M8 Brass

232581200

$1.48

200

Was 709000163 Fuel Line

219704440

$25.34

205

Tubing 16 Mm 1000Mm Long

219704408

$7.15

210

Y-Fitting, 5/16''

293710136

$5.76

220a

Was 709000163 Fuel Line

219704440

$25.34

230a

Was 709000163 Fuel Line

219704440

$25.34

250a

Tubing 16 Mm 1000Mm Long

219704408

$7.15

300

Crimp Clamp, 15.3-706R

293650047

$3.03

310

Crimp Clamp, 15.3-706R

293650047

$3.03

320

Crimp Clamp, 15.3-706R

293650047

$3.03

330

Crimp Clamp, 15.3-706R

293650047

$3.03

340

Crimp Clamp, 15.3-706R

293650047

$3.03

350

Crimp Clamp, 15.3-706R

293650047

$3.03

400

Quick Attach 90°

275500700

$14.48

410

Quick Attach 90°

275500700

$14.48

500

Polyurethane Hose 10000Mm Long

219704410

$52.96

510

Y-Fitting

293710059

$9.40

520

Polyurethane Hose 10000Mm Long

219704410

$52.96

530

Check Valve

513033469

$29.07

540

Check Valve

275500398

$9.84

560

Polyurethane Hose 10000Mm Long

219704410

$52.96

570

Polyurethane Hose 10000Mm Long

219704410

$52.96

575

Filter

709000330

$7.48

575

Filter

709000330

$7.48

580

Polyurethane Hose 10000Mm Long

219704410

$52.96

988

Tie Wrap 142 mm

293750002

$1.01

988

Tie Wrap 368 mm

293750008

$0.97

988

Tie-Rap 180 mm

414115200

$0.10
