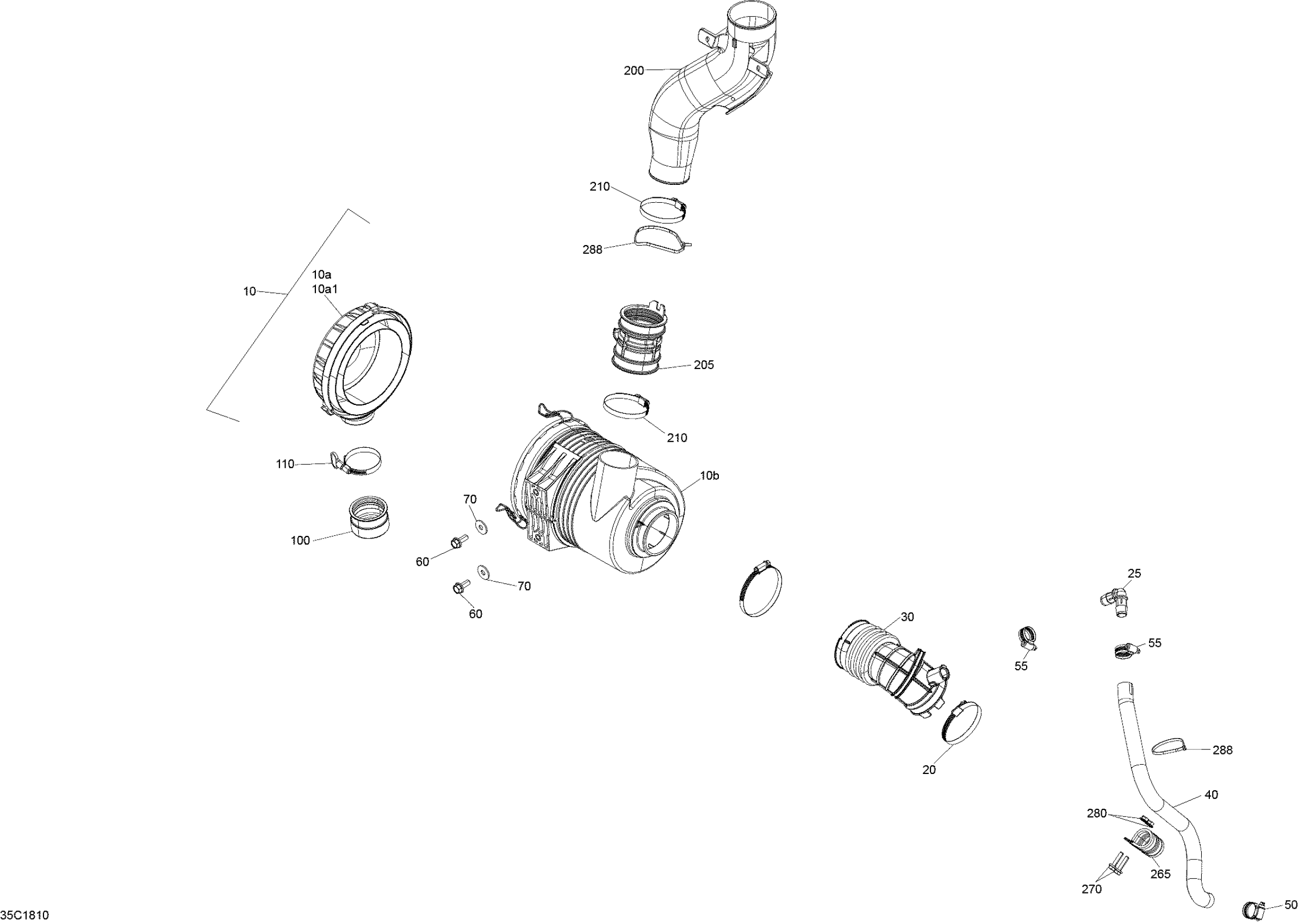

Can-Am Traxter HD10 - XMR, 2018 Air Intake Defender - HD10 - XMR Diagram

Description

Price

10>10b

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$184.99

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$93.99

10a1

O-Ring

715900514

$19.49

10b

Air Filter

715900394

$52.99

Norma Clamp

293650091

$11.12

Elbow Fitting 90

293710155

$9.39

Air Intake Adaptor

707800759

$27.99

Blow-By Hose | Engine HD8

707800716

$28.99

Tridon Gear Clamp

293650173

$3.09

Tridon Gear Clamp

293650173

$3.09

Hex. Flange Screw M8 X 20

207682044

$1.15

Flat Washer 8 mm

234082410

$1.47

100

Vacuator Cap

707800769

$38.99

110

Turn Key Clamp

293650269

$7.73

200

Air Inlet Tube | Includes 600 to 600b

706600280

$53.99

205

Flexible Joint

706600203

$28.99

210

Norma Clamp

293650091

$11.12

265

Hose Anchor

709200036

$11.12

270

Hex. Flange Screw M6 X 16

207661646

$1.36

280

Hex. Flange Nut M6

233061414

$1.68

288

Tie Wrap 368 mm

293750008

$1.04

288

Tie-Rap 180 mm

414115200

$0.11
