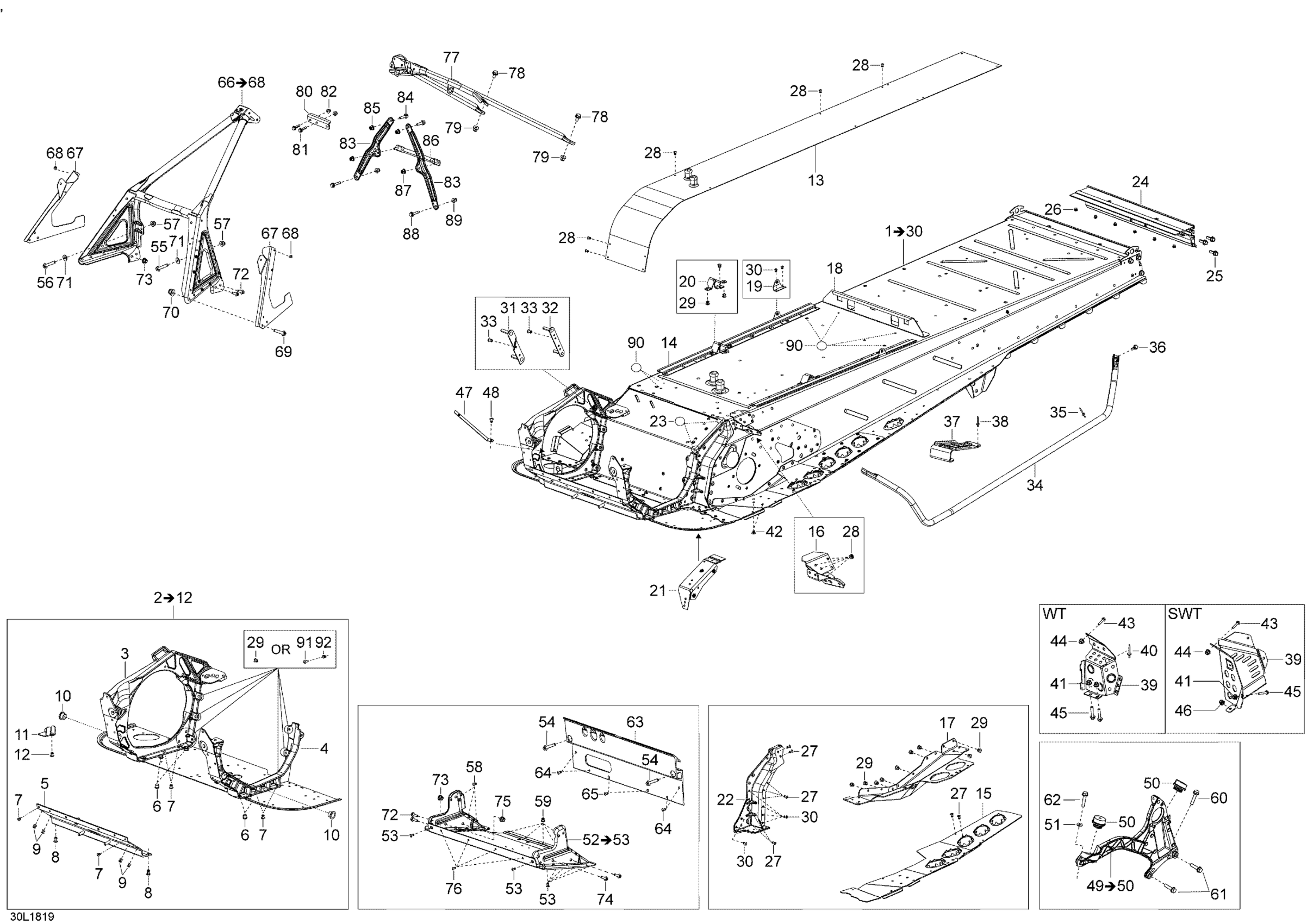

Ski-Doo 4- SKANDIC 900 ACE, 2018 09- Frame Skandic - 900 ACE Diagram

#

Description
Price

1

Black, Frame | Includes 10 to 10ay

518329696

$5.00

1

Black, Frame | Includes 10 to 10ay

518329721

$5.00

2

Module E | Includes 2 To 12

518328815

$959.99

3

RH Side Member

518326328

$284.99

4

LH Side Member

518326330

$284.99

5

Front Member

518326198

$64.99

6

Clinch Nut Hexsert M8

605636002

$7.51

7

Avex Rivet

390909100

$0.30

8

Hemlock Rivet 6.5 mm

293150120

$7.41

9

Hemlock Rivet, 6.5 mm

293150119

$4.29

10

Leg Bushing

505072690

$12.49

11

Muffler Support

518327983

$21.99

12

Rivet Hucklok

293150163

$2.99

13

Tunnel Radiator | Includes 10p to 10q

509000976

$719.99

14

Fastening rail

518326107

$18.49

15

LH Footrest

518328821

$88.99

15

LH Footrest

518328852

$76.99

15

RH Footrest

518328822

$88.99

15

RH Footrest

518328853

$94.99

16

Fastening Bracket

605355235

$56.99

16

Fastening Bracket

518327884

$27.99

17

LH Drive Axle Cover

518328016

$209.99

17

LH Drive Axle Cover

518328014

$209.99

17

RH Drive Axle Cover

518328017

$209.99

17

RH Drive Axle Cover

518328015

$209.99

18

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$78.99

18

TUNNEL SUPPORT - Call your local BRP dealership

518327003

$28.99

19

Seat Box Bracket

518329164

$29.99

20

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

21

Clinch Nut plate

518326430

$44.49

21

CLINCH NUT PLATE - Call your local BRP dealership

518328096

$44.59

22

LH Frame Corner

518325524

$56.99

22

LH Frame Corner

518325643

$52.99

22

RH Frame Corner

518328024

$52.99

22

RH Frame Corner

518325644

$52.99

23

Adhesive Patch

518325560

$4.69

24

Rear Profile

518328748

$234.99

24

Rear Profile

518328749

$234.99

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

26

Hemlock Rivet, 6.4 mm

293150174

$7.86

27

Avex Rivet

390909100

$0.30

28

Avex Rivet

390909200

$0.30

29

Hemlock Rivet, 6.5 mm

293150119

$4.29

30

Rivet

293150183

$2.11

31

Gearbox Front Plate

518326123

$17.49

32

Gearbox Rear Plate

518326124

$17.99

33

Pop Rivet 3/16"

390402200

$0.35

34

LH Footboard Support Tube

518326963

$139.99

34

LH Footboard Support Tube

518327595

$88.99

34

RH Footboard Support Tube

518326964

$139.99

34

RH Footboard Support Tube

518327596

$88.99

35

Avex Rivet

390909100

$0.30

35

Avex Rivet

390909100

$0.30

36

Hex. Flange Screw M6 x 20

207662056

$1.01

37

Black Rear Footrest

520001208

$19.99

38

Rivet 3/16"

293150102

$0.70

39

Black, LH Toe Hook

518328819

$93.99

39

Black, LH Toe Hook

518328921

$75.99

39

Black, RH Toe Hook

518328820

$93.99

39

Black, RH Toe Hook

518328922

$75.99

40

Avex Rivet

390909200

$0.30

41

Clinch Nut M6 Hexsert

605636003

$4.23

41

Clinch Nut M6 Hexsert

605636003

$4.23

42

Black, Dart

414644300

$0.98

43

Hex. Flange Screw M6 x 20

207662056

$1.01

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

45

Torx Head Screw M6 X 16

250000717

$2.11

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

Spring Bracket

514054846

$4.69

48

Avex Rivet

390909200

$0.30

49

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$284.99

50

Vibration Damper

512061516

$61.99

51

Conical Spring Washer M8

234281474

$1.48

52

S Module | Includes 300 to 300a

518326213

$839.99

53

Avex Rivet

390909200

$0.30

54

Hexagonal Head Screw

210262050

$2.11

55

Hex. Flange Screw M6 X 25

207662544

$0.64

56

Hex. Flange Screw M6 X 25

207662544

$0.64

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

58

Avex Rivet

390909100

$0.30

59

Avex Rivet

390909200

$0.30

60

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

61

Hex. Flange Screw M8 X 35

250000986

$2.11

62

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.69

63

Engine Support

518326140

$121.49

64

Avex Rivet

390909100

$0.30

65

Hemlock Rivet, 6.5 mm

293150119

$4.29

66

Front Member Ass'y | Includes 700 to 700d

518327004

$539.99

67

LH Bumper Fastener

502007077

$54.99

67

RH Bumper Fastener

502007078

$54.99

68

Avex Rivet

390909200

$0.30

69

Hex. Flange Screw M6 X 20

207662044

$2.00

70

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

71

Flat Washer

224061201

$1.37

72

Hex. Flange Screw M6 X 20

207662044

$2.00

73

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

74

Hex. Flange Screw M6 X 20

207662044

$2.00

75

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

76

Avex Rivet

390909200

$0.30

77

Upper Support Tube

518329105

$204.99

78

Hex. Screw M8 X 20

207182044

$0.74

79

Hex. Elastic Stop Nut M8

232581414

$0.56

80

EXTENTION PLATE - Call your local BRP dealership | Model SWT

518327029

Unavailable

81

Hex. Flange Screw M6 X 25

207662544

$0.64

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

83

Upper Column Support

518326848

$15.49

84

Hex. Flange Screw M6 x 20

207662056

$1.01

85

Elastic Flange Nut M6 X 1.0

233261416

$2.11

86

Center Column Support

518326355

$22.49

87

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

88

Hex. Flange Screw M6 X 25

207662556

$4.44

89

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

90

Adhesive Patch

518325560

$4.69

91

Hex. Flange Screw M6 X 20

207662044

$2.00

92

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
