Description

Price

1

Handle Bar

506152722

$141.01

2

Grip | WAKE This part replaces M5340464.

506152483

$11.31

3

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.54

4

Steering Support | Includes 40 to 40a

506152751

$11.58

5

Hex. Flange Screw M8 x 40

250000285

$0.75

6

Deep Black, Steering Pad

506152541

$41.01

7

Strap Ass'y | Package XMR

506152115

$41.76

8

Black Support Plate

506152536

$8.34

9

Hex. Flange Screw M6 X 20

207662054

$0.96

10

Bushing | Package XMR

506152156

$5.19

11

Hex. Flange Elastic Nut M6

233261494

$1.45

12

Upper Half-Housing

506152508

$7.18

13

Lower Half-Housing

506152217

$5.40

14

Upper Anti-Vibration Gasket

506152509

$4.39

15

Lower Vibration Ring

506152518

$4.39

16

Housing Bushing

506152297

$9.93

17

Lower Housing Bushing

506152388

$14.81

18

Stopper Plate

506152389

$9.93

19

Hex. Flange Screw M6 X 70

207667056

$4.15

20

Hex. Flange Screw, M8 X 65

207686544

$11.18

21

Elastic Flange Nut M6 X 1.0

233261416

$2.00

22

Hex. Flange Elastic Nut M8

233281414

$1.31

23

Hex. Screw M10 X 40

207004044

$4.51

24

Elastic Stop Nut M10

232500416

$1.79

25

Tie Rod

506152436

$57.43

26

LH Thread Ball Joint

506152081

$38.78

27

LH Threaded Hex. Jam Nut M10

250100016

$0.70

28

RH Threaded Ball Joint

506152019

$38.78

29

RH Threaded Hex. Jam Nut M10

732610010

$0.70

30

Washer

506152582

$4.28

31

Hex. Screw M10 X 45

207004544

$1.60

32

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

33

Cushion

506152404

$24.60

34

Steering Column

506152964

$183.55

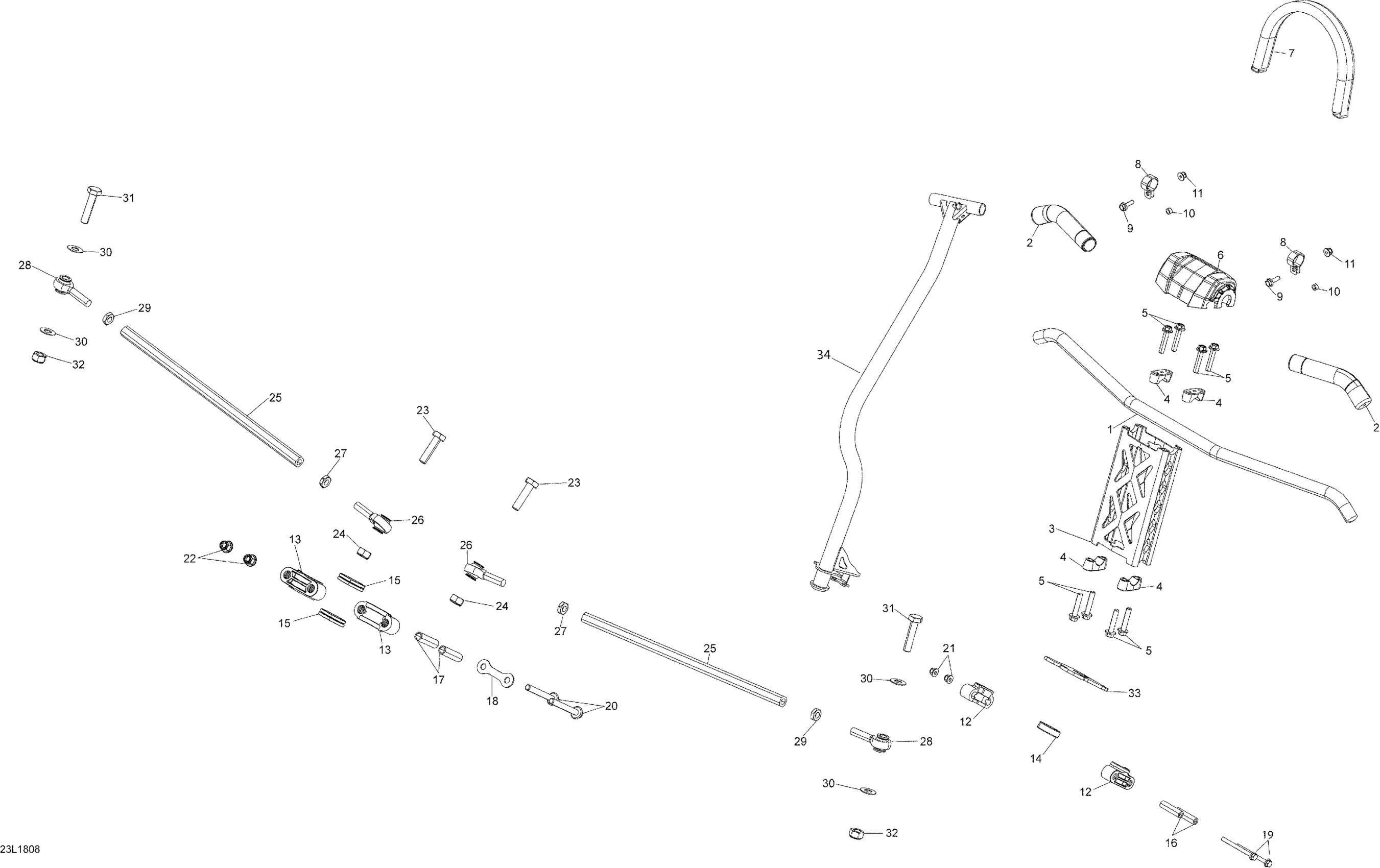

Ski-Doo SKANDIC 900 ACE, 2018 Steering Skandic - 900ACE Diagram
