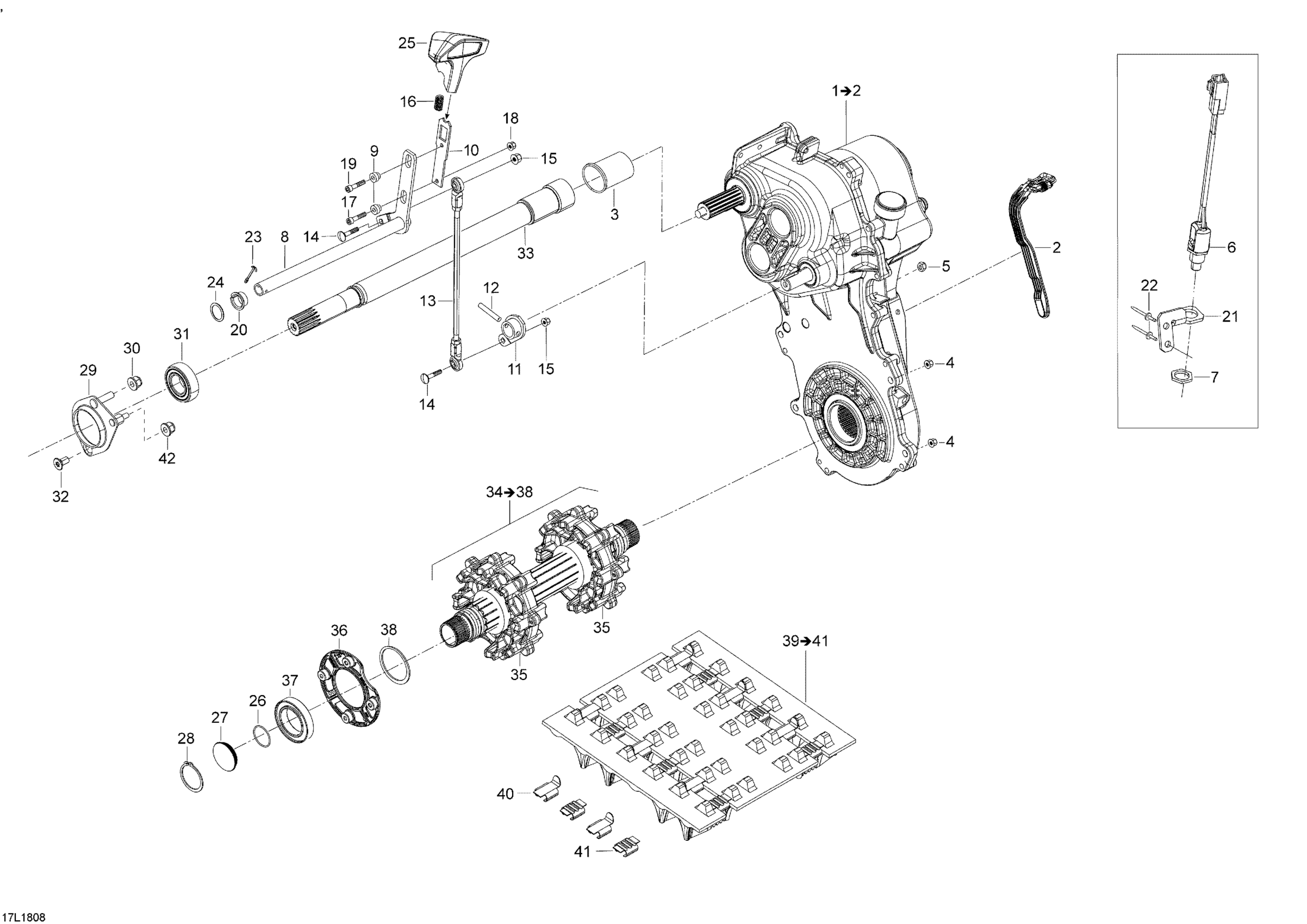

Ski-Doo SKANDIC 900 ACE, 2018 Drive Train Skandic - 900 ACE - WT Diagram

#

Description
Price

1

Transmission Ass'y (Fast Ratio)

619230078

$2,089.99

2

Rotation Sensor

504152896

$34.30

3

Protective Rubber

504153568

$16.39

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Hex. Elastic Stop Nut M8

232581414

$0.54

6

Switch Ass'y

515176472

$69.37

7

Brass Nut

250000373

Unavailable

8

Lever Shifter

504153288

$140.27

9

Sleeve

504152787

$26.09

10

Shifter Arm

504153287

$50.72

11

Welded Lever | Gear Box 1.98

504153280

$80.57

12

Pin

41012

$5.06

13

Shifter Rod

504153258

$45.49

14

Carriage Bolt M6 X 20

250000677

$2.00

15

Elastic Stop Nut M6

232561414

$1.78

16

Spring

504152882

$5.72

17

Socket Screw M5 X 25

205052544

$1.54

19

Forming Screw M5 x 16

250000676

$0.96

20

Bushing

504152890

$42.49

21

Sensor Bracket

504152902

$14.90

22

Rivet Hucklok

293150163

$2.73

23

Cotter Pin

250400035

$2.00

24

Washer

503189273

$3.10

25

Handle

504152837

$73.85

26

O-Ring

293300122

$2.00

27

Magnetic Cap

504152619

$22.36

28

Circlip

504152572

$6.07

29

Bearing Housing

504153187

$27.58

30

Hex. Flange Elastic Nut M8

233281414

$1.31

31

Ball Bearing

293350074

$38.49

32

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

33

Counter Shaft | Gear Box 2.30

504152963

$229.82

34

Drive Axle Ass'y | With Gear Box 1.98

504153976

$492.51

34a

Axle-drive

504152873

Unavailable

36

Retaining Ring

504153886

$17.88

37

Ball Bearing

293350059

$29.82

38

Shim

504153207

$9.33

39

Track | Includes 3200 to 3200b

605613004

$1,279.99

40

Track Guide | Track Width 16''

415129528

$3.03

41

Cleat

504152651

$7.97

45

Tie-Rap 180 mm

414115200

$0.10
