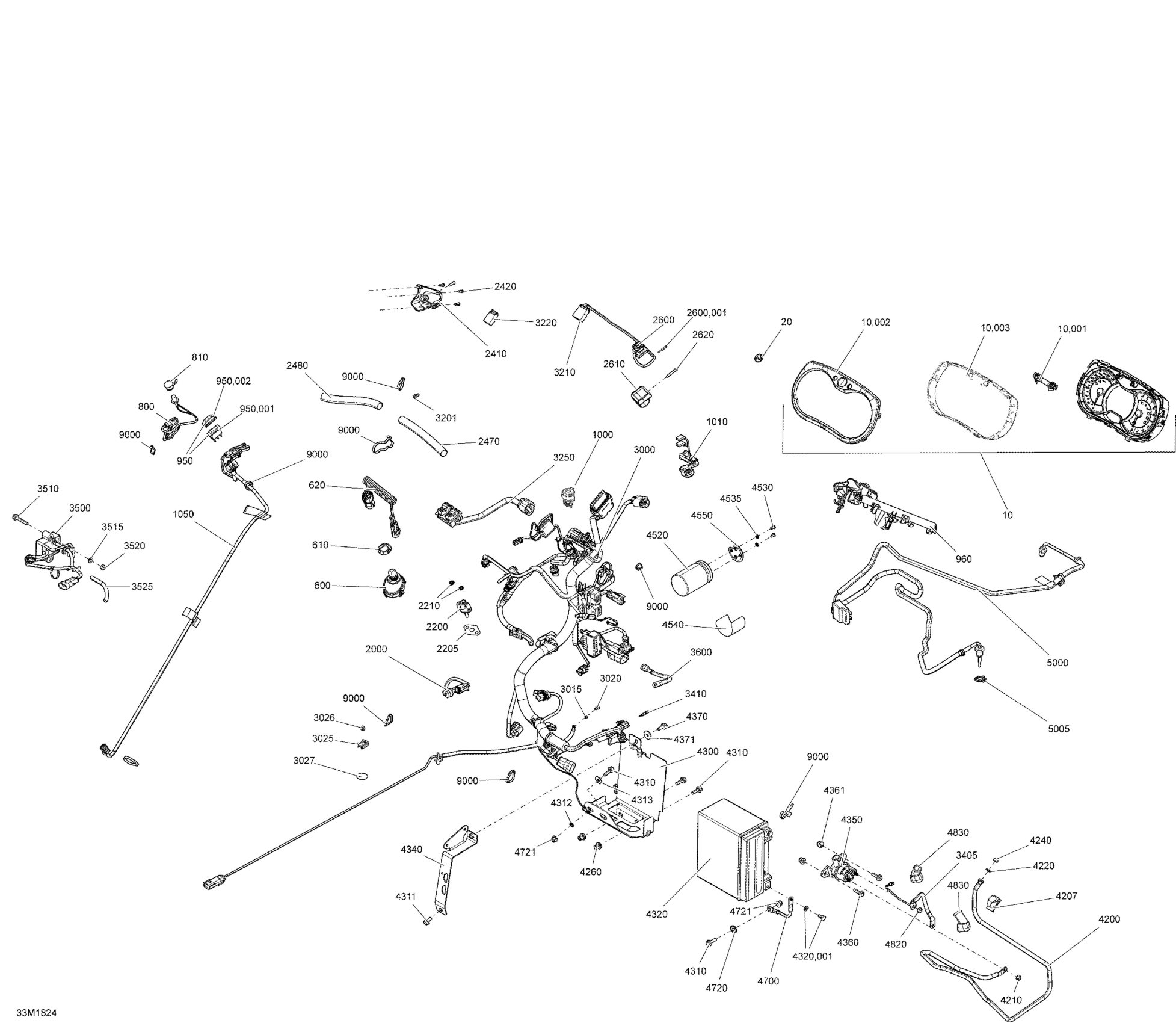

Ski-Doo 4- RENEGADE 800R E-TEC, 2018 10- Electrical System Renegade - 800R E-TEC - Package Enduro Diagram

Speedometer | Includes 10 to 10c

515177910

$659.99

Speedometer Button | XTP

415129355

$15.80

Gauge Ring

415129348

$13.99

Lens | XTP

415129349

$24.49

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Safety Nut (DESS Switch)

278002963

$3.28

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

Visor Harness

515177837

$33.99

Cap

572103300

$10.49

ROCKER SWITCH ASS'Y - Call your local BRP dealership | Includes 950 to 950,002

515176844

Unavailable

Rocker Switch

510004413

$8.79

Switch Protector

510004414

$7.99

Connector Plate

515177134

$17.30

DC Outlet

710001248

$37.99

12 Volts Outlet Harness

515177400

$33.99

Seat Harness

515178203

$38.99

Temperature Sensor This part replaces 420664508.

420664509

$149.99

Air Temperature Sensor

515176366

$19.99

Seal

508000769

$6.39

Push Nut

389804300

$0.53

LH Switch Housing

515178197

$264.99

Housing Plate

515177147

$20.99

Torx Screw

250000671

$1.01

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

Male Terminal

515175232

$1.58

Emergency Stop Switch Support

515177310

$9.19

Torx Screw #8-18

250000263

$1.04

WIRING HARNESS ASSY - Call your local BRP dealership

515177986

Unavailable

Lock Washer 4 mm

234141601

$1.15

Screw-Torx Button Head M4 X 8

250000741

$1.15

Tie Rap Mount (screwable)

515176795

$5.39

Avex Rivet

390909200

$0.30

Pan Screw Forming, 7500C

250000690

$2.11

Male Terminal Housing, 6 Circuits

515175662

$8.79

Male Terminal Housing, 4 Circuits

515175846

$8.79

Fuse Battery Wire

515177576

$16.63

Fuse, 25 Amperes

278001443

$3.28

Compressor Module

515177234

$409.99

Hex. Flange Screw M6 X 35

207663544

$0.90

Flat Washer 6 mm

234061410

$1.36

Elastic Stop Nut M6

232561414

$0.55

Tubing 6 Mm 3000Mm Long

219704425

$13.75

Ground Wire

515177289

$26.99

Battery/Starter Wire

515177208

$30.99

Clip

515177066

$4.29

Elastic Stop Nut M6

232561414

$0.55

Flat Washer 6 mm

234061410

$1.36

Elastic Stop Nut M6

232561414

$0.55

Insert

293450275

$12.99

Battery Support

515177264

$31.99

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 12

207661244

$2.11

External Serrated Lock Washer 6 mm

234461608

$1.15

Flat Washer

250200082

$0.42

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

Battery Bolt Kit

250000282

$7.29

Battery Strip

515177266

$19.99

Starter Relay

278003012

$42.49

Hex. Flange Screw M6 X 20

207662044

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 16

207661644

$0.74

Flat Washer

224061201

$1.37

Capacitor

515177272

$90.99

Socket Head Screw M10 X 32

250000462

$2.11

Lock washer | Quest XT 650.

250200026

$1.90

Capacitor Decal

516008593

$1.19

Cap

515177193

$4.69

Ground Wire

515176358

$27.99

Lock Washer Serrated M6

250200041

$1.15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Elastic Stop Nut M6

232561414

$0.55

Protector Cap

710000495

$10.99

Kit Module *Egts Module Kit Sing This part replaces 515177759.

415130000

$174.99

Tab Lock

514055100

$8.45

Extension

515175851

$11.12

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 368 mm

293750008

$1.04

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie-Rap 173 mm

293750009

$1.04
