Description

Price

10a

Deep Black, Center Hood

517304796

$214.99

10b

Red RH Hood | Package Enduro

517305634

$209.99

10b

Deep Black, RH Hood

517305239

$199.99

10c

Red LH Hood | Package Enduro

517305633

$209.99

10c

Deep Black, LH Hood

517305240

$199.99

10d

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

10e

Washer

517124300

$0.19

20

Torx Screw M5 X 20

250000528

$2.11

30

Panel Nut M5 X 0.8

250000958

$4.23

40

Torx Screw M5 X 26

250000587

$4.44

80

RH Rear Hood Foam

517305090

$16.49

100

LH Rear Hood Foam

517305091

$16.49

200

Deep Black, Rear Console

517305641

$224.99

200

CANAM RED, REAR CONSOLE - Call your local BRP dealership | Package Enduro

517305786

$194.99

210

Console Nut

517304518

$15.29

265

Torx Truss Screw M6 X 20

250000705

$2.11

280

Panel Nut M6 X 1.0

250100198

$2.11

350

Deep Black, RH Front Console

517305549

$21.99

360

CONSOLE-FRONT - Call your local BRP dealership | Package Enduro

517306225

Unavailable

600

Deep Black, Indicator Support

517305511

$60.99

610

Torx Screw M5 X 20

250000528

$2.11

620

Panel Nut M5 X 0.8

250000958

$4.23

630

Torx Screw M5 X 26

250000587

$4.44

800a

Windshield 345mm

517304927

$164.99

800b

Windshield Support Long, Yellow 2000

860200944

$38.49

800c

Push Nut

732610072

$2.19

800d

RH Air Deflector, Black 63% Transm.

517304928

$32.99

800e

LH Air Deflector, Black 63% Transm.

517304929

$40.99

800f

Torx Screw K50 X 16

250000720

$1.69

800g

Washer M5

250200025

$0.74

800h

Rubber Washer 5 mm

250200024

$2.19

810

Grommet

517303756

$4.09

1000a

Black Panel RH | Package TNT, X, Blizzard & XRS

517304801

$189.99

1000a

PANEL_BODY RH B-359 - Call your local BRP dealership

517306418

$199.99

1000b

Deep Black, Panel Trim RH

517304802

$189.99

1000c

Push Nut

250100158

$2.11

1000d

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000e

Rivet Plate

517305109

$4.99

1000f

Pin

517305734

$3.49

1000g

Deep Black, RH Panel Vent Grid

517304935

$31.99

1000h

Washer

517124300

$0.19

1010

RH Foam Central

517305197

$16.49

1020

RH Foam Rear

517305199

$21.99

1030

Heat Shield | Europe

517305451

$2.29

1040

RH Foam Upper

517305196

$30.99

1050

RH Foam Lower

517305198

$28.99

1200a

LH.PANEL - Call your local BRP dealership | Package Enduro

517306420

Unavailable

1200b

Black, LH Flashing Panel

517304805

$189.99

1200c

Push Nut

250100158

$2.11

1200d

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200e

Rivet Plate

517305109

$4.99

1200f

Pin

517305734

$3.49

1200g

Washer

517124300

$0.19

1210

LH Center Panel Foam

517305201

$14.49

1220

LH Lower Panel Foam

517305202

$21.99

1230

LH Upper Panel Foam

517305200

$21.99

1240

LH Rear Panel Foam

517305203

$21.99

1300

Panel Latch

517305279

$18.99

1310

Hexalob Screw M4 X 10

250000565

$2.11

1320

Weld Nut M4

250100156

$4.34

1400

RH Panel Latch

517303612

$9.99

1500

Latch Support

517304221

$9.19

1510

Torx Screw M5 X 20

250000792

$2.11

1600

LH Panel Latch

517303808

$11.49

1610

Pop Rivet 3/16”

293150108

$1.19

1700

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$16.49

1700a

Ring

517305723

$3.49

1710

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$16.49

1710a

Ring

517305723

$3.49

2400

Headlamp

517306180

$249.99

2400a

Cap

219400070

$18.49

2400b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

2400c

Holder Bracket

219800282

$5.89

2400d

Spring

219800281

$3.49

2400e

Harness

415130194

Unavailable

2400f

Connector Holder

710002033

$3.39

2410

Torx Screw M5 X 20

250000528

$2.11

2420

Jack Nut M5

250100035

$6.99

2430

Screw M4 X 16

250000725

$3.49

2600

Headlight Trim Cap

517305010

$37.99

2810

Grommet

517302841

$7.89

3010

Grommet

517302841

$7.89

3200a

Deep Black, Upper Storage Access Cover

517304912

$18.49

3200b

Cover Latch

517304917

$12.99

3210

Seal Joint

517305157

$2.39

3400

Deep Black, Trunk

517305095

$21.99

3600

Deep Black, Console Support

517304970

$14.49

3800

Deep Black, Support Console Cap

517305147

$4.99

4000

Deep Black, Support Console Cap

517305148

$4.99

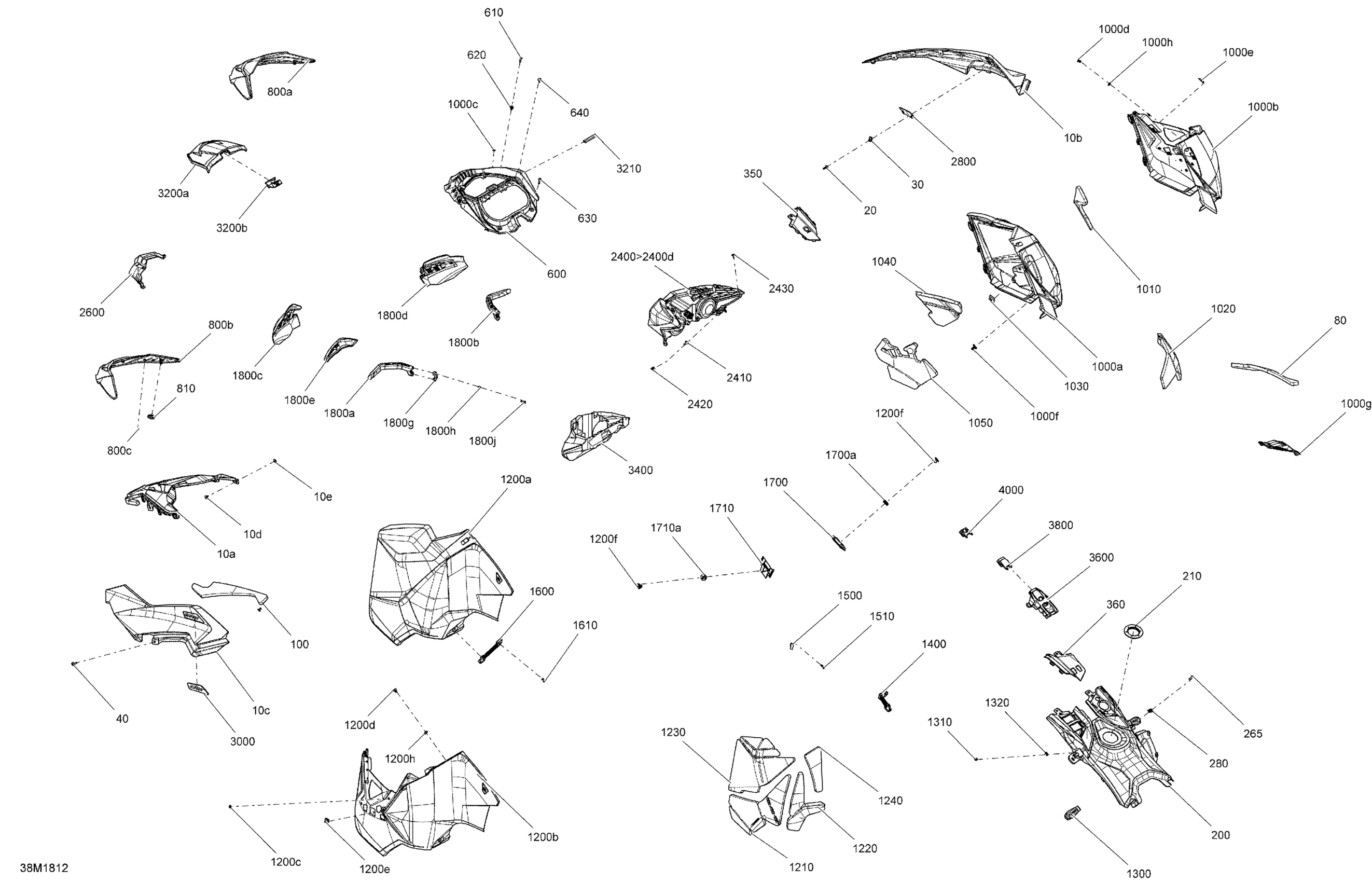

Ski-Doo RENEGADE 800R E-TEC, 2018 Hood Renegade - 800R E-TEC Diagram

Deep Black, Center Hood

Red RH Hood | Package Enduro

Deep Black, RH Hood

Red LH Hood | Package Enduro

Deep Black, LH Hood

Pop Rivet 3/16" | DS 650 X

Washer

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Torx Screw M5 X 26

RH Rear Hood Foam

LH Rear Hood Foam

Deep Black, Rear Console

CANAM RED, REAR CONSOLE - Call your local BRP dealership | Package Enduro

Console Nut

Torx Truss Screw M6 X 20

Panel Nut M6 X 1.0

Deep Black, RH Front Console

CONSOLE-FRONT - Call your local BRP dealership | Package Enduro

Deep Black, Indicator Support

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Torx Screw M5 X 26

Windshield 345mm

Windshield Support Long, Yellow 2000

Push Nut

RH Air Deflector, Black 63% Transm.

LH Air Deflector, Black 63% Transm.

Torx Screw K50 X 16

Washer M5

Rubber Washer 5 mm

Grommet

Black Panel RH | Package TNT, X, Blizzard & XRS

PANEL_BODY RH B-359 - Call your local BRP dealership

Deep Black, Panel Trim RH

Push Nut

Pop Rivet 3/16" | DS 650 X

Rivet Plate

Pin

Deep Black, RH Panel Vent Grid

Washer

RH Foam Central

RH Foam Rear

Heat Shield | Europe

RH Foam Upper

RH Foam Lower

LH.PANEL - Call your local BRP dealership | Package Enduro

Black, LH Flashing Panel

Push Nut

Pop Rivet 3/16" | DS 650 X

Rivet Plate

Pin

Washer

LH Center Panel Foam

LH Lower Panel Foam

LH Upper Panel Foam

LH Rear Panel Foam

Panel Latch

Hexalob Screw M4 X 10

Weld Nut M4

RH Panel Latch

Latch Support

Torx Screw M5 X 20

LH Panel Latch

Pop Rivet 3/16”

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

Ring

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

Ring

Headlamp

Cap

Halogen Bulb, 60/55 W, 12 V ( H4 )

Holder Bracket

Spring

Harness

Connector Holder

Torx Screw M5 X 20

Jack Nut M5

Screw M4 X 16
