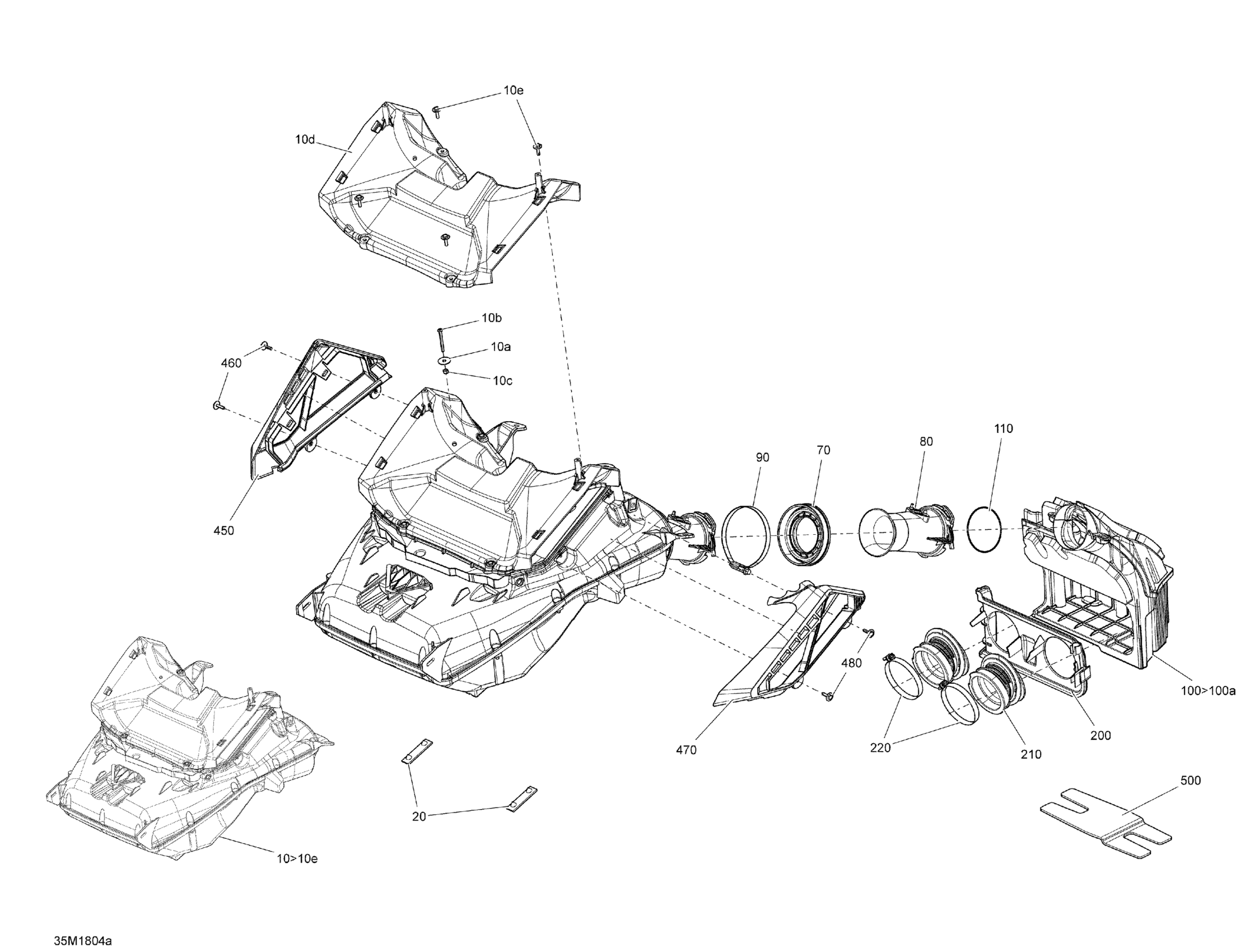

Ski-Doo RENEGADE 800R E-TEC, 2018 Air Intake - 800R E-TEC Diagram

Description

Price

10>10e

Secondary Chamber Ass'y | Includes 10 to 10e

508000722

$155.35

10a

Flat Washer

224060201

$1.15

10b

Socket Head Screw M4 X 40

205444056

$1.74

10c

Elastic Stop Nut M4

232541414

$0.48

10d

Air Duct

508000732

$45.35

10e

Screw M4 X 16

250000725

$2.87

Stopper

508000744

$2.08

Boot

508000567

$16.89

Flute

508000662

$13.65

Norma Clamp

514052924

$10.58

100>100a

Primary Chamber Ass'y | Includes 100 to 100a

508000660

$81.51

100a

Notice Decal, Air Intake Silencer

516005876

$4.12

110

O-Ring

293300115

$2.63

200

Plate Adapter

508000613

$18.43

210

Air Intake Adapter

508000614

$18.43

220

Gemi Clamp

508000346

$9.31

450

RH Air Filter

508000730

$40.74

460

Screw M4 X 16

250000725

$2.87

470

LH Air Filter

508000731

$40.74

480

Screw M4 X 16

250000725

$2.87

500

Insulated Foam

508000739

$8.38
