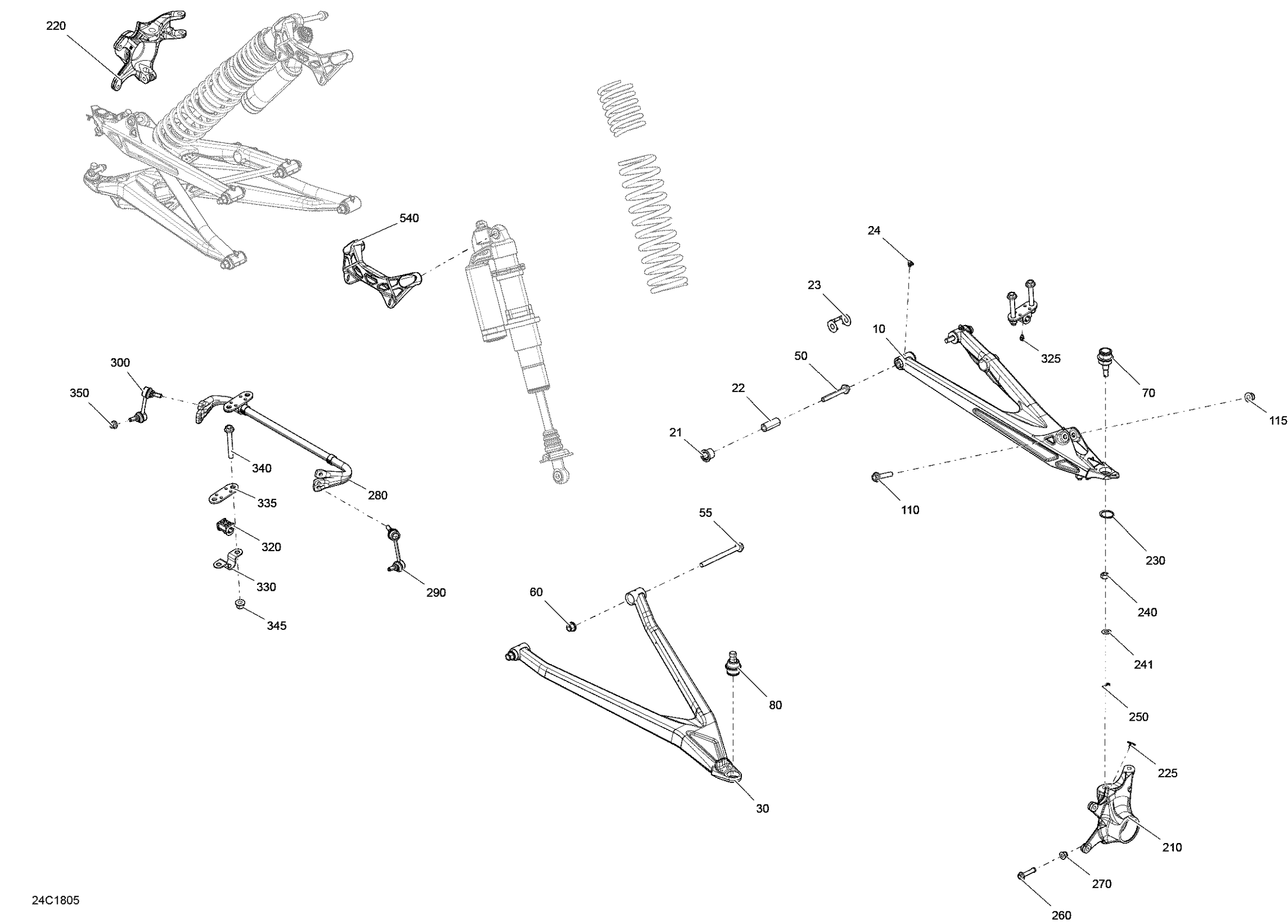

Can-Am Maverick X3 Turbo - XRC, 2018 Front Suspension - Package XRC Diagram

Gulfstream Blue, LH Upper Suspension Arm

703501055

$222.49

Gulfstream Blue, RH Upper Suspension Arm

703501058

$222.49

Suspension Arm Bushing

706204409

$9.10

Interior Bushing

706202257

$9.79

Wear Plate

706202300

$2.29

Grease Fitting 90°

293550056

$1.15

Black, LH Lower Arm | Model X3 Xrs

706202706

$201.49

Deep Black, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204734.

715010613

$289.99

Flange Screw M12 X 85

250000859

$4.76

Flange Screw M12 X 145

250000861

$6.67

Elastic Flange Nut M12

233221466

$2.89

Ball Joint

706203084

$35.99

Ball Joint

706202045

$35.99

Flange Screw M12 X 60

250000857

$7.41

Elastic Flange Nut M12

233221466

$2.89

LH Front Knuckle

706204785

$201.49

RH Front Knuckle

706204786

$148.49

Wear Plate

706202502

$2.29

Circlip

293370035

$2.64

Nut M12

250100099

$2.09

Hardened Washer

706200281

$2.85

Cotter Pin

211400017

$0.33

Hex. Flange Screw M10 X 50

207605044

$5.29

Hex. Flange Elastic Nut M10

233201436

$2.11

Stabilizer Bar Ass'y

703501043

$121.99

Link Stabilizer Bar LH

706202764

$57.99

Link Stabilizer Bar RH

706202765

$57.99

Bushing_Stabilizer Bar

706204565

$3.61

Grease Fitting 90°

293550056

$1.15

Clamp

706202460

$6.89

Support Plate

706202551

$5.09

Hex. Flange Screw M12 X 95

250000876

$6.77

Elastic Flange Nut M12

233221466

$2.89

Hex. Flange Elastic Nut M10

233201436

$2.11

Conical Spring Washer 10 mm

234201474

$1.69

Link

706203126

$49.99

72'' LH A-Arm Protector

706202634

Unavailable

72'' RH A-Amr Protector

706202635

Unavailable

Carriage Bolt M6 X 25

207762544

$1.69

Hex. Flange Elastic Nut M6

233261494

$1.58

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Rear Left Support

706203198

Unavailable

Front Left Support

706203199

Unavailable

Front Right Support

706203200

Unavailable

Rear Right Support

706203201

Unavailable
