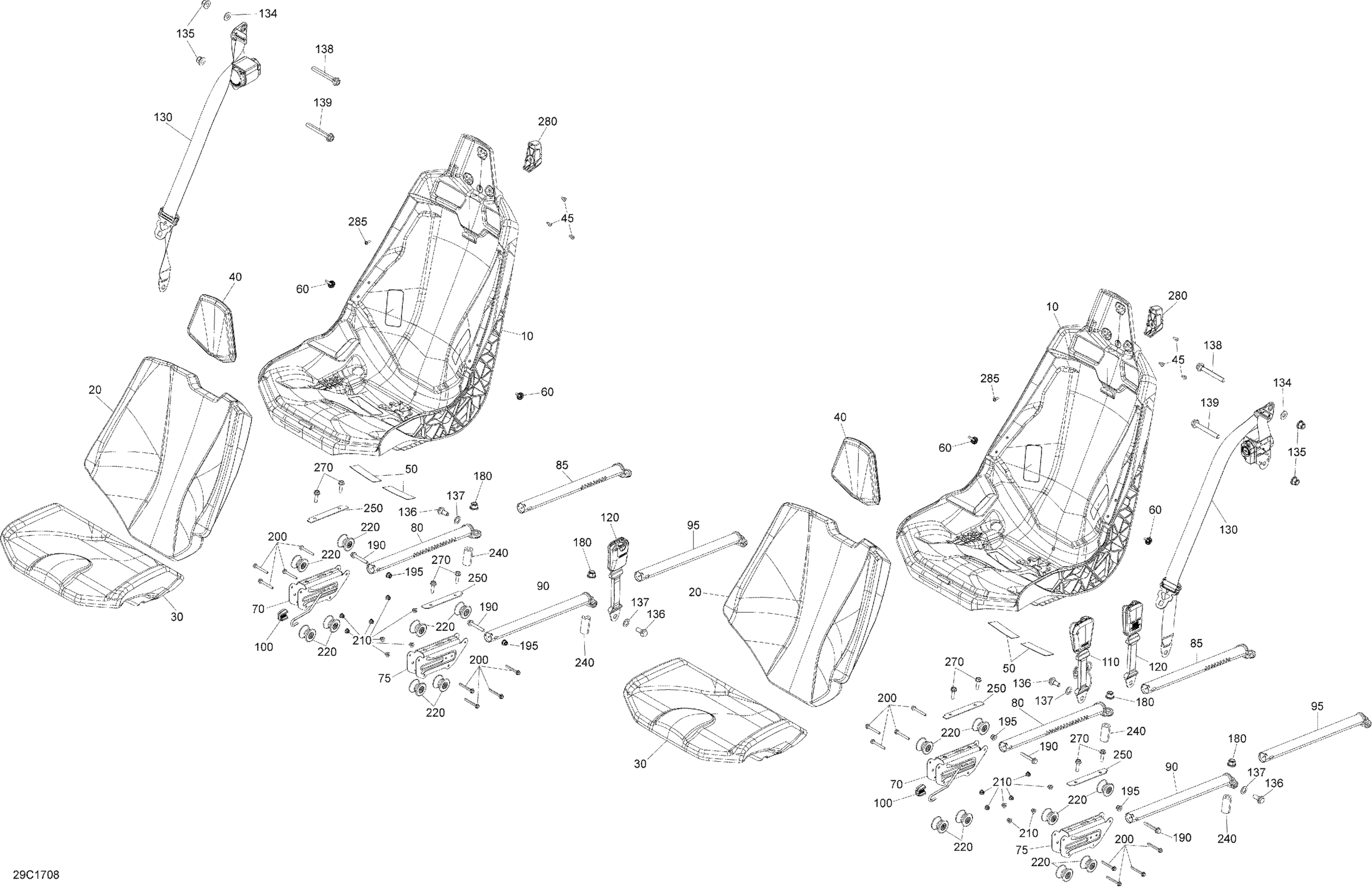

Can-Am Maverick X3 MAX, 2017 Seat Diagram

#

Description
Price

10

LH Seat Shell

715005155

$235.35

10

RH Seat Shell

715005156

$235.35

20

Backrest Ass'y

708002121

$332.28

20

Backrest Ass'y | Model Black

708002127

$332.28

20

BACKREST ASS'Y - Call your local BRP dealership | Model Gold

708002380

$319.99

20

BACKREST - Call your local BRP dealership | Model Yellow

708002393

Unavailable

30

Cushion Ass'y

708002124

$226.12

30

Cushion Ass'y | Model Black

708002129

$226.12

30

Seat Base Cushion | Model Gold

708002382

$226.12

30

CUSHION ASS'Y - Call your local BRP dealership | Model Yellow

708002396

Unavailable

40

Headrest

708002131

$96.89

45

Torx Screw K50 X 16

250000720

$1.39

50

Velcro Tape

708002535

$4.98

60

Button Head Tie Rap

708002533

$2.31

70

Adjustable Trolley Kit

703500997

$54.58

75

Trolley

708002298

$16.89

80

Seat Rail

708003061

$50.74

85

Rail

708002578

$50.74

90

Seat Rail

708003064

$50.74

95

Rail

708002575

$50.74

100

Adjustment Handle

708002655

$15.22

110

Driver Buckle

708002714

$96.89

120

Passenger Buckle

708002385

$83.05

130

Safety Belt Passenger

708002654

$267.66

134

Flat Washer M12

250200102

$1.74

135

Elastic Flange Nut M12

233221416

$2.33

136

Safety Belt screw

708002504

$5.52

137

Position Washer

708000891

$1.15

138

Hex. Flange Screw M12 X 97.5

250000896

$7.98

139

Hex. Flange Screw M12 X 95

250000876

$5.54

180

Elastic Flange Nut M12

233221416

$2.33

190

Hex. Flange Screw M8 X 55

207685544

$4.41

195

Elastic Flange Nut M8

233281464

$0.83

200

Hex. Flange Screw M6 X 50

207665044

$3.38

210

Elastic Flange Nut M6 X 1.0

233261416

$1.74

220

Wheel

708002134

$15.35

240

Rear Bushing

708002299

$10.14

250

Plate | Includes 250 to 250a

708003680

$2.03

270

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68
