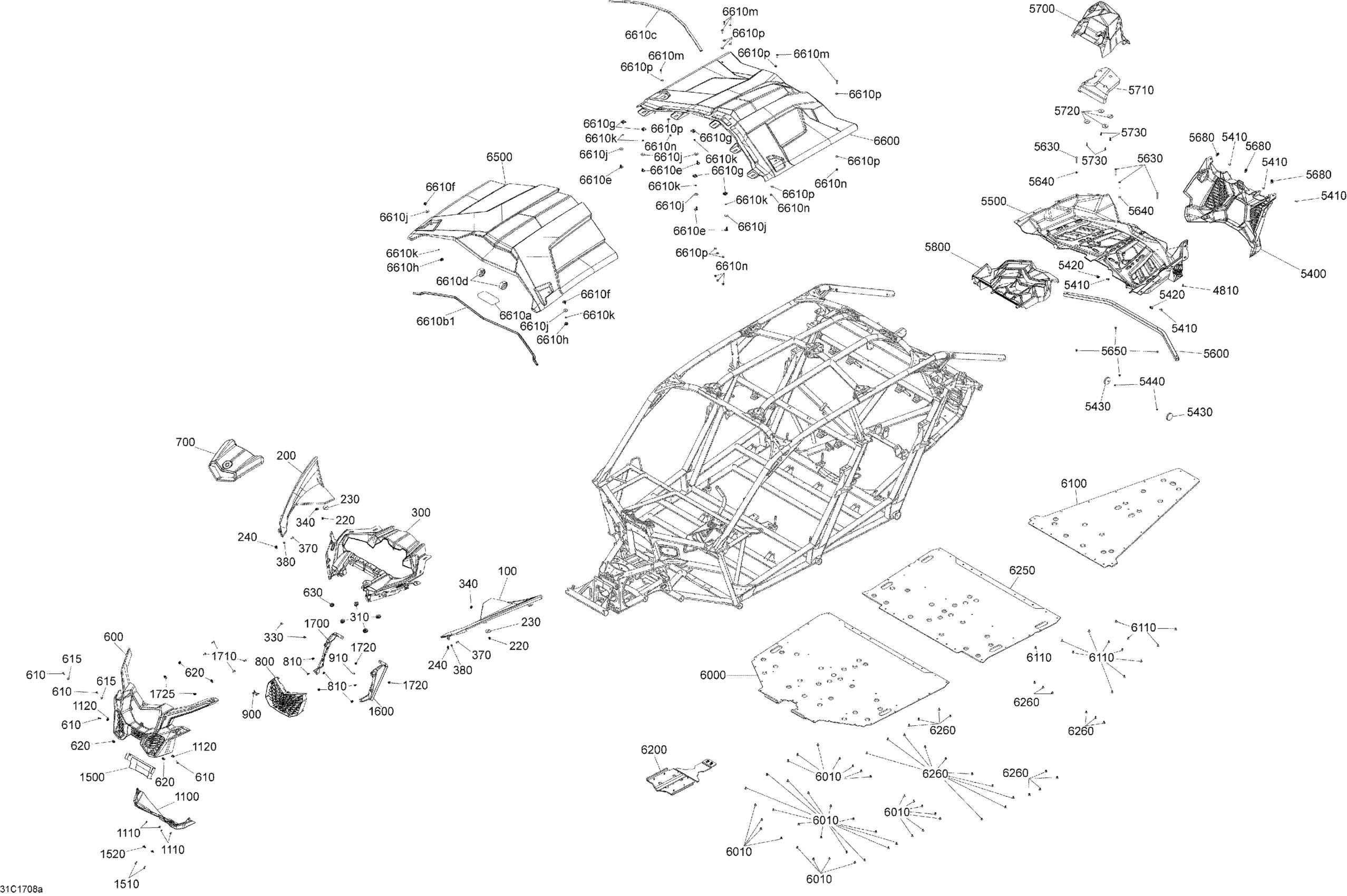

Can-Am Maverick X3 MAX, 2017 Body And Accessories Part 1 Diagram

White, LH Front Fender | Model White

705009505

$189.97

YELLOW LH FRONT FENDER - Call your local BRP dealership | Model Yellow

705011084

Unavailable

Black, LH Front Fender | Model Black

705011087

$189.97

Gold, LH Front Fender | Model Gold

705011092

$189.97

White, RH Front Fender | Model White

705009506

$189.97

YELLOW RH FRONT FENDER - Call your local BRP dealership | Model Yellow

705011086

$198.43

Black, RH Front Fender | Model Black

705011091

$189.97

Gold, RH Front Fender | Model Gold

705011093

$189.97

Edge Clip

517302785

$0.70

Support Plate

705003841

$0.91

Panel Nut M6 X 1.0

250100198

$1.73

Central Hood

705014684

$72.19

Grommet

705010718

$2.69

Torx Screw M6 X 20

250000722

$1.34

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw M6 X 20

250000722

$1.34

Stainless Steel Flat Washer

234062670

$1.74

Front Facia

705009508

$69.20

Torx Screw M6 X 20

250000722

$1.34

Stainless Steel Flat Washer

234062670

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Grommet

517303756

$3.15

White, Facia Cover | Model White

705010277

$101.51

YELLOW FACIA COVER - Call your local BRP dealership | Model Yellow

705011094

Unavailable

Timeless Black, Front Hood

705014313

$159.97

Gold, Facia cover | Model Gold

705011097

$172.28

Radiator Front Grille

703501021

$50.74

Edge Clip

517302785

$0.70

Logo | Except Model X3

705010885

$11.55

Screw M4 X 16

250000725

$2.87

Front Deflector

705009978

$70.74

Pop Rivet 3/16"

293150103

$0.54

Panel Nut M6 X 1.0

250100198

$1.73

Lower Radiator deflector

705010742

$16.89

Torx Screw M6 X 20

250000722

$1.34

Panel Nut M6 X 1.0

250100198

$1.73

LH Front Radiator Deflector

705017559

$17.66

RH Front Radiator Deflector

705017560

$17.66

Torx Screw M6 X 20

250000722

$1.34

Edge Clip

517302785

$0.70

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw K50 X 16

250000720

$1.39

Rear Fairing

705017558

$193.05

Torx Screw M6 X 20

250000722

$1.34

Panel Nut M6 X 1.0

250100198

$1.73

Red Reflector

705011221

$12.32

Elastic Flange Nut M5

233251494

$1.74

Luggage Rack Kit

715006592

$429.20

Luggage rack Tube

705012589

$32.28

Torx Truss M6 X 50

250000868

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Panel Nut M6 X 1.0

250100198

$1.73

Air Inlet Cover

705017568

$46.12

Foam Air Intake Cover

705011293

$11.83

Support Plate

705003841

$0.91

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Rear Cover

705013757

$212.28

Central Skid Plate | Except Model X3 Xrs

705016193

$290.74

Central Skid Plate

705016870

$341.51

Pop Rivet 3/16”

293150108

$1.23

Pop Rivet 3/16”

293150108

$1.23

Rear Skid Plate

705016686

$166.12

Rear Skid Plate

705016687

$166.12

Pop Rivet 3/16”

293150108

$1.23

Pop Rivet 3/16”

293150108

$1.23

Front Skid Plates | XRSDPS Package

715003933

$134.58

Central Skid Plate

705016810

$290.74

Central Skid Plate | XRSDPS Package

705016196

$295.35

Pop Rivet 3/16”

293150108

$1.23

Pop Rivet 3/16”

293150108

$1.23

Max Sport Roof | Includes 6500 to 6500s

715003750

$909.99

Max Sport Roof | Includes 6500 to 6500s

715003750

$909.99

Decal "Can-Am" | Not Shown

704904566

$9.25

Was 293250424 Seal | Model X3 Xrs

219704385

$59.97

Seal Tray 1000Mm Long

219704368

$12.91

Strap

705011280

$23.05

Quarter Turn Screw

705002649

$12.57

Quarter Turn Service Kit

715003815

$22.07

Quarter Turn Nut

705002651

$3.84

Quarter Turn Urethane Washer

705011055

$1.37

Flat Washer M6

250200165

$1.91

Washer

705002650

$2.75

Torx Truss Screw M6 X 25

250000807

$1.74

Hex. Flange Elastic Nut M6

233261466

$1.66

Washer M6

250200029

$1.83
