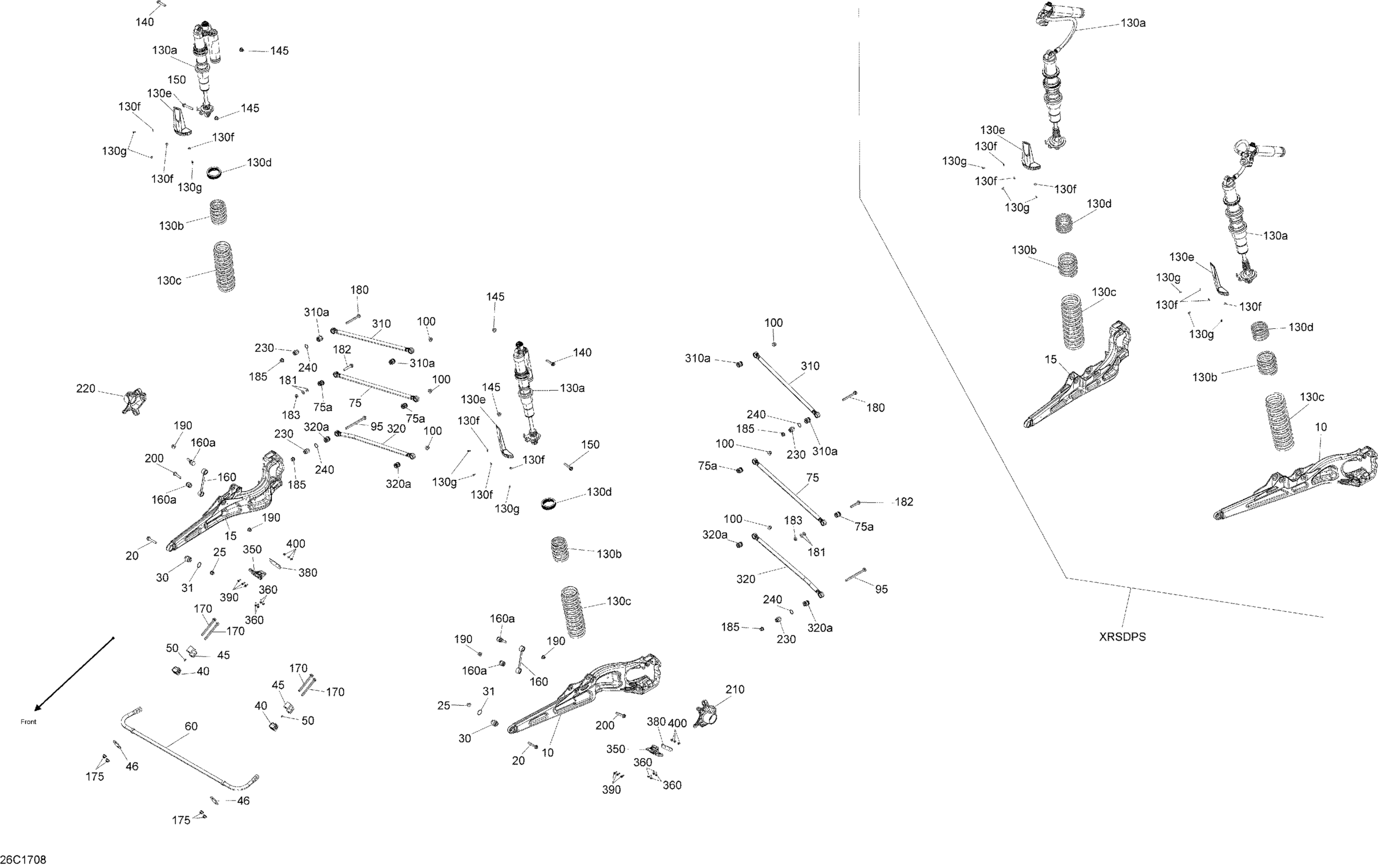

Can-Am Maverick X3 MAX, 2017 Rear Suspension Diagram

#

Description
Price

10

Deep Black, LH Rear Suspension Arm

706004593

$350.74

10

Red LH Rear Arm | Model X3 Xrs Gold

706002569

$350.74

10

Black LH Rear Arm | Model X3 Xrs Black

706002694

$378.43

15

Black, RH Rear Suspension Arm | Model X3

706002568

$350.74

15

Red RH Rear Arm | Model X3 Xrs Gold

706002570

$350.74

15

Deep Black, RH Rear Suspension Arm

706004606

$378.43

20

Hex. Flange Screw M12 X 70

250000858

$3.11

25

Elastic Flange Nut M12

233221466

$2.15

30

Radial Joint

706001373

$41.51

31

Retaining Ring

293370093

$7.37

40

Stabilizer Bar Bushing

706004264

$9.22

45

Clamp

706002303

$16.89

46

Support Plate

706002357

$4.60

50

Grease Fitting

408200700

$2.80

60

Stabilizer Bar Ass'y

706002100

$96.89

75>75a

Central Control Link | Includes 75 to 75a

706002099

$115.35

75a

Radial Joint

706002135

$41.51

75>75a

Central Control Link | Includes 75 to 75a

706002307

$119.97

75a

Radial Joint

706002135

$41.51

95

Screw Flange M12 X 175

250000862

$5.47

100

Elastic Flange Nut M12

233221466

$2.15

130a

LH Rear Shock | Includes 130a to 130a5

706002660

$1,179.99

130a

LH Rear Shock | Standard Package

706002666

$909.97

130a

Rear Shock | XRSDPS Package, Liquid Gold

706002671

$1,529.99

130a

Rear Shock | XRSDPS Package, Timeless Black Metallic

706002672

$1,529.99

130a

RH Rear Shock | Includes 135a to 135a5

706002663

$1,159.99

130a

RH Rear Shock | Standard Package

706002667

$923.05

130b

Deep Black, Compression Spring

706005126

$96.89

130b

SPRING - Call your local BRP dealership | XRSDPS Package, Liquid Gold

706002675

Unavailable

130b

SPRING - Call your local BRP dealership | XRSDPS Package, Timeless Black Metallic

706002669

Unavailable

130c

Black Rear Spring | Except XRSDPS Package

706002661

$147.66

130c

Rear Spring | XRSDPS Package, Liquid Gold

706002674

$147.66

130c

Black Rear Spring | XRSDPS Package, Timeless Black Metallic

706002668

$147.66

130e

Protector

706202215

$9.23

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

233221466

$2.15

150

Flange Screw M12 X 60

250000857

$6.08

150

Hex. Flange Screw M12 X 70

250000858

$3.11

160>160a

Rear Stabilizer Bar Link | Includes 160 to 160a

706003752

$87.66

160a

Radial Joint

706002135

$41.51

170

Screw Flange M12 X 135

250000892

$5.12

175

Elastic Flange Nut M12

233221466

$2.15

180

Screw Flange M12 X 115

250000860

$5.47

181

Hardened Washer

706200281

$2.34

182

Hex. Flange Screw M12 X 70

250000858

$3.11

183

Elastic Stop Nut M12

232521416

$1.40

185

Elastic Flange Nut M12

233221466

$2.15

190

Elastic Flange Nut M12

233221466

$2.15

200

Flange Screw M12 X 60

250000857

$6.08

210

LH Khuckle

706001960

$147.66

220

RH Khuckle

706001961

$147.66

230

Radial Joint

706002317

$41.51

240

Retaining Ring

293370118

$7.37

310>310a

Upper Control Link | Includes 310 to 310a

706002136

$124.58

310a

Radial Joint

706002135

$41.51

310>310a

Upper Control Link | Includes 310 to 310a

706002751

$124.58

310a

Radial Joint

706002135

$41.51

320>320a

Lower Control Link | Model X3 Xds

706002139

$124.58

320a

Radial Joint

706002135

$41.51

320>320a

Lower Control Link | Model X3 Xrs

706002311

$119.97

320a

Radial Joint

706002135

$41.51

350

Deflector

706002905

$14.75

360

Hex. Flange Screw M6 X 20

207662044

$1.66

380

Wear Plate

706002851

$10.98

390

Hex. Flange Screw M6 X 20

207662044

$1.66

400

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
