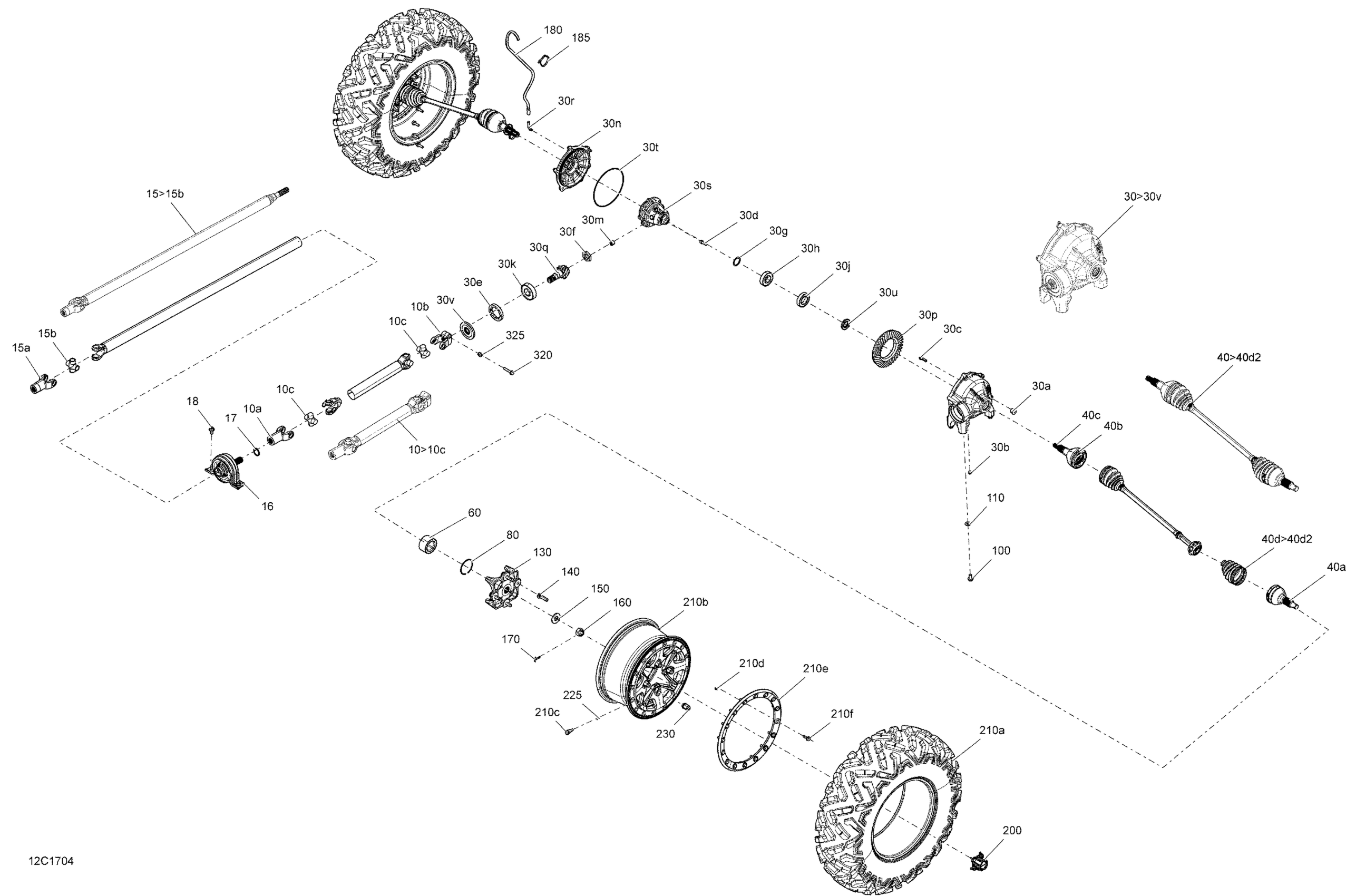

Can-Am Maverick X3 MAX, 2017 Drive System, Front Diagram

Drive Axle Ass'y | Includes 10 to 10c

705402188

$244.58

Fixed Yoke

715900400

$59.97

Yoke

715900401

$36.89

J-Joint Cross Kit

715900402

$87.66

Drive Shaft Ass'y | Includes 15 to 15b

705402026

$299.97

Yoke

715900401

$36.89

J-Joint Cross Kit

715900402

$87.66

Ball Bearing Ass'y

705403522

$46.12

Snap Ring

293370098

$3.11

Hex. Flange Screw M10 X 20

207502046

$1.74

Front Differential Ass'y | Includes 30 to 30y

705402995

$1,338.43

Fill Level Plug

705501889

$18.43

Drain Plug | After May 30, 2014

705501885

$12.68

Bolt

705501886

$6.75

Screw

705402375

$11.83

Nut M75 X 1.5

705401819

$23.05

Nut M27 X 1.5

705401820

$23.05

Shim | 4X4

705401604

$55.35

Ball Bearing | 4X4

705401606

$49.20

Ball Bearing

705402847

$46.12

Ball Bearing

705401821

$30.39

Ball Bearing | After May 30, 2014

705402848

$46.12

Front Cover

705401667

$152.28

Ring Gear 36 Teeth

705402788

$359.97

Pinion 10 th.

705401933

$179.97

Vent Valve

705401935

$14.37

Differential | Base Package

705402377

$1,174.99

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$8.45

Oil Seal

705401836

$7.37

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$16.89

Performance CV Axle - Front Right | Model X3 Xrs

705402100

$261.24

Performance CV Axle - Front Left | Model X3 Xrs

705402099

$261.24

Performance CV Axle - Front Right | Except Model X3 Xrs

705402098

$261.24

Performance CV Axle - Front Left | Except Model X3 Xrs

705402097

$261.24

CV Joint

715900452

$253.82

RH Plunging Joint

715900454

$249.20

LH Plunging Joint

715900453

$249.20

Circlip Joint | Not shown

705401349

$5.38

Boot Kit, Wheel Side

705401354

$41.51

Oetiker Clamp, Large

715900260

$7.84

Oetiker Clamp, Small

715900261

$4.39

Bearing_Ball

293350141

$69.74

Circlip

293370102

$3.98

Hex. Flange Screw M10 X 20

207502046

$1.74

Conical Spring Washer 10 mm

234201474

$1.39

Wheel Hub

705502122

$115.35

Wheel Stud M12X1.5

250300625

$3.85

Washer M20

250200147

$12.91

Castle Nut M20

250100193

$6.66

Cotter Pin

250400071

$1.74

Polyurethane Hose 10000Mm Long

219704410

$46.12

Tie Wrap 368 mm

293750008

$0.85

Wheel Cap

705401841

$11.06

Front Tire Maxxis 28X9X14 | Model-North America, International

705402080

$216.89

Front Tire 29X9R14 | Model X3 Xds

705402081

$207.66

Tire Maxxis 30X10X14 | Model X3 Xrs

705402082

$304.58

Deep Black, Rim R14 X 7

705401965

$180.49

Deep Black, Rim R14 | Except Package STD

705403066

$239.97

Rim Valve With Cap

705400193

$6.69

Insert

293450360

$6.69

Black, Reinforcement Disk

705401709

$92.99

Gold, Reinforcement Disk | Model X3 Xrs Gold

705401913

$92.99

Black, Reinforcement Disk

705401709

$92.99

Flange Screw M8 X 25

250000893

$1.56

Valve Cap

293000110

$1.18

Black, Wheel Nut M12 X 1.50

250100196

$2.79

Hex. Flange Screw M8 X 45

207684586

$1.07

Hex. Elastic Flange Nut M8

233281416

$1.25
