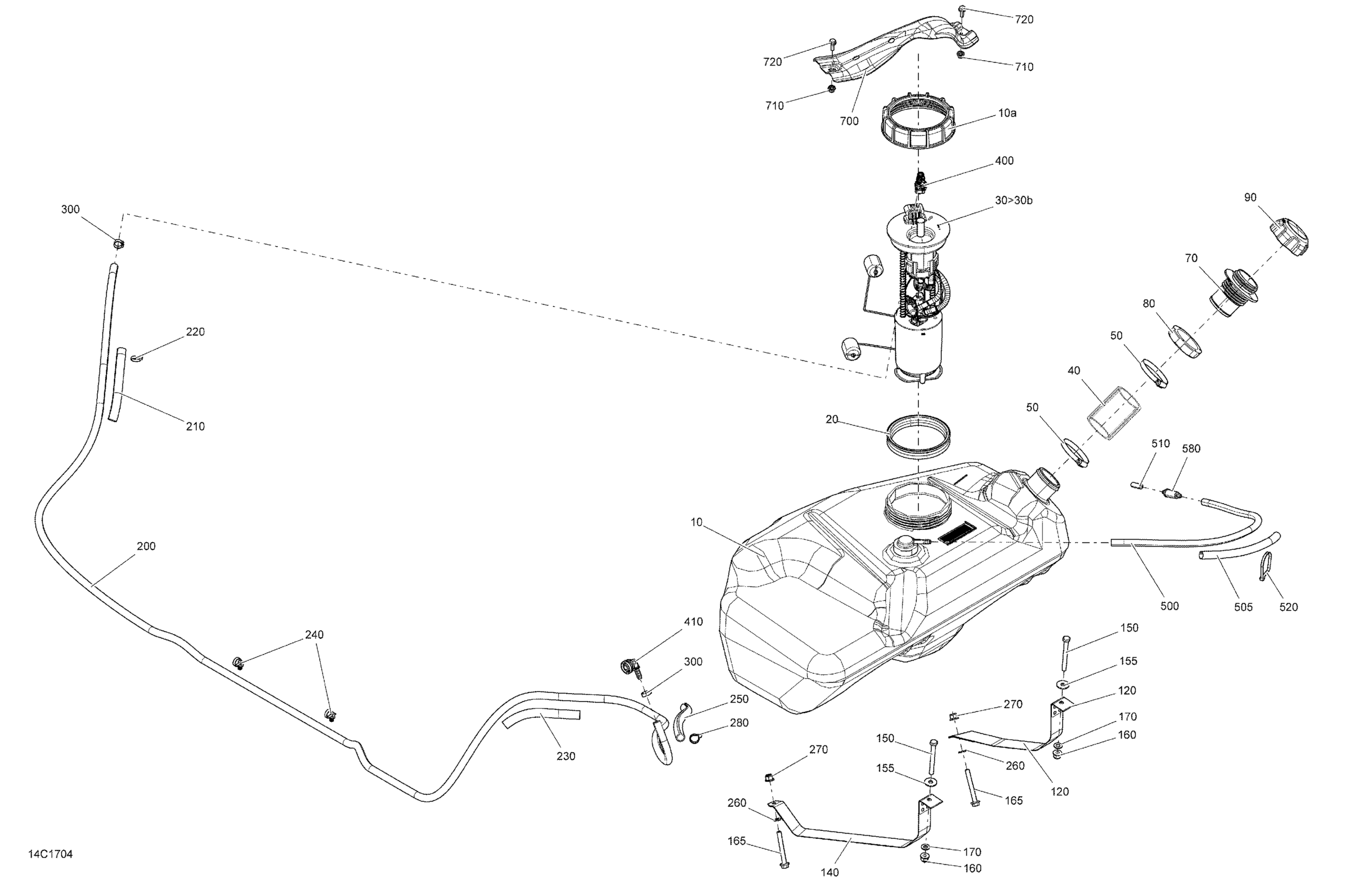

Can-Am Maverick X3 MAX, 2017 Fuel System Diagram

#

Description
Price

10

Fuel Tank | Includes 10 to 10c

709000706

$287.66

10a

Special Nut M130

250100062

$17.52

20

Gasket

293250173

$15.57

30>30b

Fuel Pump | Includes 30 to 30b

709001056

$349.97

30a

Fuel Filter

270600113

$27.27

30b

Fuel Sender

715900424

$138.43

40

Filler Neck

709000748

$32.28

50

Norma Clamp

293650081

$9.87

70

Filler Neck

709000725

$17.66

80

Filler Neck Nut, Fuel

211100012

$10.02

90

Fuel Cap

513033816

$32.28

120

Fuel Tank Strap

709000910

$41.51

140

Fuel Tank Strap

709000911

$41.51

150

Hex. Screw, M8 X 75

207187544

$0.89

155

Flat Washer 8 mm

234082410

$1.11

160

Hex. Flange Elastic Nut M8

233281414

$1.14

165

Hex. Flange Screw, M8 X 65

207686544

$9.74

170

Flat Washer 8 mm

234081410

$0.69

200

Hose

709000908

$108.43

210

Was 409901800 Tubing (13 mm)

219704400

$9.40

220

Tie-Rap 180 mm

414115200

$0.09

230

Was 409901800 Tubing (13 mm)

219704400

$9.40

240

Dart Tie Rap 200MM

710003168

$5.72

250

Was 409901800 Tubing (13 mm)

219704400

$9.40

260

Flat Washer 8 mm

234081410

$0.69

270

Hex. Flange Elastic Nut M8

233281414

$1.14

280

Tie-Rap 180 mm

414115200

$0.09

300

Crimp Clamp, 15.3-706R

293650047

$2.64

400

Quick Disconnect

275500921

$12.61

410

Elbow Fitting 90°

293710105

$10.58

500

Was 275500549 Hose 1/4"

219704357

$183.82

505

Tubing 10 MM 1000MM Long

219704407

$2.20

510

Polyurethane Hose 10000Mm Long

219704410

$46.12

520

Tie Wrap 368 mm

293750008

$0.85

580

Filter

709000330

$8.29

700

Connector Protector

707900594

$18.43

710

Threaded Insert M6 X 1.0

250100242

Unavailable

720

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56
