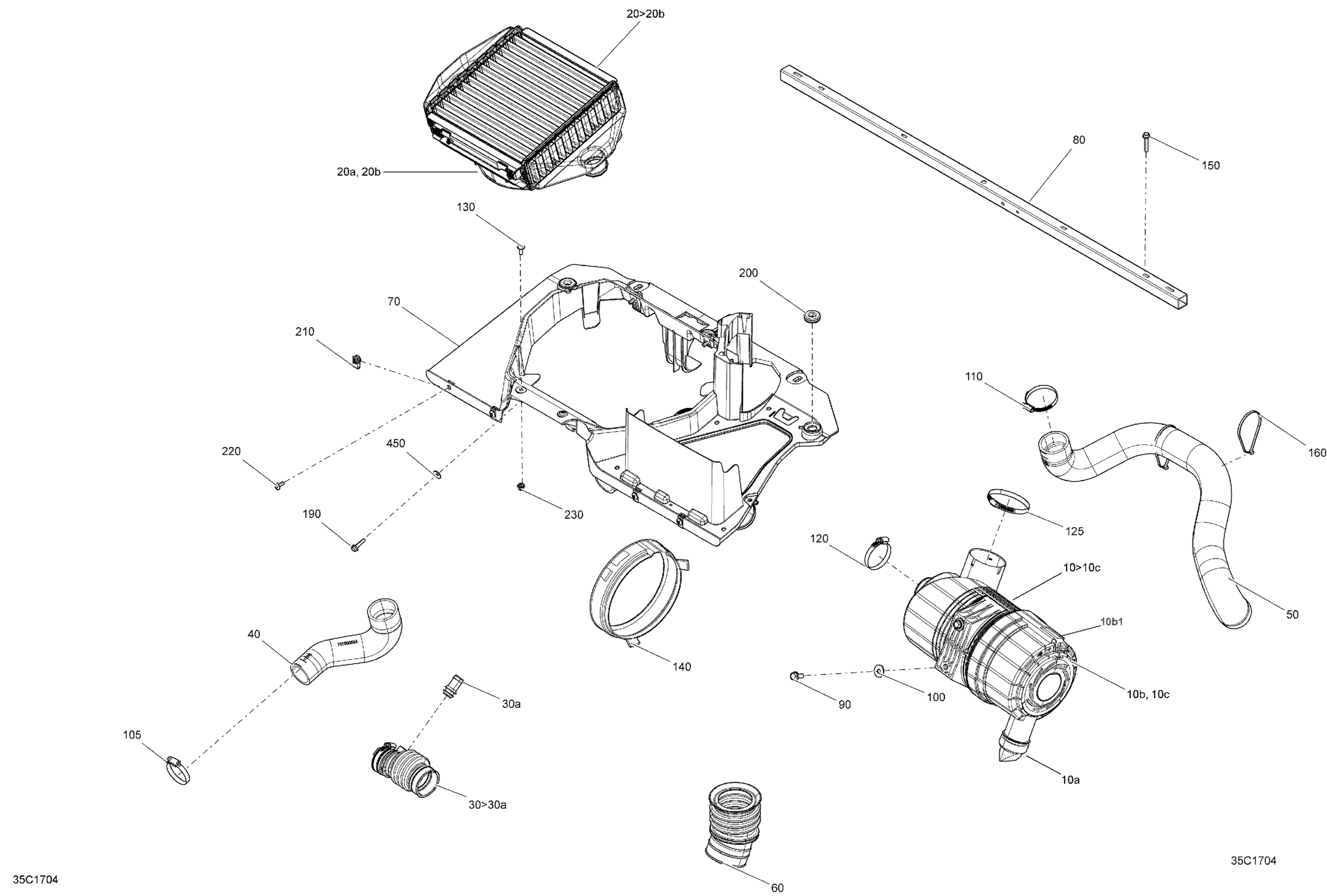

Can-Am Maverick X3 MAX, 2017 Air Intake Diagram

Airbox Ass'y | Includes 10 to 10c

707800667

$191.76

Duct Bill Valve

715003114

$12.09

Airbox Cover

715900421

$84.30

Air Filter

715900422

$49.22

INTERCOOLER ASSY - Call your local BRP dealership | Includes 20 à 20b

707800686

Unavailable

Intercooler

715900490

$46.24

FAN - Call your local BRP dealership

715900491

Unavailable

Air Intake Turbo | Includes 30 to 30a

707800693

$34.30

Breather Valve

273000234

$12.21

Air Intake Intercooler

707800683

$34.30

Air Intake Engine

707800685

$92.51

Air Intake Filter

707800687

$13.58

Radiator Support

707800691

$113.40

Square Tube

707801133

$49.22

Hex. Flange Screw M8 X 20

207682044

$1.06

Flat Washer 8 mm

234082410

$1.27

Norma Gear Clamp

293650090

$4.25

Norma Gear Clamp

293650118

$11.18

Norma Gear Clamp

293650090

$4.25

Norma Gear Clamp

514053074

Unavailable

Torx Head Screw M6 X 16

250000717

$2.00

Outside Seal

707002043

$20.12

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.00

Tie Wrap 368 mm

293750008

$0.97

Hex. Flange Screw M6 X 25

207562544

$1.60

Grommet

517303756

$3.61

Panel Nut M6 X 1.0

250100198

$1.99

Torx Truss Screw M6 X 16

250000721

$1.60

Threaded Insert M6 X 1.0

250100242

Unavailable

Flat Washer 6 mm

234062410

$0.73
