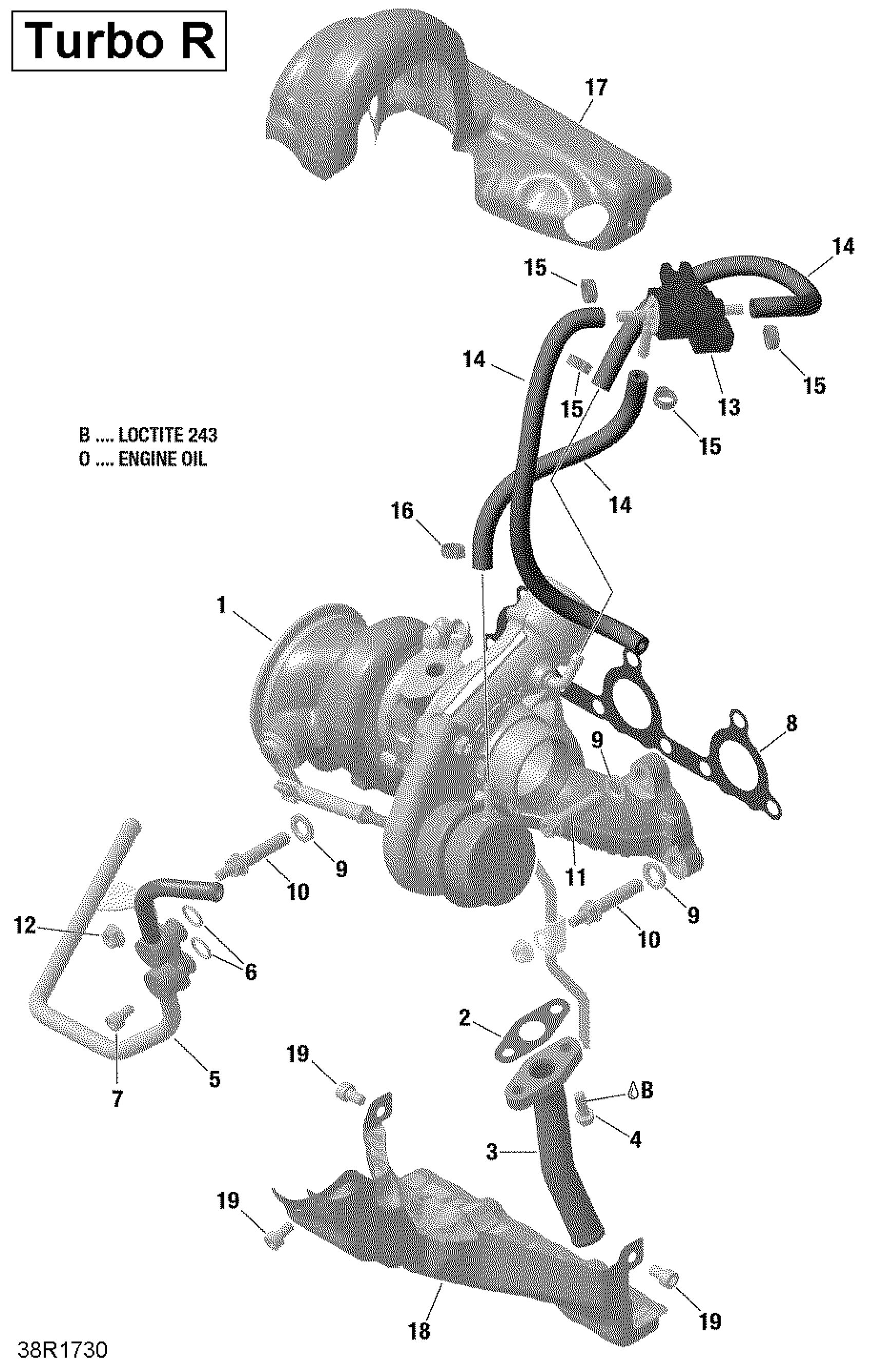

Can-Am Maverick X3 MAX, 2017 Turbocharger Diagram

#

Description
Price

1

Turbocharger Ass'y

420893730

Unavailable

2

Gasket | Included in gasket kit

420631205

$3.85

3

Oil Return Line

420456455

$59.20

4

Torx Flange Screw M6 X 16

420440164

$2.31

5

Water Cooling Tube

420822842

$152.28

6

O-Ring

420650928

$3.11

7

Allen Screw M6 X 10

420241081

$1.74

8

Gasket | Included in gasket kit

420431850

$15.19

9

Washer

420827521

$5.35

10

Collar Screw M8 X 35

420440693

$4.51

11

Torx Flange Screw M8 X 35

420641188

$6.11

12

Hex Nut M6-10

420842890

$2.31

13

Solenoid Valve

420664636

$120.74

14

Hose 640mm

420260283

$23.05

15

Gear Clamp

420851463

$7.37

16

Clamp 9.2-10.9 mm

420853133

$2.95

17

Upper Heat Shield

420975120

$216.89

18

Lower Heat Shield

420975125

$249.20

19

Allen Screw M6 X 10

420241081

$1.74
