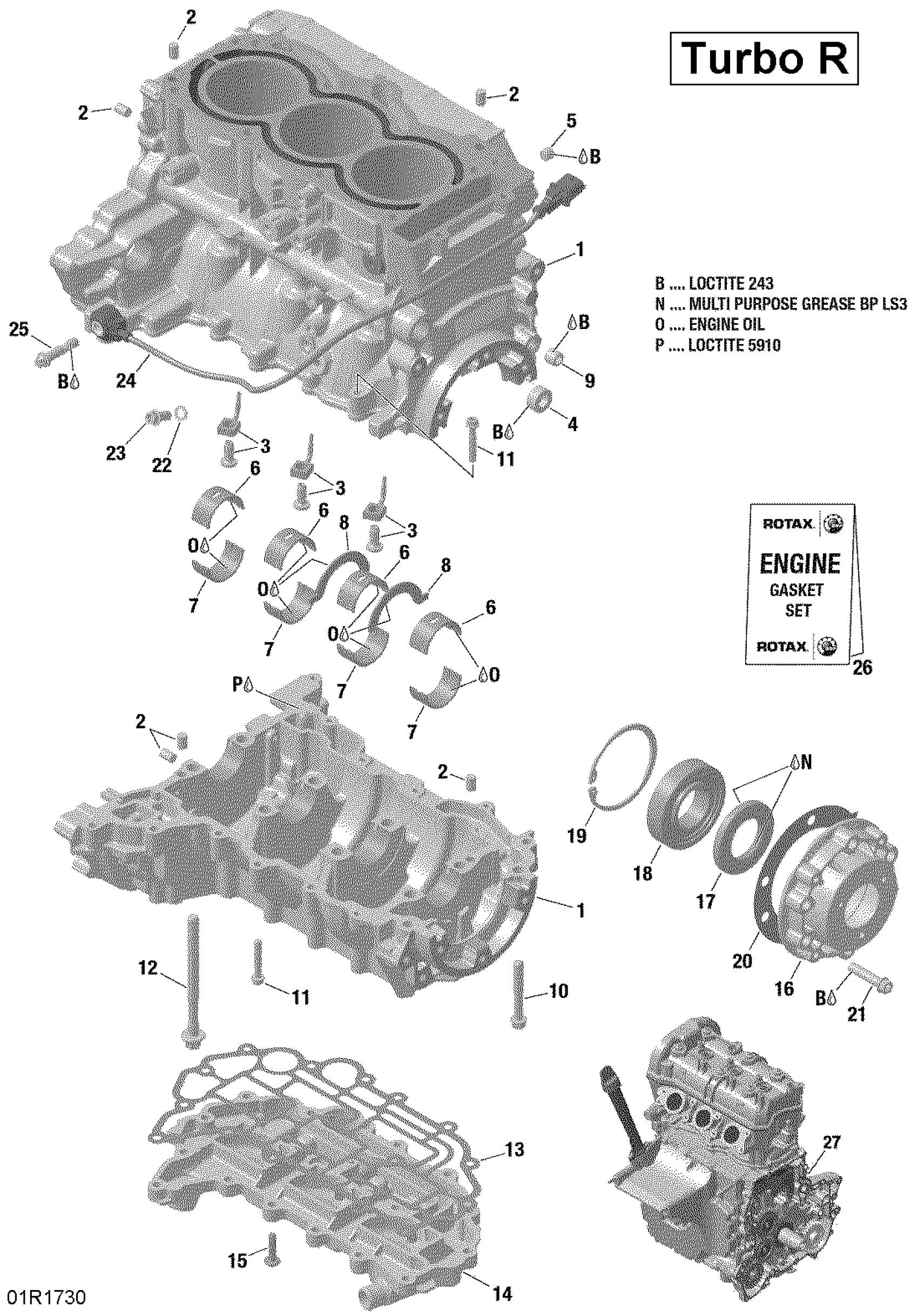

Can-Am Maverick X3 MAX, 2017 Crankcase Diagram

#

Description
Price

1>7

Engine Block | Includes no. 1-7

420893001

$2,153.70

2

Center Pin 8 X 12

420632010

$3.52

3

Oil Spray Nozzle

420656731

$16.39

4

Plug Screw M20 X 1.5

420641317

$12.15

5

Plug Screw M10 X 1

420641323

$13.18

6

Cushion

420933180

$16.39

7

Cushion

420933185

$17.13

8

Ring Half

420933140

$10.21

9

Threaded Pin

420840508

$17.13

10

Torx Flange Screw M8 X 55

420641213

$7.01

11

Torx Flange Screw M6 X 35

420440274

$0.96

12

Torx Flange Screw M9 X 113

420940945

$11.96

13

Gasket

420431820

$14.90

14

Oil Sump

420911504

$112.99

15

Torx Flange Screw M6 X 25

420841548

$5.04

16

PTO Cover

420212461

$162.66

17

PTO Cover Oil Seal | Included in gasket kit

420630153

$17.88

18

Roller Bearing

420232497

$52.96

19

Retaining Ring

420845790

$7.09

20

PTO Cover Gasket

420450080

$6.07

21

Torx Flange Screw M8 X 35

420440861

$3.07

22

Sealing Ring

420950142

$1.84

23

Torx Flange Screw M8 X 16

420440852

$3.88

24

Noise Sensor

420664031

$58.18

25

Torx Flange Screw M8 X 35

420641188

$7.01

26

Gasket Kit

420686232

$583.55

27

Long Block

420090350

$4,751.99
