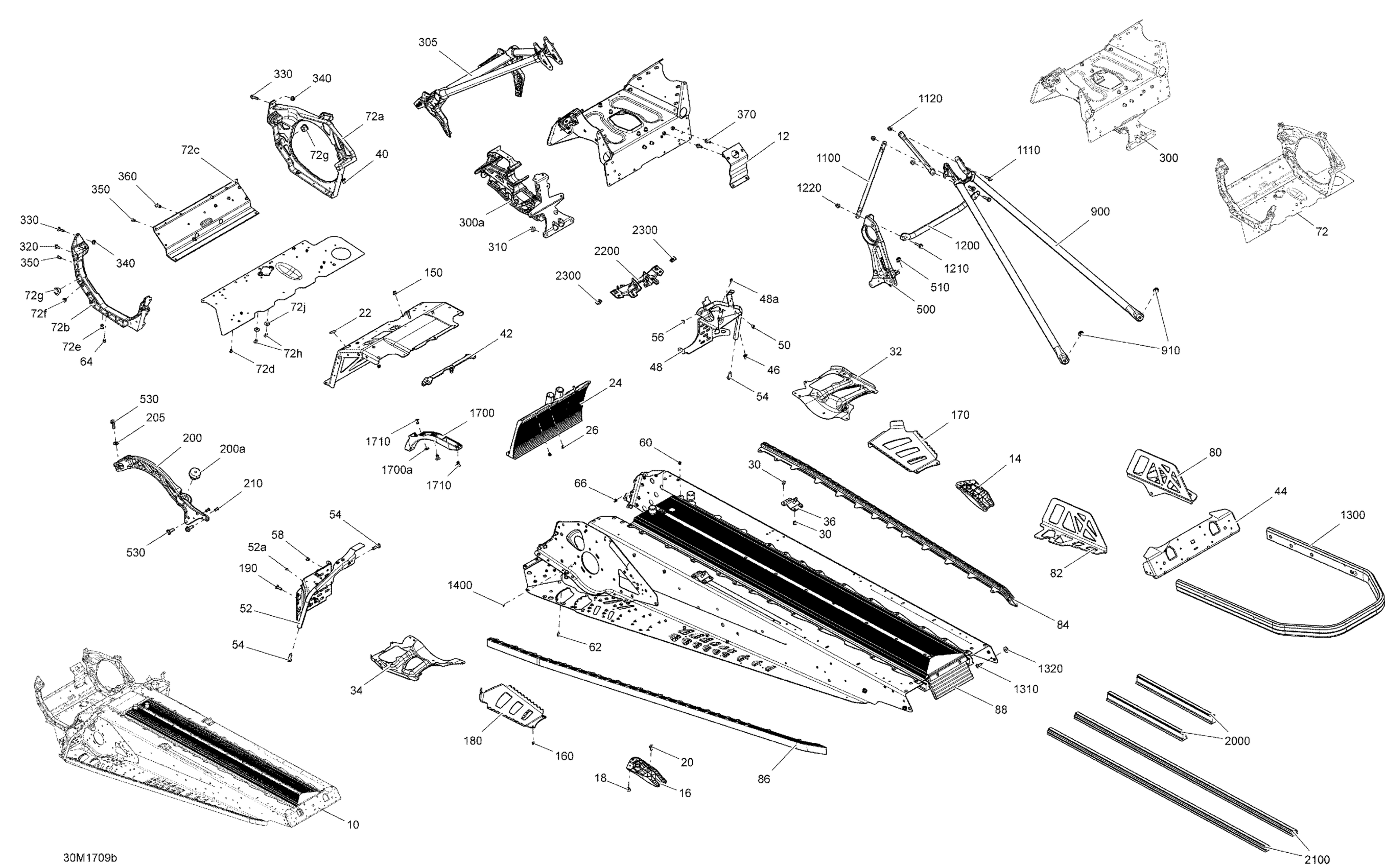

Ski-Doo GRAND TOURING 1200 4-TEC, 2018 Frame Grand Touring - 1200 4-TEC Diagram

FRAME - Call your local BRP dealership | Grand Touring This part replaces 415130115.

415130060

Unavailable

MAG Engine Support

518325371

$75.35

RH Deflector, Black Polypropylene

518325782

$11.77

LH Deflector, Black Polypropylene

518325783

$11.77

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Adhesive Patch

518325560

$4.34

Front Radiator Ass'y | Includes 10a to 10b

518327907

$517.66

Rivet Avibulb 3/16

293150203

$0.29

Hemlock Rivet, 6.4 mm

293150174

$6.43

RH Reinforcement, Running Board

518326937

$25.35

LH Reinforcement, Running Board

518326938

$25.35

RH Rear Base

518325973

$18.43

LH Rear Base | Includes 10v to 10x

518325974

$18.43

Insert

293450275

$9.89

Seal

518326656

$8.43

Rear Cap

518327105

$20.74

Insert

293450275

$9.89

RH Stirup | Includes 10p to 10q

518328942

$166.12

Avex Rivet

390909200

$0.29

Insert M5 X 0.8

293450268

$1.95

LH Stirup | Includes 10s to 10t

518328528

$166.12

Avex Rivet

390909200

$0.29

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

Full Moon Dart 5 mm

293730042

$2.12

Insert M5 X 0.8

293450268

$1.95

Rivet Avibulb 3/16

293150203

$0.29

Avex Rivet

390909100

$0.29

Stavex Rivet

293150144

$0.77

Henrob Rivet

293150146

$1.92

Module E

518328947

$907.66

RH Side Member

518326328

$259.97

LH Side Member

518326330

$259.97

Front Member

518326198

$59.97

Stavex Rivet

293150144

$0.77

Hemlock Rivet 6.5 mm

293150120

$7.23

Hemlock Rivet, 6.5 mm

293150119

$4.00

Leg Cushion

505073317

$5.92

Torx Truss Screw M6 X 10

250000349

$7.31

Flat Washer 6 mm

234062410

$0.64

RH SUSPENSION BRACKET - Call your local BRP dealership

518327858

Unavailable

LH Suspension Bracket

518327859

$75.35

RH Roller

518327093

$76.99

LH Roller

518328429

$175.35

Rear Radiator Ass'y, 137" | SPORT

518326641

$699.97

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Rivet 3/16"

293150102

$0.71

RH. Footrest | Package SE

518327812

Unavailable

LH. Footrest | Package SE

518327813

$36.89

Hex. Flange Screw M6 X 20

207662044

$1.66

Brace Ass'y | Includes 200 to 200a

518327392

$185.35

Vibration Damper

512061516

$57.66

Conical Spring Washer M8

234281474

$1.25

Pop Rivet 3/16”

390407200

$0.66

Cross Member S Module | Includes 300a to 300b

518328320

$459.20

Front Suspension Support

518327487

$267.66

Front Member

518327565

$316.12

Hex. Flange Elastic Nut M8

233281414

$1.14

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Monobolt Rivet, 4.8 mm

293150191

$0.95

Monobolt Rivet 6.4

293150182

$2.91

Hex. Flange Screw M6 X 16

207661644

$0.61

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M8 X 25, Nylon

250000351

$1.74

Rear Member

518326559

$244.58

Hex. Flange Elastic Nut M8

233281414

$1.14

Upper Lateral Column Support

518325114

$20.74

Hex. Flange Screw M6 X 20

207662044

$1.66

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Center Column Support

518326657

$18.43

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

REAR BUMPER - Call your local BRP dealership | Package SE

518325850

Unavailable

BLACK REAR BUMPER - Call your local BRP dealership

518327401

Unavailable

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

Flat Washer

224061201

$1.11

Black, Dart 8 mm

293730047

$2.14

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.66

Washer

517124300

$0.16

Pop Rivet 3/16”

293150108

$1.23

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

Sub A Support

518327145

$79.20

Panel Nut M5 X 0.8

250000958

$3.48
