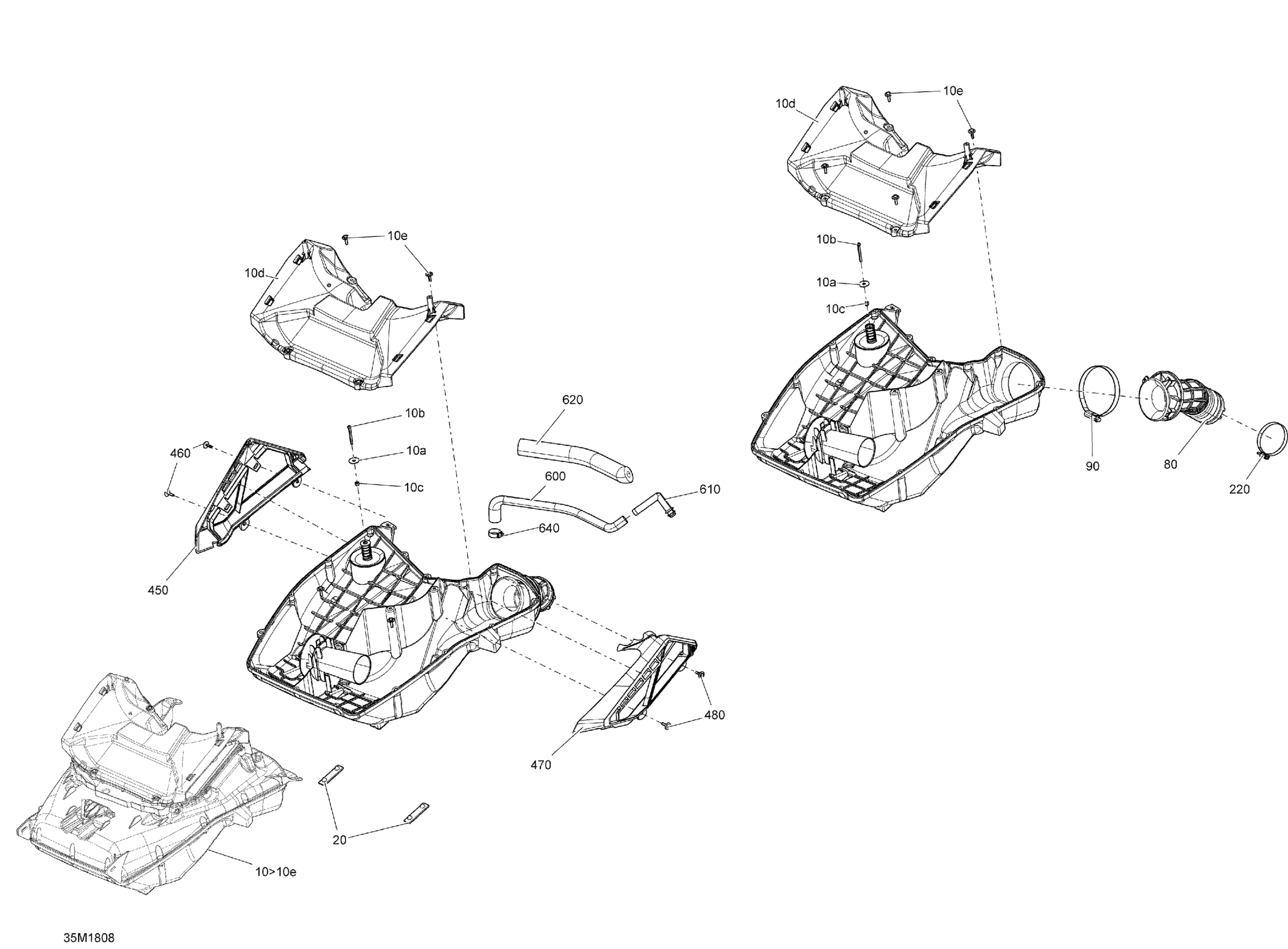

Ski-Doo GRAND TOURING 1200 4-TEC, 2018 Air Intake - 1200 4-TEC Diagram

Description

Price

10>10e

Secondary Chamber Ass'y | Includes 10 to 10e

508000747

$199.99

10a

Flat Washer

224060201

$1.26

10b

Socket Head Screw M4 X 40

205444056

$2.11

10c

Elastic Stop Nut M4

232541414

$0.58

10d

Air Duct

508000732

$48.99

10e

Screw M4 X 16

250000725

$3.49

Stopper

508000744

$2.19

Intake Hose | Engine 1200 4-TEC

508000791

$44.99

Norma Clamp

514052924

$14.22

220

Gemi Clamp

293650229

$11.60

450

RH Air Filter

508000730

$42.49

460

Screw M4 X 16

250000725

$3.49

470

LH Air Filter

508000731

$42.49

480

Screw M4 X 16

250000725

$3.49

600

Fan Hose

508000792

$25.99

610

Breather

508000811

$14.49

620

Insulating Tube | Engine 1200 4-TEC

508000582

$15.99

640

Tridon Gear Clamp

293650172

$3.09
